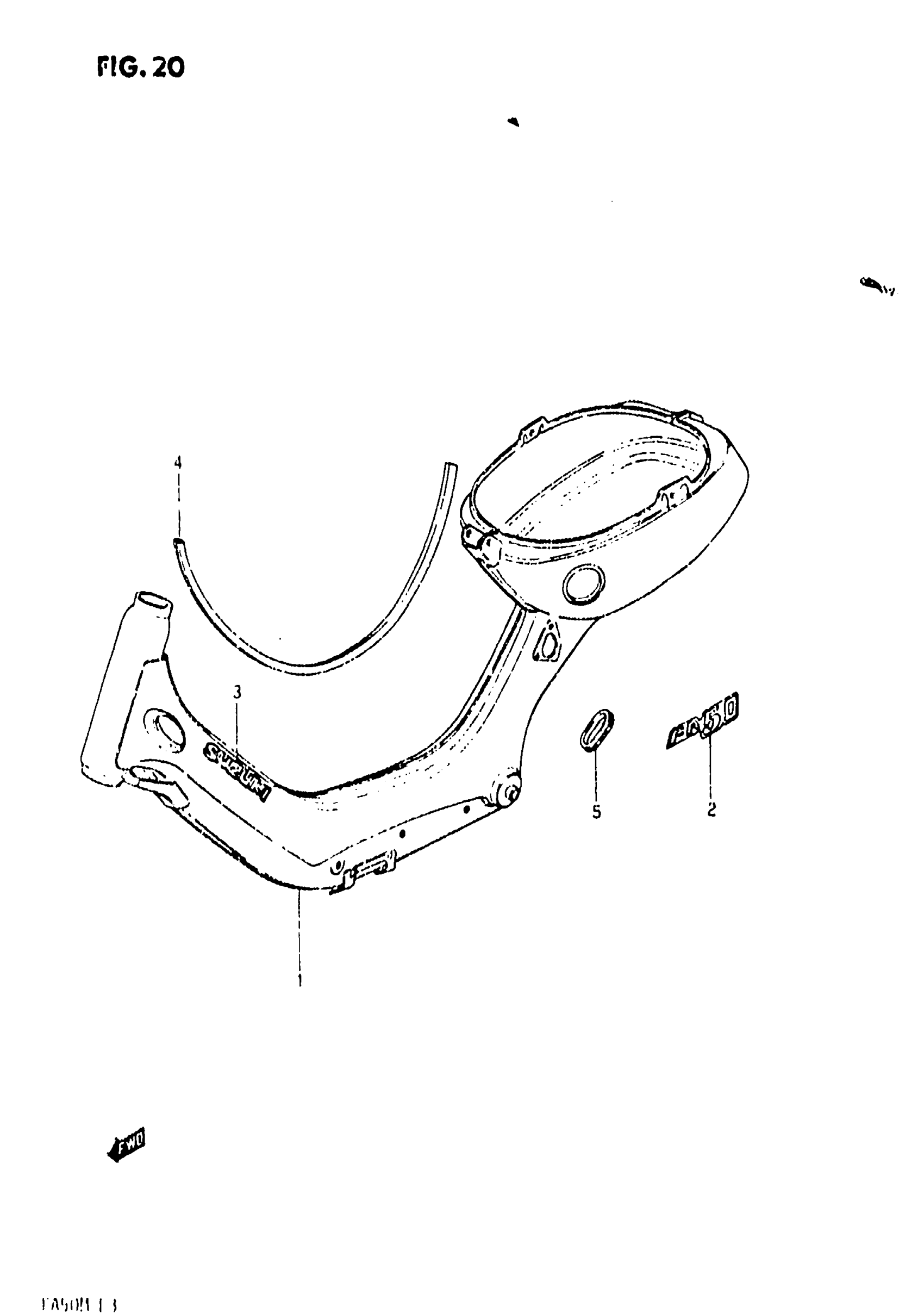

Suzuki FA50 (1991) FRAME (MODEL D/E/F/G) Diagram

#

Description

Price

1

FRAME (YELLOW) | MODEL D/F/G

41100-02230-163

Unavailable

1

FRAME (RED)

41100-02230-14C

Unavailable

1

FRAME (BLUE)

41100-02230-08Y

Unavailable

2

EMBLEM, REAR | FOR 163 This part replaces 68111-02230-65H.

68111-02240-66P

Unavailable

2

EMBLEM, REAR | FOR 08Y, 14C This part replaces 68111-02230-538.

68111-02240-66P

Unavailable

3

EMBLEM, FRONT

68111-46200-538

Unavailable

4

MOLD, FRAME

41951-02200

Unavailable

5

GROMMET

09308-30003

Unavailable
