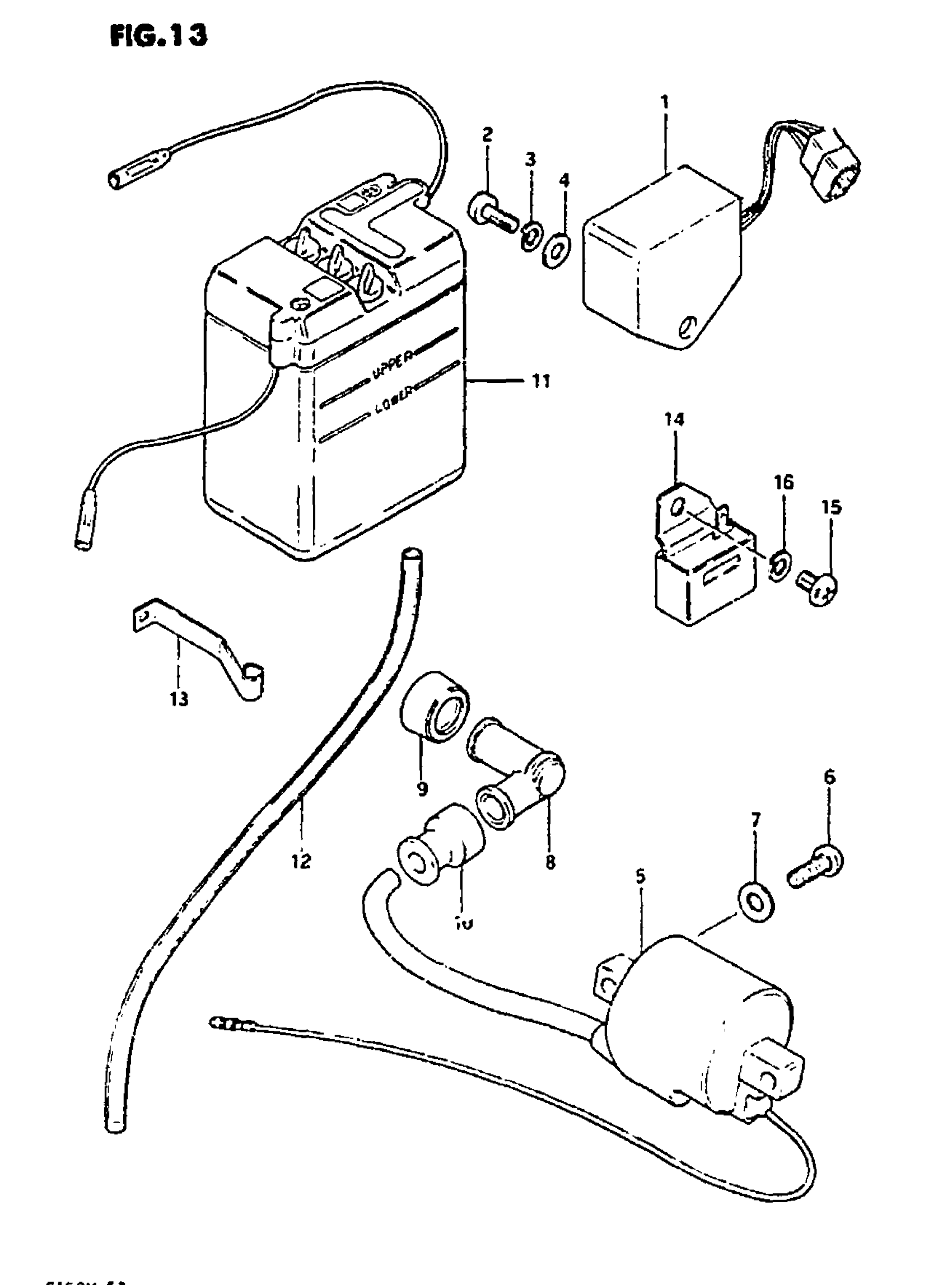

Suzuki FA50 (1991) ELECTRICAL Diagram

#

Description
Price

1

C.D.I. UNIT

32900-02220

Unavailable

2

SCREW This part replaces 02112-05128.

02112-05127

$1.97

3

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

4

WASHER This part replaces 08322-21057.

08322-01057

$2.13

5

COIL ASSY, IGNITION This part replaces 33410-02220.

33410-02221

$121.55

6

SCREW This part replaces 02112-05168.

02112-05167

$1.97

7

WASHER This part replaces 08322-21057.

08322-01057

$2.13

8

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.73

9

SEAL, SPARK PLUG

33541-69010

$4.37

10

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

11

NO DESCRIPTION AVAILABLE This part replaces 33610-04640.

33610-04021

Unavailable

12

HOSE

33680-02200

Unavailable

13

CLAMP

33681-02500

Unavailable

14

REGULATOR, VOLTAGE

32500-02211

Unavailable

15

SCREW This part replaces 02112-06128.

02112-06127

$1.84

16

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13
