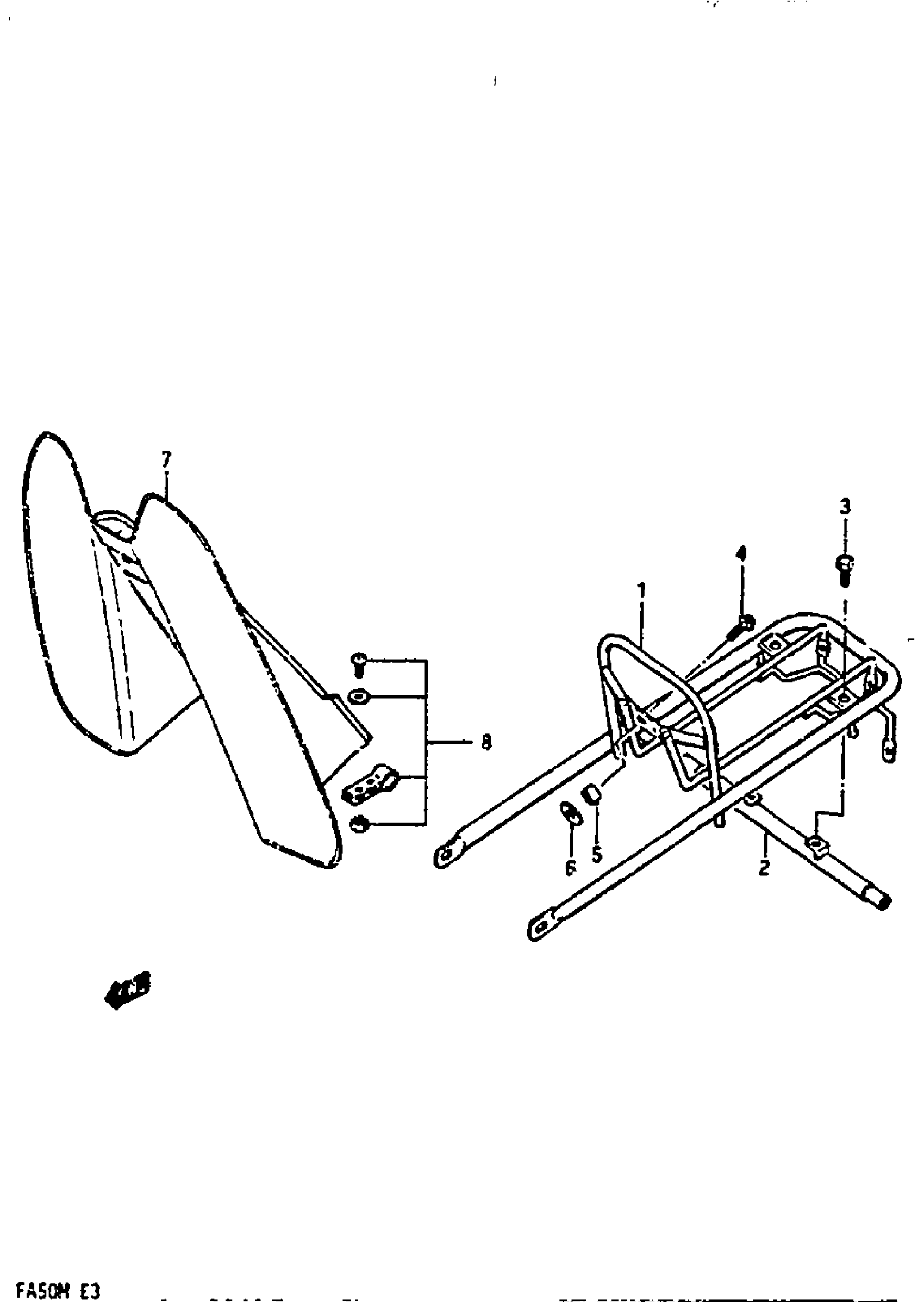

Suzuki FA50 (1991) CARRIER Diagram

#

Description
Price

1

CARRIER, REAR | MODEL Z/D This part replaces 46310-02213.

46310-02214

Unavailable

1

CARRIER, REAR | MODEL E/F/G/H/J/K/L/M

46310-02214

Unavailable

2

TUBE | MODEL Z/D This part replaces 46350-02210.

46350-02212

Unavailable

2

TUBE | MODEL E/F/G This part replaces 46350-02211.

46350-02212

Unavailable

2

TUBE | MODEL H/J/K/L/M

46350-02212

Unavailable

3

BOLT This part replaces 01107-06107.

01500-06107

$2.06

4

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

$2.69

5

SPACER,8.5X14X9 This part replaces 09180-08075.

09180-08200

$2.97

6

WASHER This part replaces 09160-08051.

09160-08130

$2.03

7

LEG SHIELD (WHITE) | OPT

48111-02200-189

Unavailable

8

FITTINGS, LEG SHIELD | OPT

48200-02810

Unavailable
