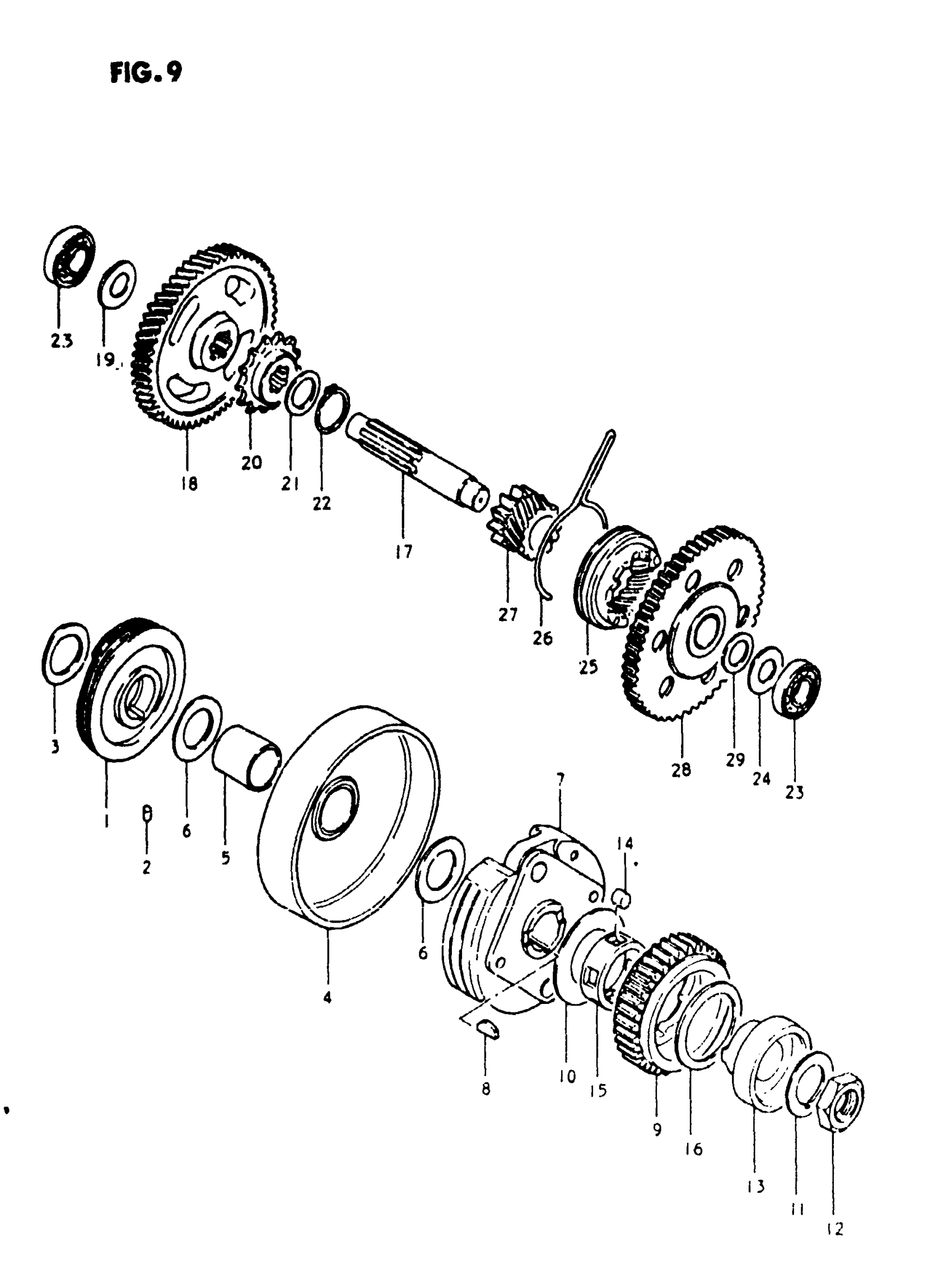

Suzuki FA50 (1981) TRANSMISSION Diagram

#

Description
Price

1

GEAR, OIL PUMP DRIVE (NT:2)

16321-02302

Unavailable

2

PIN This part replaces 06211-04063.

04221-04069

$2.12

3

WASHER

09164-20004

$4.77

4

GEAR, PRIMARY DRIVE

21110-02400

Unavailable

5

SPACER

09180-16016

Unavailable

6

WASHER

08211-16262

$2.53

7

CLUTCH

21500-02320

Unavailable

8

KEY

08341-31039

$1.89

9

GEAR, PRIMARY DRIVE (NT:35) This part replaces 21112-02321.

21110-02321

Unavailable

10

WASHER

09160-24018

Unavailable

11

LOCK WASHER

09164-16002

$3.16

12

NUT This part replaces 09140-16001.

09140-16005

$3.75

13

NO DESCRIPTION AVAILABLE This part replaces 21631-02321.

21631-02322

Unavailable

14

ROLLER

09261-06002

$1.53

15

RETAINER

21652-04001

Unavailable

16

WASHER

09160-31004

Unavailable

17

COUNTERSHAFT

24121-02304

Unavailable

18

GEAR, PRIMARY DRIVEN

21211-02302

Unavailable

19

WASHER

08211-12223

$2.12

20

NO DESCRIPTION AVAILABLE This part replaces 24171-02401.

24171-02402

Unavailable

21

WASHER, SUB T/M IDLE, LH This part replaces 08211-15261.

09181-15195

$2.57

22

CIRCLIP This part replaces 08331-31159.

08331-3115A

$2.25

23

BEARING

09262-12001

$18.47

24

WASHER, LH

08211-12241

$2.06

25

STARTER,KICK This part replaces 26231-02301.

26231-02302

Unavailable

26

RETAINER SPRING

26234-02300

Unavailable

27

GEAR, KICK IDLE (NT:12/13)

26261-02302

Unavailable

28

GEAR, KICK DRIVEN (NT:62)

26280-02310

Unavailable
