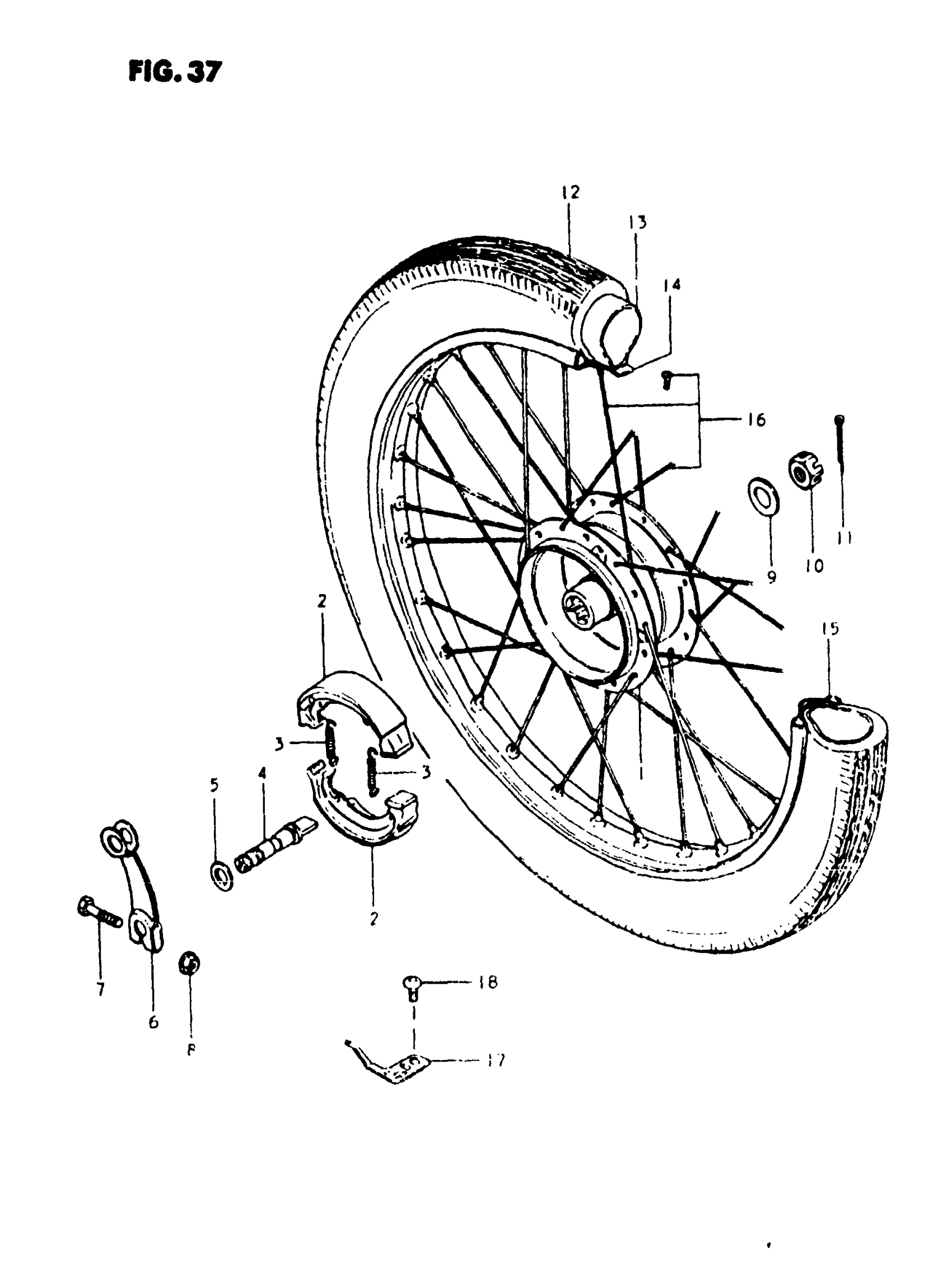

Suzuki FA50 (1981) REAR WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | 4349 This part replaces 64110-02200.

64110-02202

Unavailable

1

NO DESCRIPTION AVAILABLE | 50~ This part replaces 64110-02201.

64110-02202

Unavailable

2

SHOE SET,BRAKE This part replaces 54410-02310.

54400-02820

Unavailable

3

SPRING

09443-06029

$2.44

4

CAM, REAR BRAKE

64441-02200

Unavailable

5

WASHER This part replaces 08322-11108.

08322-01107

$2.15

6

LEVER, REAR BRAKE CAM This part replaces 64451-02300.

64451-02301

Unavailable

6

LEVER, REAR BRAKE CAM

64451-02301

Unavailable

7

BOLT This part replaces 09100-05003.

01500-0525A

$1.77

8

NUT This part replaces 08316-16058.

08316-1005A

$2.19

9

WASHER This part replaces 08322-11128.

08322-01127

$1.84

10

NUT This part replaces 08314-41128.

08314-4012A

$2.50

11

PIN This part replaces 04111-30308.

04111-3030A

$1.49

12

TIRE (2.25-14)

55100-02210

$45.28

13

TUBE,INNER This part replaces 55200-02210.

55200-46411

$17.96

14

PROTECTOR, WHEEL INNER TUBE This part replaces 55261-02200.

55261-09D00

$4.70

15

RIM, WHEEL (1.20x14) | 349 This part replaces 55311-02200.

55311-02201

Unavailable

15

RIM, WHEEL (1.20x14) | 50~

55311-02201

Unavailable

16

SPOKE SET | 349 This part replaces 55320-02200.

55320-02202

Unavailable

16

SPOKE SET | 50~ This part replaces 55320-02201.

55320-02202

Unavailable

17

PLATE, INDICATOR

64492-02200

Unavailable
