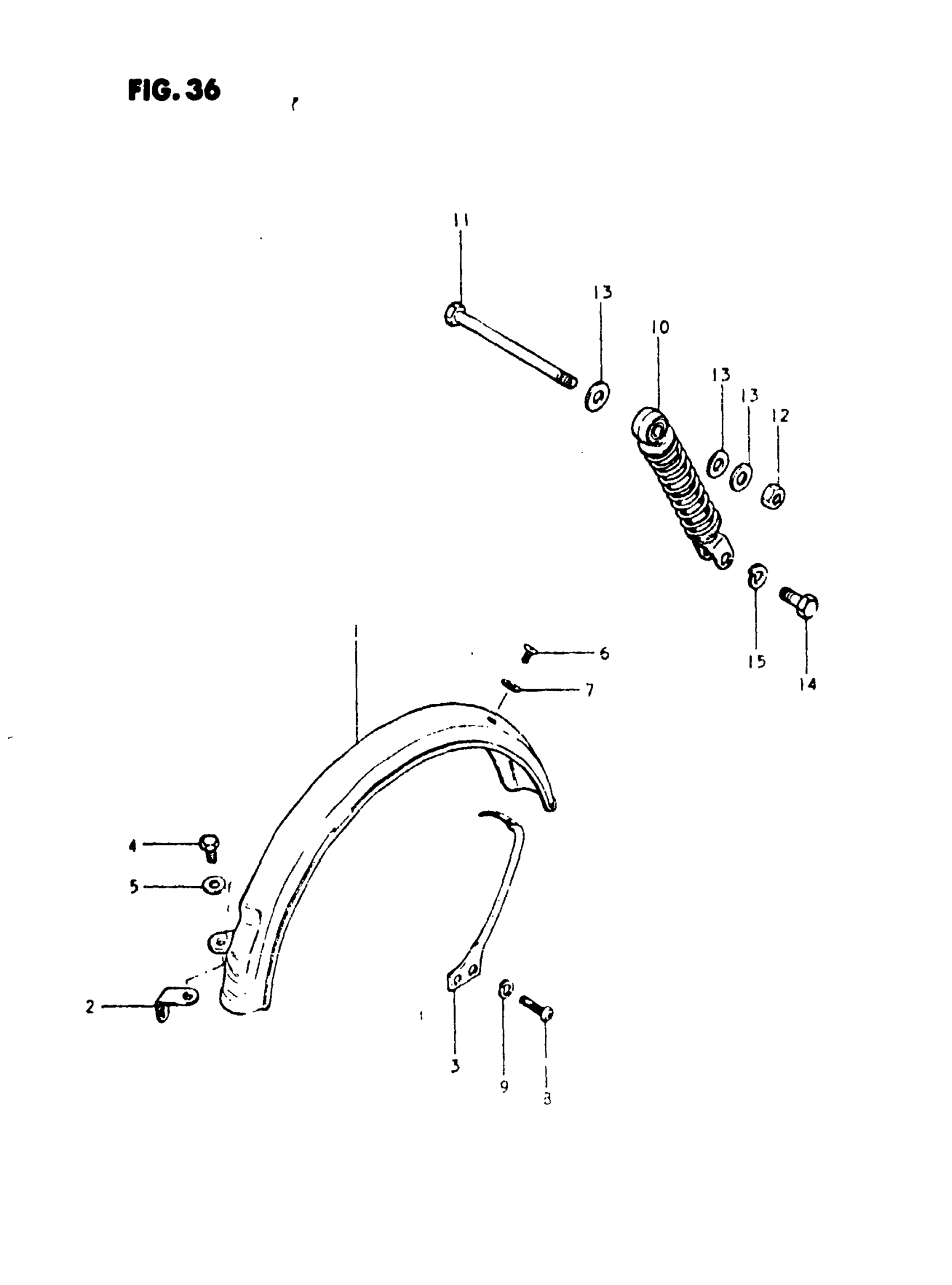

Suzuki FA50 (1981) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (WHITE)

63111-02200-189

Unavailable

2

BRACE, FRONT This part replaces 63140-02200.

63140-02201

$8.08

3

BRACE, REAR

63220-02200

Unavailable

4

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

5

WASHER This part replaces 09160-06007.

09160-06084

$1.78

6

SCREW This part replaces 02112-05108.

02112-05107

$1.49

7

WASHER This part replaces 08322-21058.

08322-01057

$2.13

8

SCREW This part replaces 02112-06168.

02112-06167

$1.49

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

NO DESCRIPTION AVAILABLE | 349 This part replaces 62100-02200.

62100-02204

Unavailable

10

NO DESCRIPTION AVAILABLE | 50~ This part replaces 62100-02201.

62100-02204

Unavailable

11

SHAT,RR SHK ABS This part replaces 62311-19600.

62311-19602

$14.67

12

NUT UPPER

09140-10012

$2.00

13

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

14

BOLT, LOWER This part replaces 09100-10107.

09117-10017

$3.27
