Description

Price

1

LAMP ASSY,RR CO This part replaces 35710-02230.

35710-44B10-999

Unavailable

1

LAMP ASSY,RR CO | Includes Item(s) 2 - 6 This part replaces 35710-02231.

35710-44B10-999

Unavailable

2

LENS

35712-48510

$65.02

3

GASKET

35713-48510

$6.17

4

SCREW

03211-04306

$1.78

5

GASKET

35627-43010

$2.28

6

BULB (6V,21/3CP)

09471-06009

$3.99

7

BRACKET

35927-02230

Unavailable

8

BOLT This part replaces 01107-05168.

01500-0516B

$2.15

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

REFLEX REFLECTOR, FRONT

35950-45010

$17.09

11

NUT This part replaces 08310-11058.

08310-00057

$1.84

12

WASHER This part replaces 08322-21058.

08322-01057

$2.13

13

REFLEX REFLECTOR ASSY, REAR This part replaces 35970-02230.

35970-44A00

Unavailable

14

WASHER This part replaces 08322-21058.

08322-01057

$2.13

15

NUT This part replaces 08310-11058.

08310-00057

$1.84

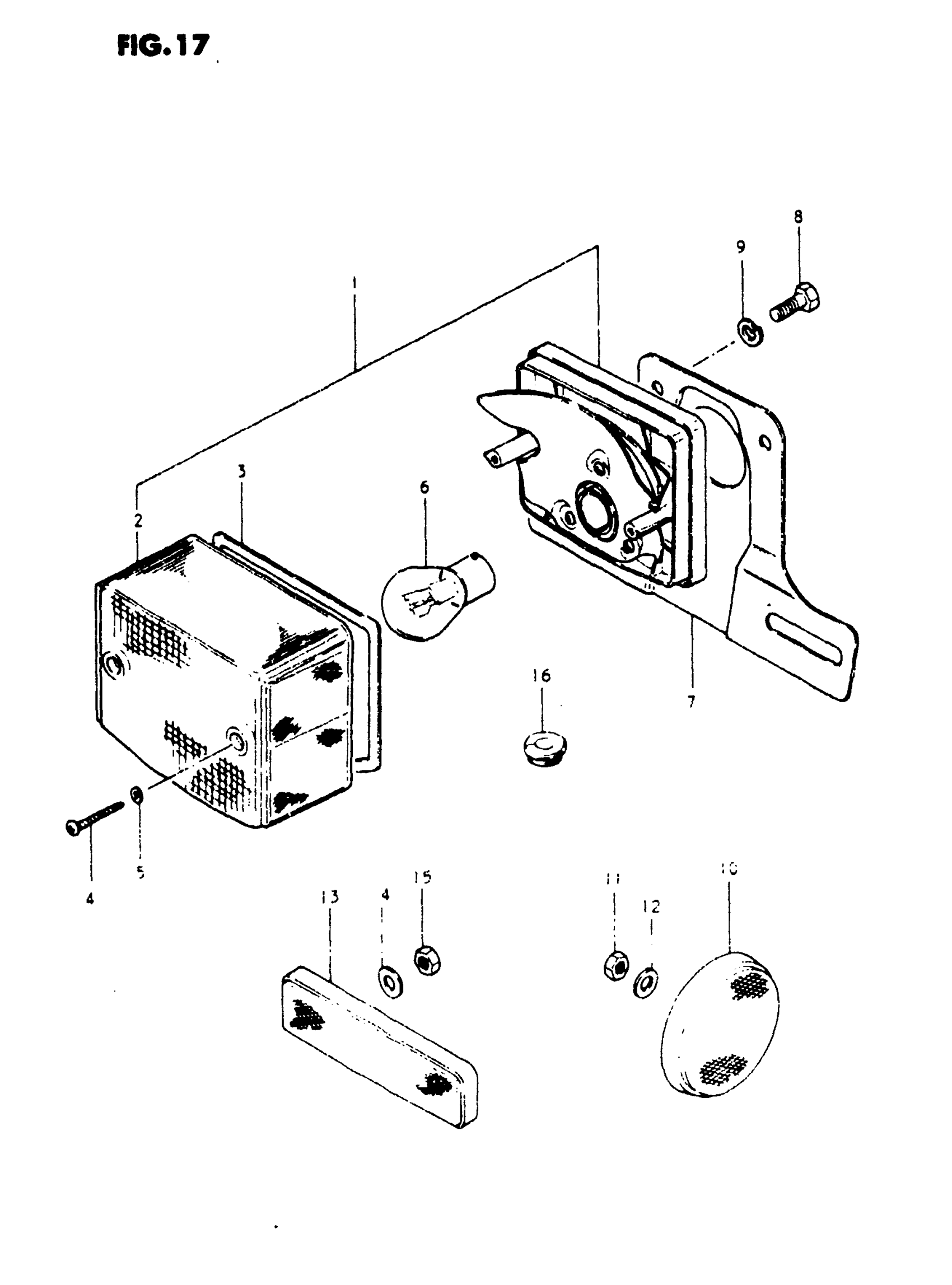

Suzuki FA50 (1981) REAR COMBINATION LAMP Diagram

LAMP ASSY,RR CO This part replaces 35710-02230.

LAMP ASSY,RR CO | Includes Item(s) 2 - 6 This part replaces 35710-02231.

LENS

GASKET

SCREW

GASKET

BULB (6V,21/3CP)

BRACKET

BOLT This part replaces 01107-05168.

LOCK WASHER This part replaces 08321-21058.

REFLEX REFLECTOR, FRONT

NUT This part replaces 08310-11058.

WASHER This part replaces 08322-21058.

REFLEX REFLECTOR ASSY, REAR This part replaces 35970-02230.

WASHER This part replaces 08322-21058.

NUT This part replaces 08310-11058.
