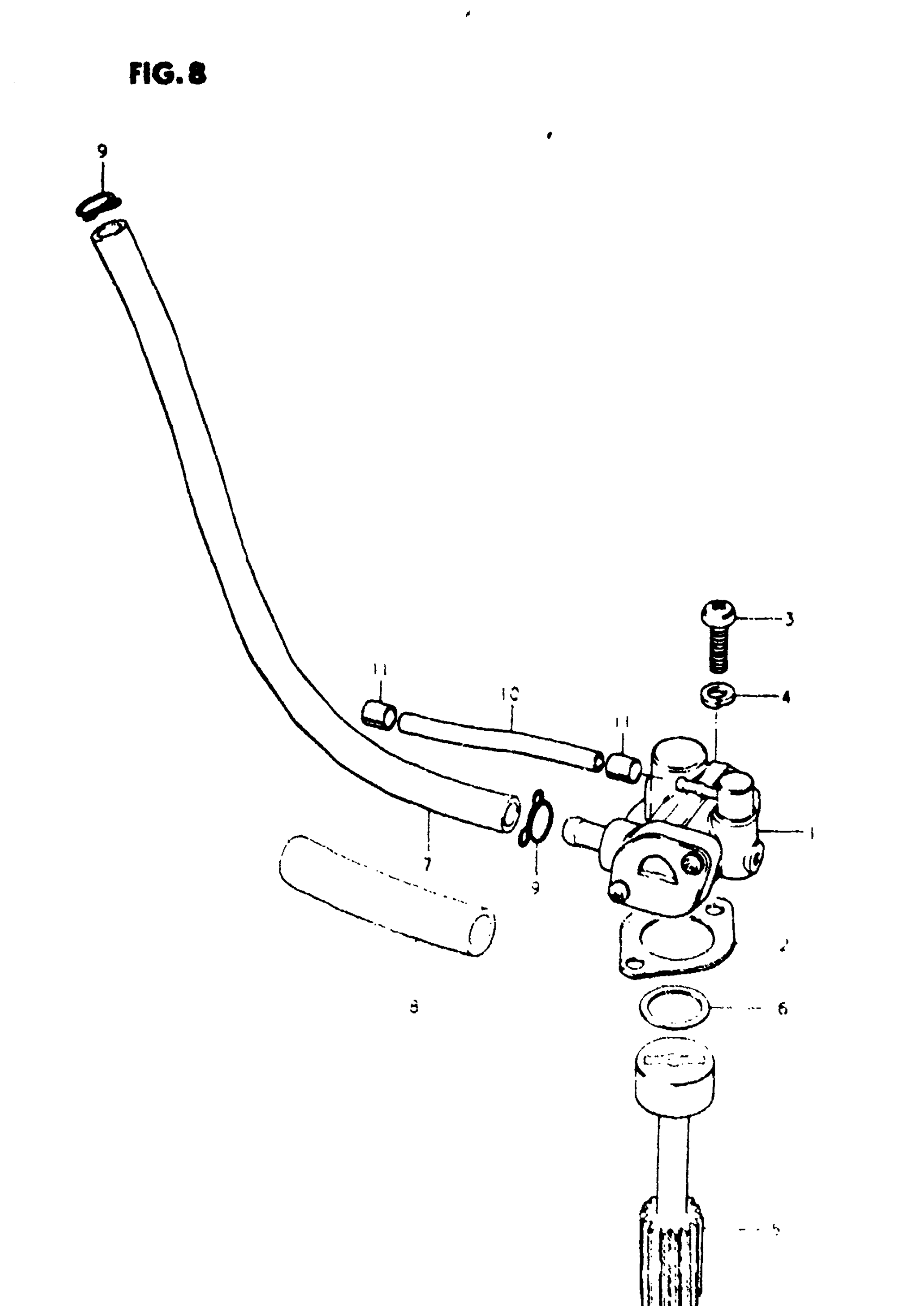

Suzuki FA50 (1981) OIL PUMP Diagram

#

Description

Price

1

PUMP, OIL

16100-02330

Unavailable

2

GASKET

16731-02300

$2.81

3

SCREW This part replaces 02112-05168.

02112-05167

$1.97

4

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

5

GEAR, DRIVEN (NT:14) This part replaces 16331-02302.

16331-02303

Unavailable

6

WASHER

08212-16202

Unavailable

7

HOSE(4.5X8.5X60 This part replaces 09343-04025.

09355-45001-600

$9.48

8

GUIDE, HOSE (11X9X80)

09344-09024

Unavailable

9

CLAMP

09401-08401

$1.54

10

HOSE(2X5X600) This part replaces 09343-02018.

09352-20504-600

$6.70
