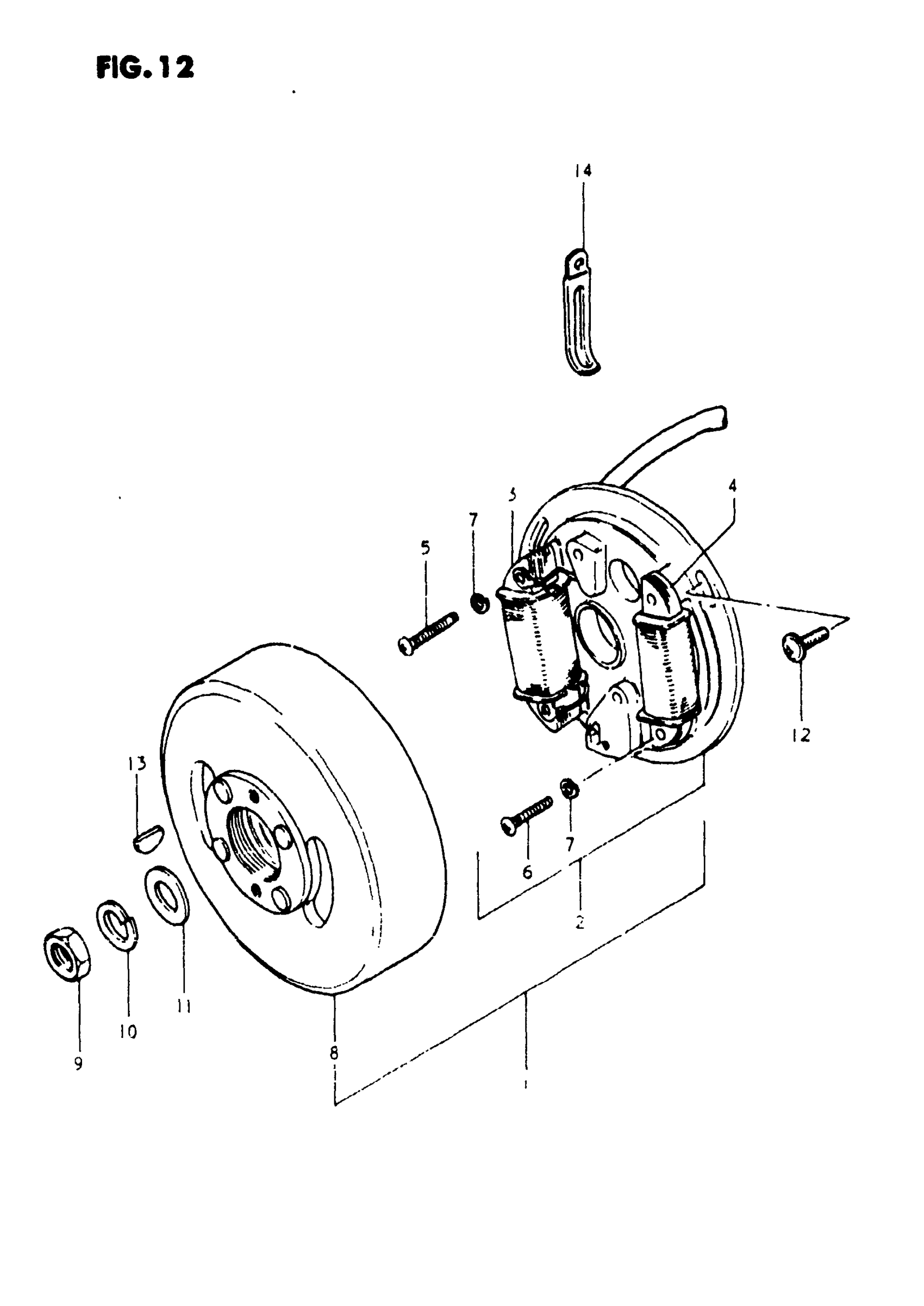

Suzuki FA50 (1981) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | Includes Item(s) 2 - 8 This part replaces 32100-02220.

32101-02220

Unavailable

2

STATER ASSY

32101-02220

Unavailable

3

COIL, LIGHTING

32120-02220

Unavailable

4

COIL, PRIMARY

32140-02220

Unavailable

5

SCREW This part replaces 02112-04258.

02112-0425B

$2.34

6

SCREW This part replaces 02112-04208.

02112-0420A

$1.49

7

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

8

ROTOR

32102-02220

Unavailable

9

NUT This part replaces 08310-11108.

08310-00107

$2.19

10

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

11

WASHER This part replaces 08322-21108.

08322-01107

$2.15

12

SCREW

09139-05011

$2.38

13

KEY

08341-31039

$1.89
