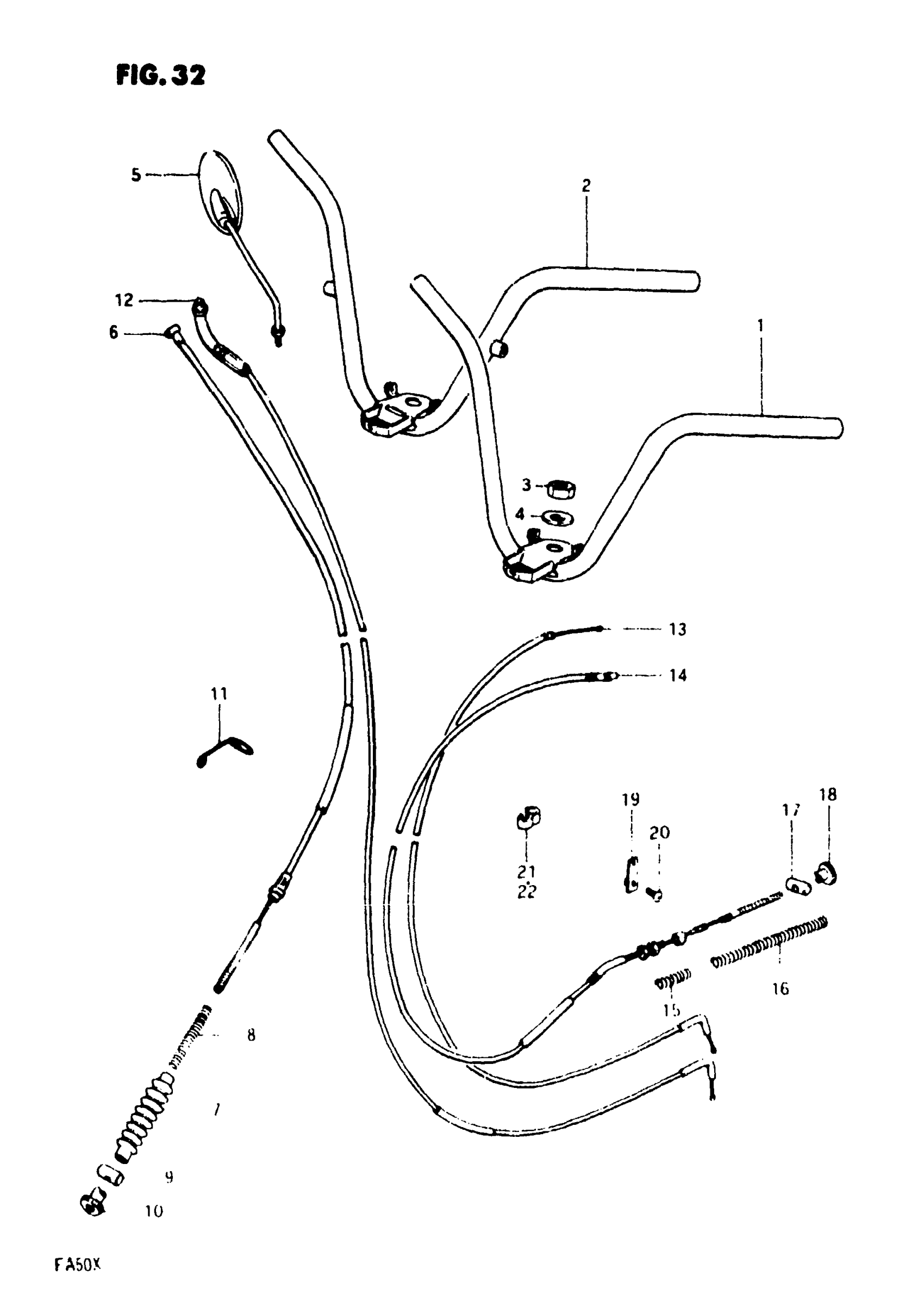

Suzuki FA50 (1981) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56110-02200

Unavailable

2

HANDLEBAR | 50X

56110-02210

Unavailable

3

NUT

09140-25001

Unavailable

4

WASHER

09160-26013

Unavailable

5

MIRROR ASSY,RH This part replaces 56500-02300.

56500-02301

Unavailable

6

CABLE, FRONT BRAKE | Includes Item(s) 7 - 10

58100-02200

Unavailable

7

DUST SEAL

09287-07001

$2.00

8

SPRING

09440-06003

$2.44

9

PIN

09209-10001

$1.49

10

NUT This part replaces 09150-05004.

09150-05101

$3.04

11

GUIDE, FRONT BRAKE CABLE

34949-30002

$5.69

12

CABLE, THROTTLE This part replaces 58300-02200.

58300-02X00

Unavailable

12

CABLE, THROTTLE | A50X This part replaces 58300-02201.

58300-02X00

Unavailable

13

CABLE, STARTER

58410-02200

Unavailable

14

CABLE, REAR BRAKE

58510-02200

Unavailable

15

SPRING This part replaces 09440-08019.

09440-08019-XC0

Unavailable

16

SPRING This part replaces 09440-06019.

09440-06019-XC0

$2.75

17

PIN

09209-10001

$1.49

18

NUT This part replaces 09150-05004.

09150-05101

$3.04

19

PLATE This part replaces 58570-02500.

58570-02501

Unavailable

20

SCREW This part replaces 02112-06208.

02112-06207

$1.78

21

CLIP

09408-00005

Unavailable
