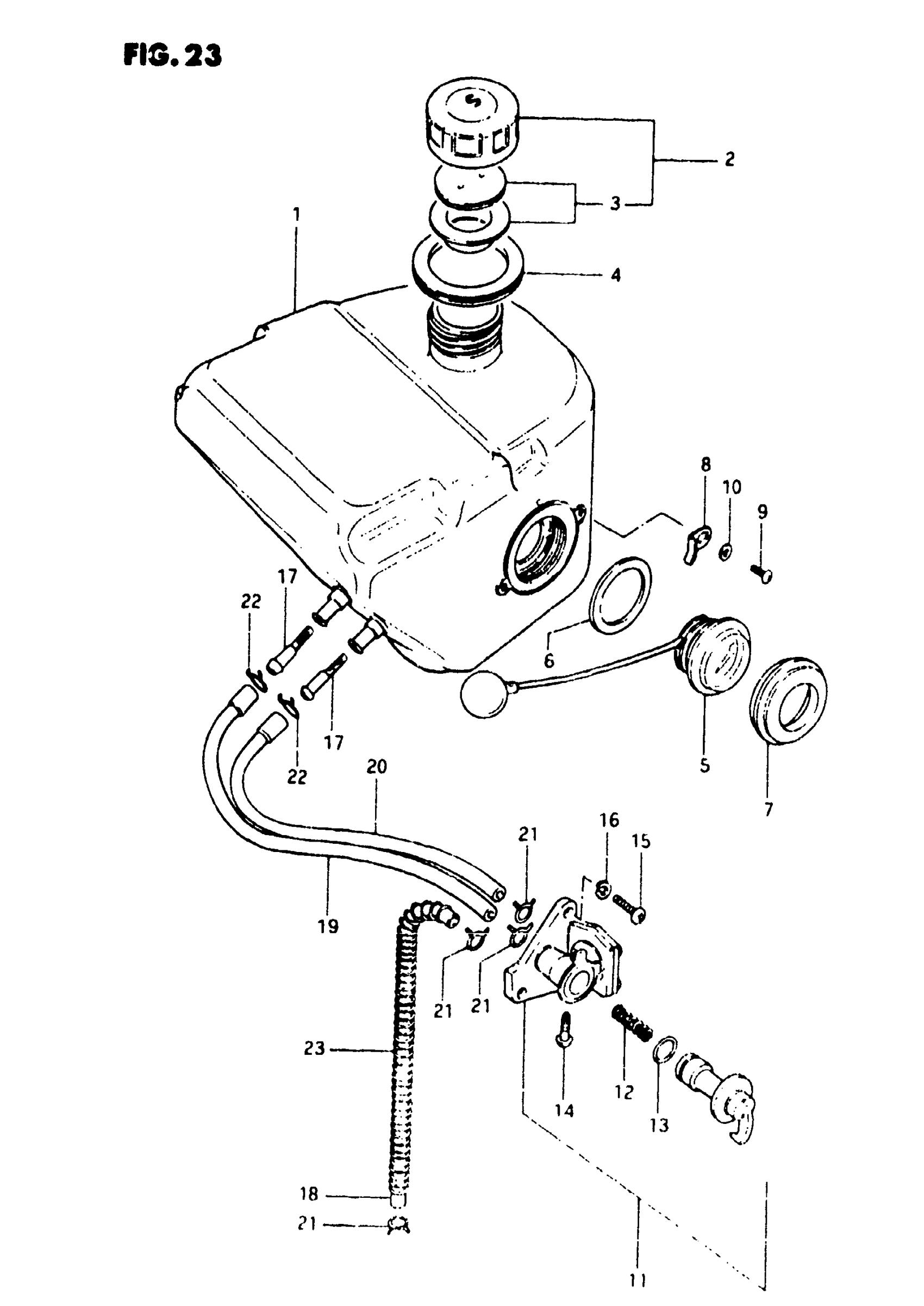

Suzuki FA50 (1981) FUEL TANK (MODEL T) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44111-02200.

44100-02830

Unavailable

2

CAP SET,FUEL TA This part replaces 44000-27809.

44200-27811

$12.72

3

GASKET SET

44660-18818

Unavailable

4

RUBBER,FUEL TAN This part replaces 44261-27000.

44261-27001

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 44580-02210.

44580-02212

Unavailable

6

GASKET This part replaces 44583-02500.

44583-02501

Unavailable

7

GROMMET

09320-31001

Unavailable

8

STOPPER

44591-02500

Unavailable

9

SCREW This part replaces 02112-03068.

02112-0306B

$1.59

10

WASHER This part replaces 08322-21038.

08322-01037

$1.93

11

COCK ASSY,FUEL | Includes Item(s) 12 - 14 This part replaces 44300-02260.

44300-02262

Unavailable

12

SPRING

44357-32470

$2.21

13

O RING, LEVER This part replaces 44353-32470.

44353-12C01

$7.44

14

SCREW

44343-41370

$2.22

15

SCREW This part replaces 02112-05168.

02112-05167

$1.97

16

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

17

FILTER, FUEL

44322-27001

$5.05

18

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

19

HOSE(5X8.2X600) This part replaces 09343-05164.

09359-50824-600

$7.98

20

HOSE(5X8.2X600) This part replaces 09343-05156.

09359-50824-600

$7.98

21

CLIP, LOWER

09401-08401

$1.54

22

CLIP, UPPER

09401-10403

$1.65
