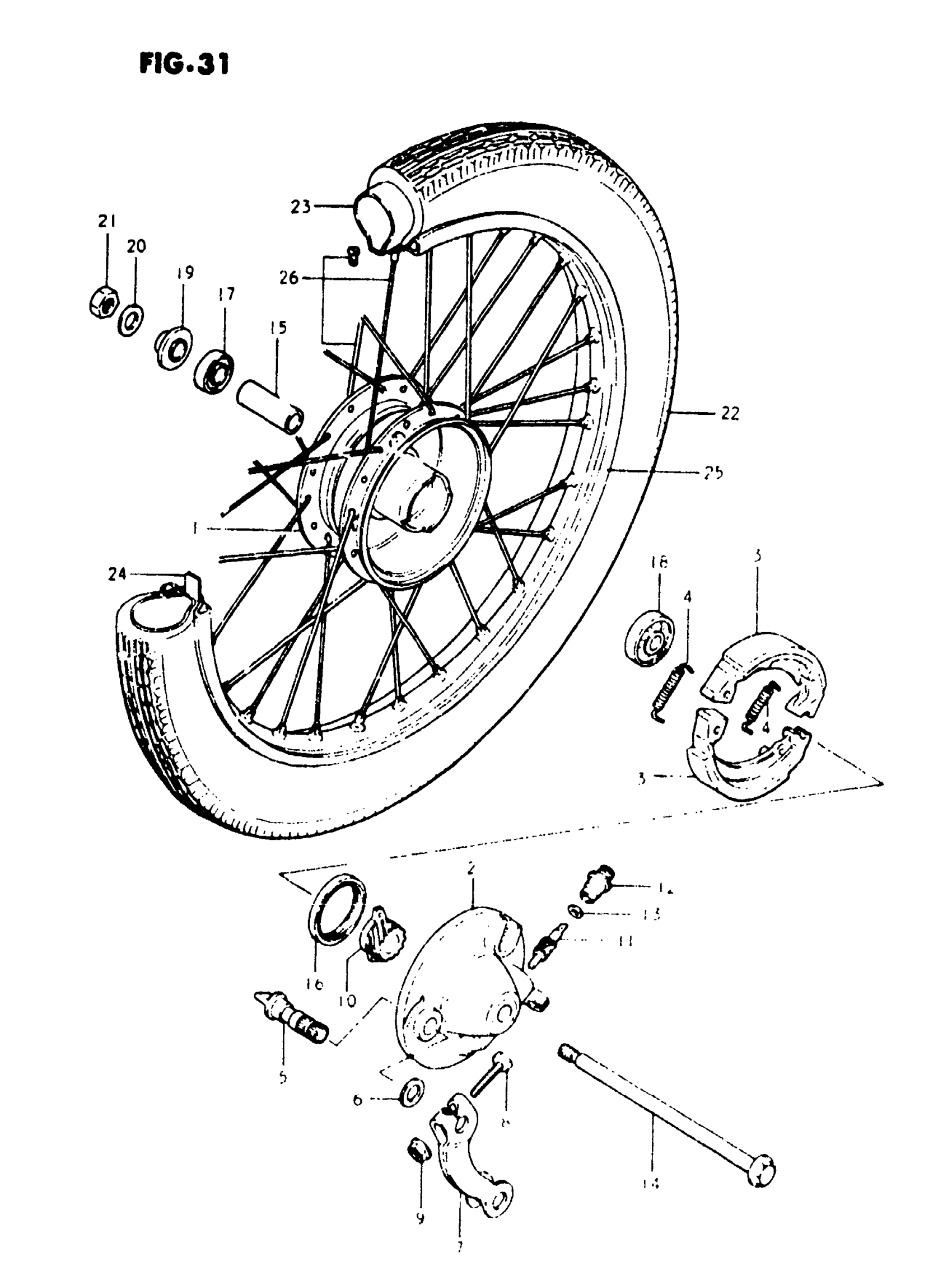

Suzuki FA50 (1981) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | NO. 114349 This part replaces 54110-02200.

54110-02203

Unavailable

1

NO DESCRIPTION AVAILABLE | NO. 114350~ FA50MX, FA50X This part replaces 54110-02201.

54110-02203

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 54210-02301.

54210-02302

Unavailable

3

SHOE SET,BRAKE This part replaces 54410-02310.

54400-02820

Unavailable

4

SPRING

09443-06029

$2.44

5

CAM, BRAKE

54441-02301

$16.87

6

WASHER This part replaces 08322-11108.

08322-01107

$2.15

7

LEVER, CAM

54451-02301

Unavailable

8

BOLT This part replaces 09100-05003.

01500-0525A

$1.77

9

NUT This part replaces 08316-16058.

08316-1005A

$2.19

10

GEAR, SPEEDOMETER (NT:16) This part replaces 54611-02200.

54611-02201

Unavailable

10

GEAR, SPEEDOMETER (NT:16) | A50X

54611-02201

Unavailable

11

PINION,SPEEDOME This part replaces 54621-02200.

54621-02400

Unavailable

11

PINION,SPEEDOME | A50X This part replaces 54621-02201.

54621-02400

Unavailable

12

BUSH This part replaces 54632-02200.

54632-02201

$11.83

12

BUSHING | A50X

54632-02201

$11.83

13

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

14

AXLE, FRONT

54711-02310

Unavailable

15

SPACER

54730-02400

Unavailable

16

OIL SEAL

09285-34002

$4.86

17

BEARING This part replaces 08123-62007.

08123-6200B

$9.71

18

BEARING LH

08113-62000

$13.63

19

SPACER RH

54740-02300

Unavailable

20

WASHER This part replaces 08322-11108.

08322-01107

$2.15

21

NUT This part replaces 08319-21108.

09159-10027

$3.10

22

TIRE (2.25-14)

55100-02210

$45.28

23

TUBE,INNER This part replaces 55200-02210.

55200-46411

$17.96

24

PROTECTOR, WHEEL INNER TUBE This part replaces 55261-02200.

55261-09D00

$4.70

25

RIM, WHEEL (1.20x14) | NO. 114349 This part replaces 55311-02200.

55311-02201

Unavailable

25

RIM, WHEEL (1.20x14) | O. 114350~ FA50MX, FA50X

55311-02201

Unavailable

26

SPOKE SET | NO. 114349 This part replaces 55320-02200.

55320-02202

Unavailable
