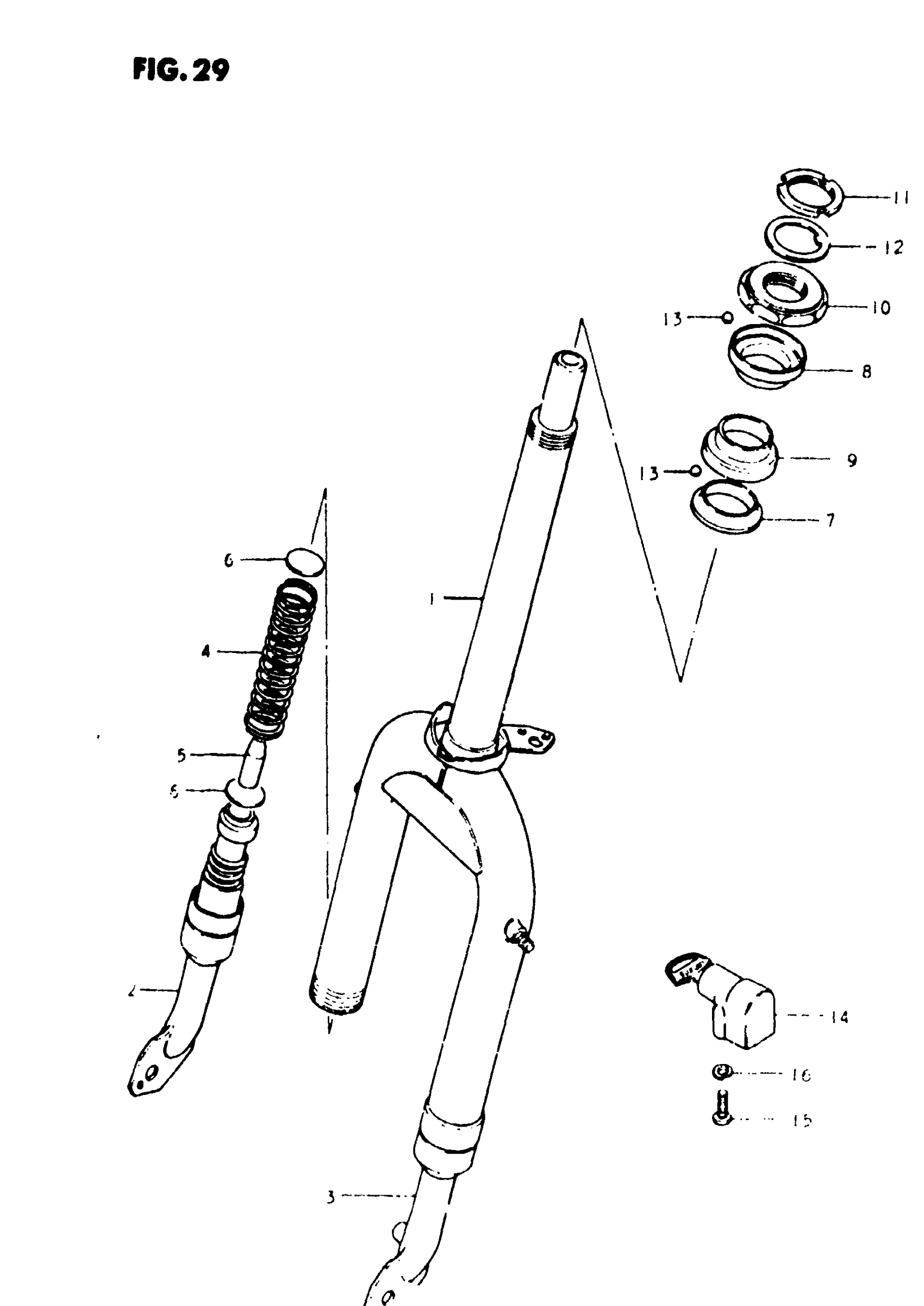

Suzuki FA50 (1981) FRONT FORK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 51100-02820-10G.

51100-02823-10G

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 51100-02821-10G.

51100-02823-10G

Unavailable

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 51100-02821-163.

51100-02823-13L

Unavailable

2

TUBE, LOWER RH

51110-02306

Unavailable

3

TUBE, LOWER LH This part replaces 51120-02306.

51120-02307

Unavailable

4

SPRING

51171-02202

Unavailable

5

STOPPER, RUBBER

51292-02201

Unavailable

6

WASHER

09242-25001

Unavailable

7

RACE,STEERING O This part replaces 51622-04400.

51622-29C20

$11.30

8

RACE,STEERING I This part replaces 51611-04400.

51611-16A00

$11.38

9

RACE,STTER INNE This part replaces 51612-04400.

51612-29C00

$12.53

10

RACE, OUTER UPPER

51621-04401

Unavailable

11

NUT, STEM

99800-10420

Unavailable

12

WASHER

09166-26001

$2.07

13

STEELL BALL

06111-05004

$1.49

14

LOCK ASSY, STEERING This part replaces 51910-25310.

51910-25311

$40.33

15

SCREW This part replaces 02112-05128.

02112-05127

$1.97
