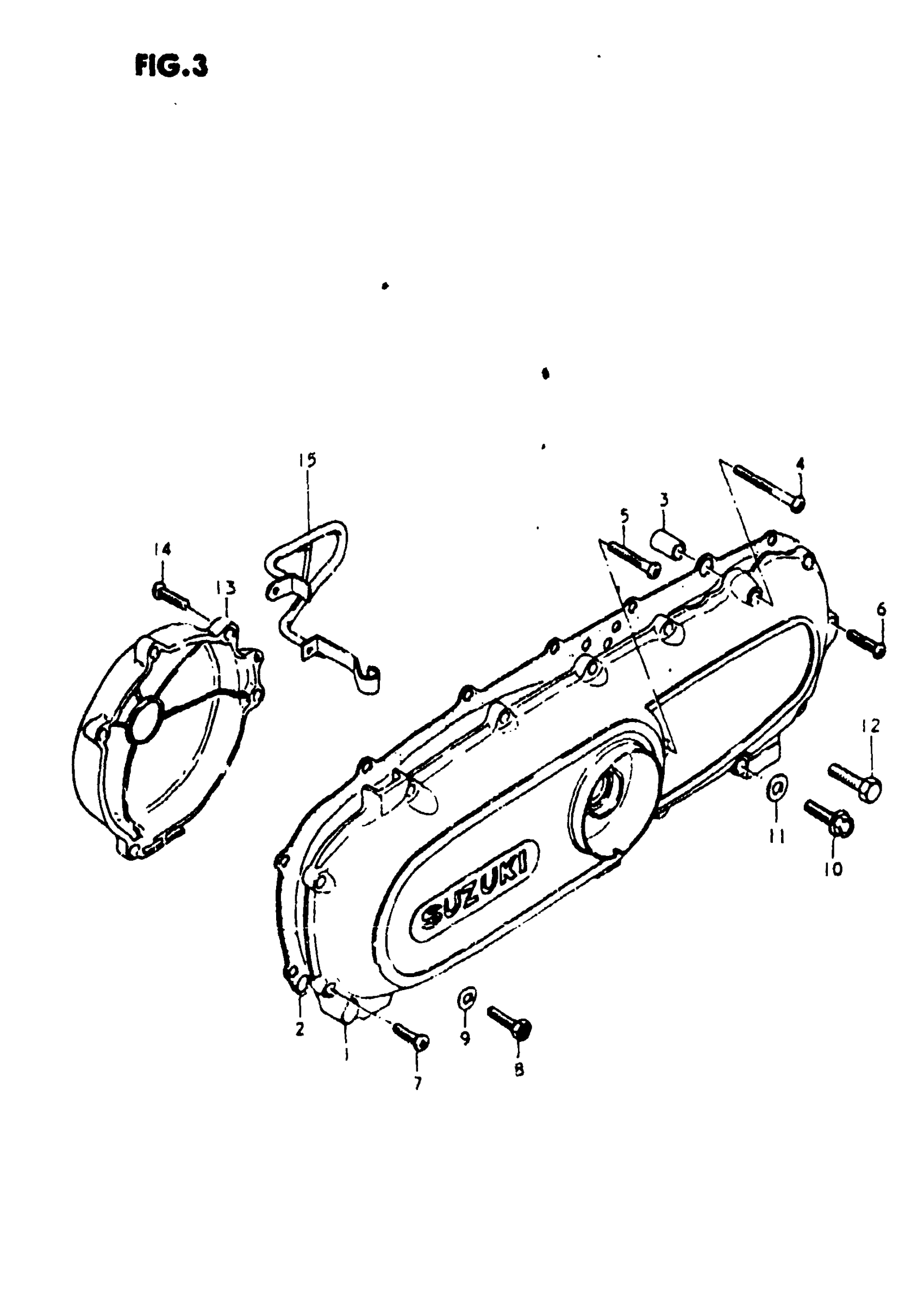

Suzuki FA50 (1981) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-02310

Unavailable

2

GASKET,CL COVER This part replaces 11482-02303.

11482-02310

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

5

SCREW This part replaces 02112-06308.

02112-06307

$1.97

6

SCREW This part replaces 02112-06258.

02112-06257

$1.78

7

SCREW This part replaces 02112-06208.

02112-06207

$1.78

8

BOLT This part replaces 09128-06009.

01500-0635A

$2.19

9

GASKET

09168-06004

$1.49

10

BOLT | -02310 This part replaces 01517-08258.

01550-08257

$2.81

11

GASKET (8.2X14X1) | -02310 This part replaces 09168-08008.

09168-08016

$1.65

12

BOLT | -02891 This part replaces 01107-08258.

01500-08257

$2.50

13

NO DESCRIPTION AVAILABLE This part replaces 11351-02302.

11351-02303

Unavailable

14

SCREW This part replaces 02112-06208.

02112-06207

$1.78
