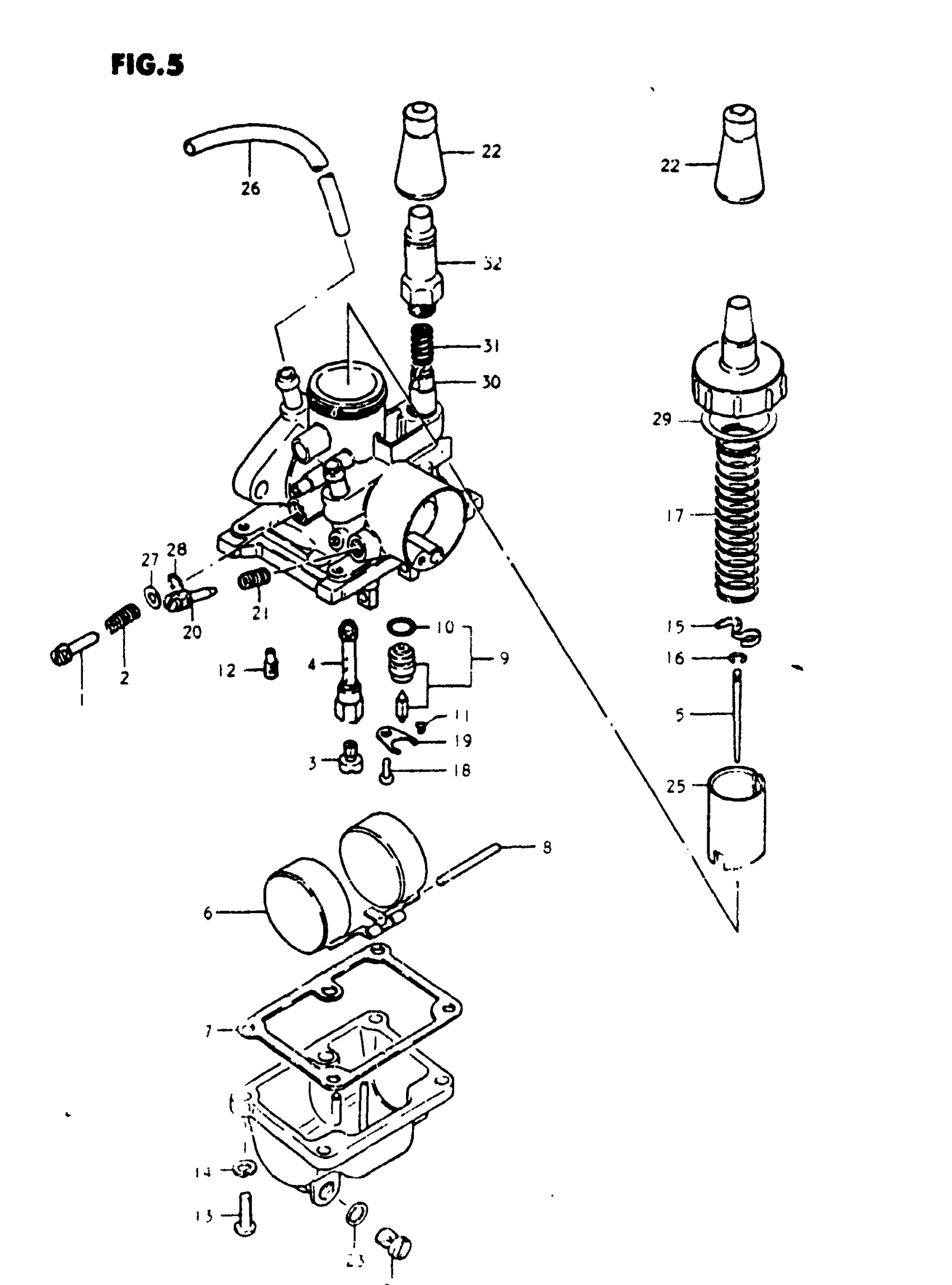

Suzuki FA50 (1981) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY This part replaces 13200-02340.

13200-02341

Unavailable

CARBURETOR ASSY | Includes Item(s) 1 - 31

13200-02370

Unavailable

1

ADJUSTER This part replaces 13267-35011.

13483-16A01

$16.25

2

SPRING

13268-35010

$4.48

3

JET, MAIN (77.5)

09491-77005

$11.83

4

JET, NEEDLE (E-6)

09494-00266

Unavailable

5

NEEDLE, JET (3F13-3)

13383-02330

Unavailable

5

NEEDLE, JET (3D18)

13383-02370

Unavailable

6

FLOAT This part replaces 13252-02410.

13250-02500

$26.91

7

GASKET

13251-02410

$5.36

8

PIN

13254-20010

$4.28

9

VALVE ASSY, NEE This part replaces 13370-02411.

13370-31C80

$51.82

10

.O RING This part replaces 13374-47610.

13374-46710

$4.48

11

CLIP

13377-02410

$7.37

12

JET, PILOT (15)

09492-15007

$11.38

13

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

14

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

15

SEAT, THROTTLE VALVE SPRING

13581-04010

$7.80

16

E RING This part replaces 13394-12110.

13394-40D00

$5.43

17

SPRING

13573-02330

$11.30

17

SPRING

13573-02370

Unavailable

18

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

19

PLATE

13373-46710

$6.17

20

SCREW, AIR

13269-04010

$13.67

21

SPRING

13268-01010

$5.28

22

.CAP This part replaces 13681-04010.

13681-04011

$4.93

23

O RING

13278-02340

$1.91

24

PLUG, DRAIN

13247-02340

$4.99

25

THROTTLE VALVE (CA:2.0)

13551-02330

Unavailable

26

HOSE(4.5X8.5X60 This part replaces 13683-45050.

09355-45001-600

$9.48

27

WASHER

13291-35010

$3.56

28

O RING

13295-33010

$4.48

29

GASKET, TOP

13266-02330

Unavailable

30

VALVE, STARTER

13411-01010

$18.43

31

SPRING

13417-01010

$4.62
