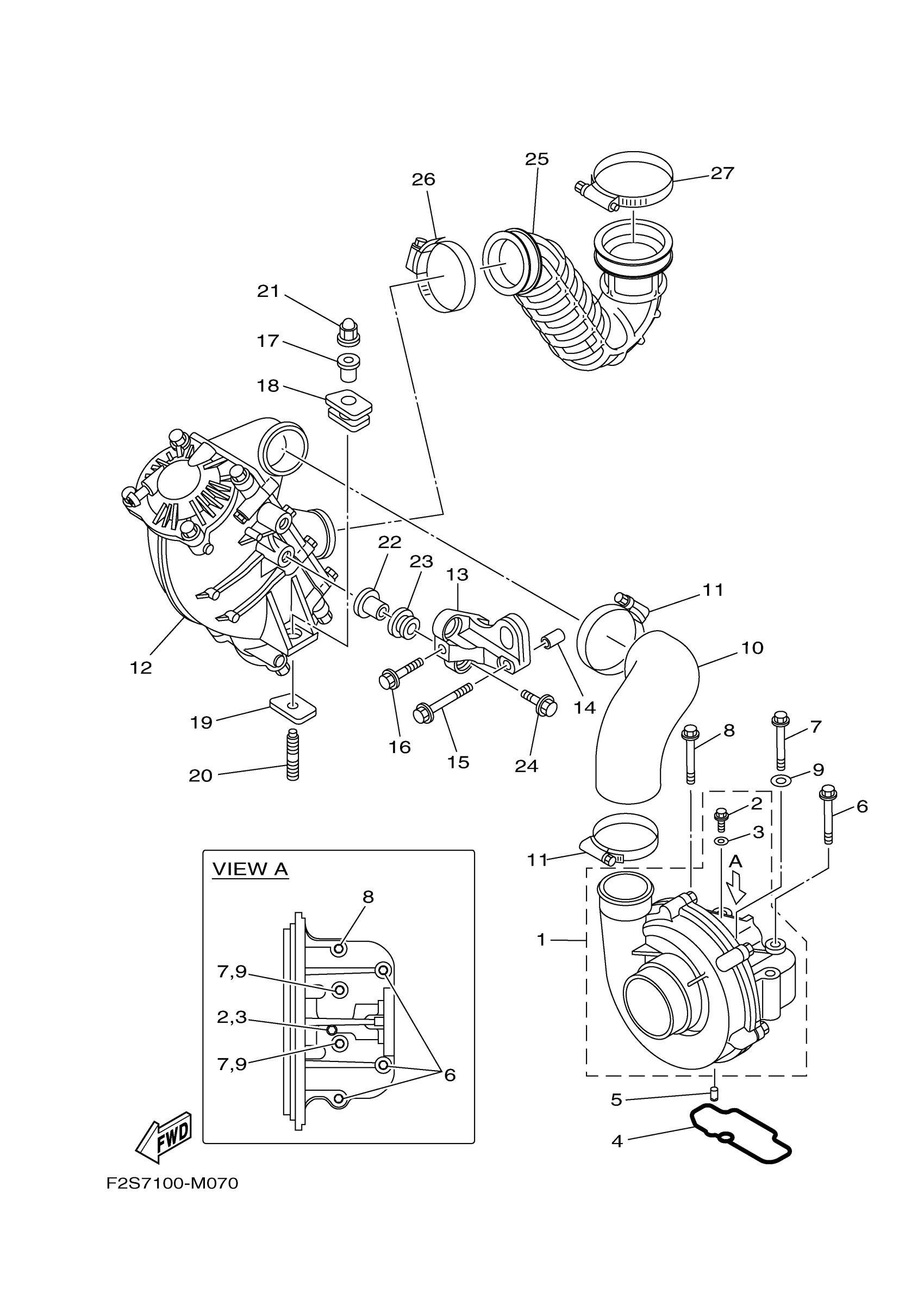

Yamaha FA1800P (FX SHO) F2SN 2015 INTAKE 2 Diagram
#
Description
Price
1
SUPER CHARGER ASSY
6S5-141A0-08-00
Unavailable
2
. BOLT, FLANGE
90105-05020-00
Unavailable
3
. GASKET
6S5-14199-00-00
Unavailable
4
. O-RING
6S5-1416A-00-00
Unavailable
5
PIN, DOWEL
93604-10M03-00
Unavailable
6
BOLT, FLANGE
95814-08065-00
$4.99
7
BOLT, FLANGE
95814-06065-00
Unavailable
8
BOLT, FLANGE
90105-08188-00
Unavailable
9
WASHER, PLATE
90201-06028-00
Unavailable
10
PIPE
6S5-14349-00-00
Unavailable
11
HOSE CLAMP ASSY
90450-75003-00
Unavailable
12
AIR COOLER ASSY.
6S5-13670-10-00
Unavailable
13
BRACKET, AIR COOLE
6S5-13691-12-00
Unavailable
14
PIN, DOWEL(4JT)
99590-14016-00
$4.24
15
BOLT, WITH WASHER
90119-10047-00
Unavailable
16
BOLT, WITH WASHER
90119-10046-00
Unavailable
17
COLLAR
90387-11007-00
Unavailable
18
GROMMET
6S5-14435-01-00
Unavailable
19
PLATE
6S5-14243-01-00
Unavailable
20
BOLT, STUD
90116-10044-00
Unavailable
21
NUT, CAP
90176-10001-00
Unavailable
22
COLLAR
90387-11008-00
Unavailable
23
GROMMET(62L)
90480-21M63-00
Unavailable
24
BOLT, WITH WASHER
90119-10011-00
Unavailable
25
PIPE, BOOST
6CS-13651-01-00
Unavailable
26
HOSE CLAMP ASSY
90450-70005-00
Unavailable
27
HOSE CLAMP ASSY
90450-90002-00
Unavailable
