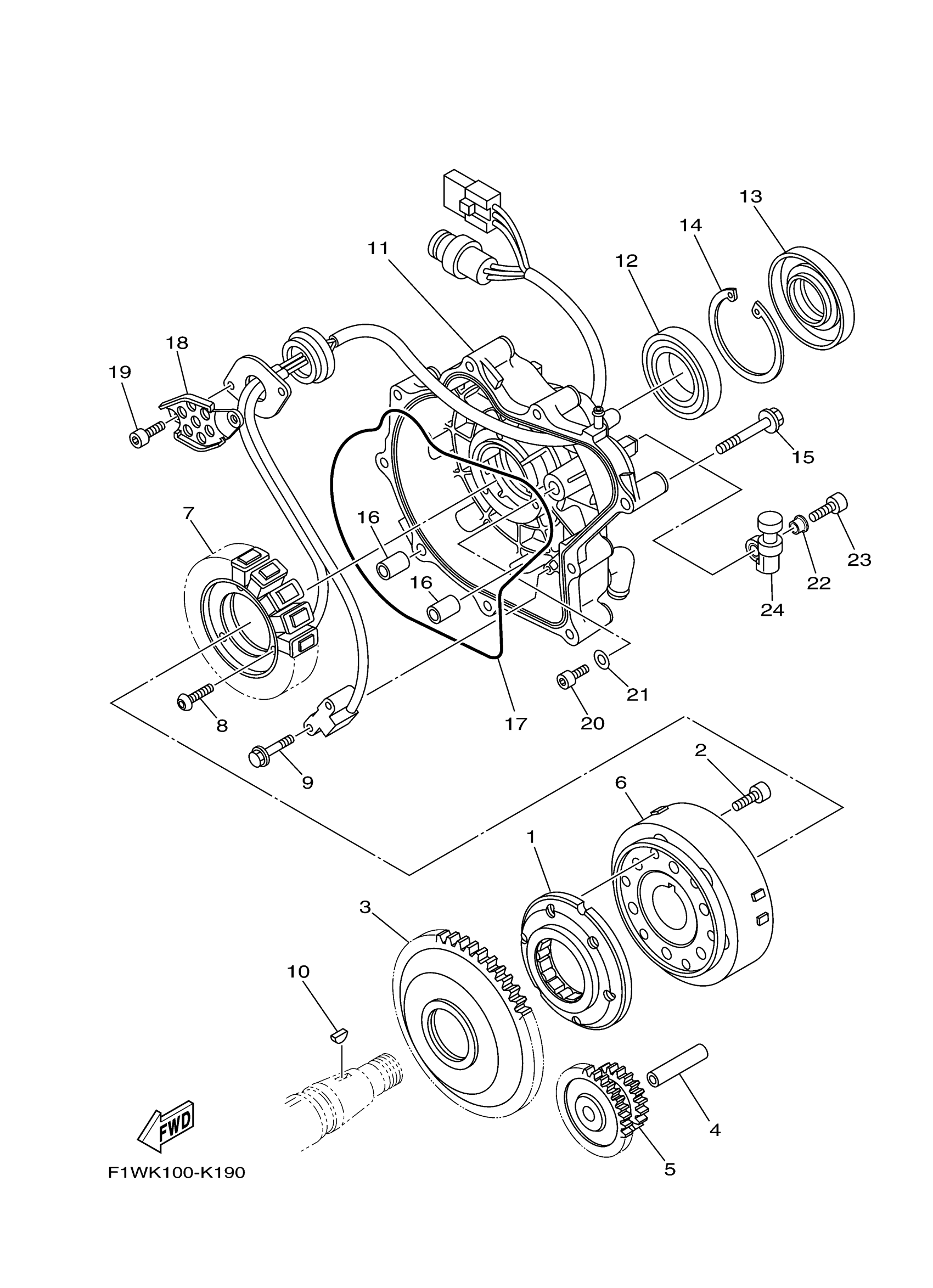

Yamaha FA1800N (FX SHO) F2SG 2014 GENERATOR Diagram
#
Description
Price
1
STARTER ONE-WAY ASSY
6S5-15590-00-00
Unavailable
4
SHAFT 1
6S5-15521-00-00
Unavailable
5
GEAR, IDLER 2
6S5-15517-00-00
Unavailable
6
ROTOR ASSY
6S5-81450-01-00
Unavailable
7
STATOR ASSY
6S5-81410-11-00
Unavailable
9
BOLT, WITH WASHER
97513-05514-00
Unavailable
11
COVER, FLYWHEEL
6S5-81337-20-00
Unavailable
12
BEARING
93306-00809-00
Unavailable
14
CIRCLIP (70R)
93420-72065-00
Unavailable
15
BOLT, FLANGE
90105-08249-00
Unavailable
16
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
17
. O-RING
6S5-81168-00-00
Unavailable
18
CLAMP
6S5-81328-00-00
Unavailable
19
BOLT,SOCKET
91317-06014-00
Unavailable
20
BOLT, SOCKET
91317-05010-00
Unavailable
21
WASHER, PLATE (7N7)
90201-052E8-00
Unavailable
22
COLLAR
90387-06M05-00
Unavailable
23
. BOLT
91380-06020-00
Unavailable
24
. GROMMET
6S5-81364-11-00
Unavailable
