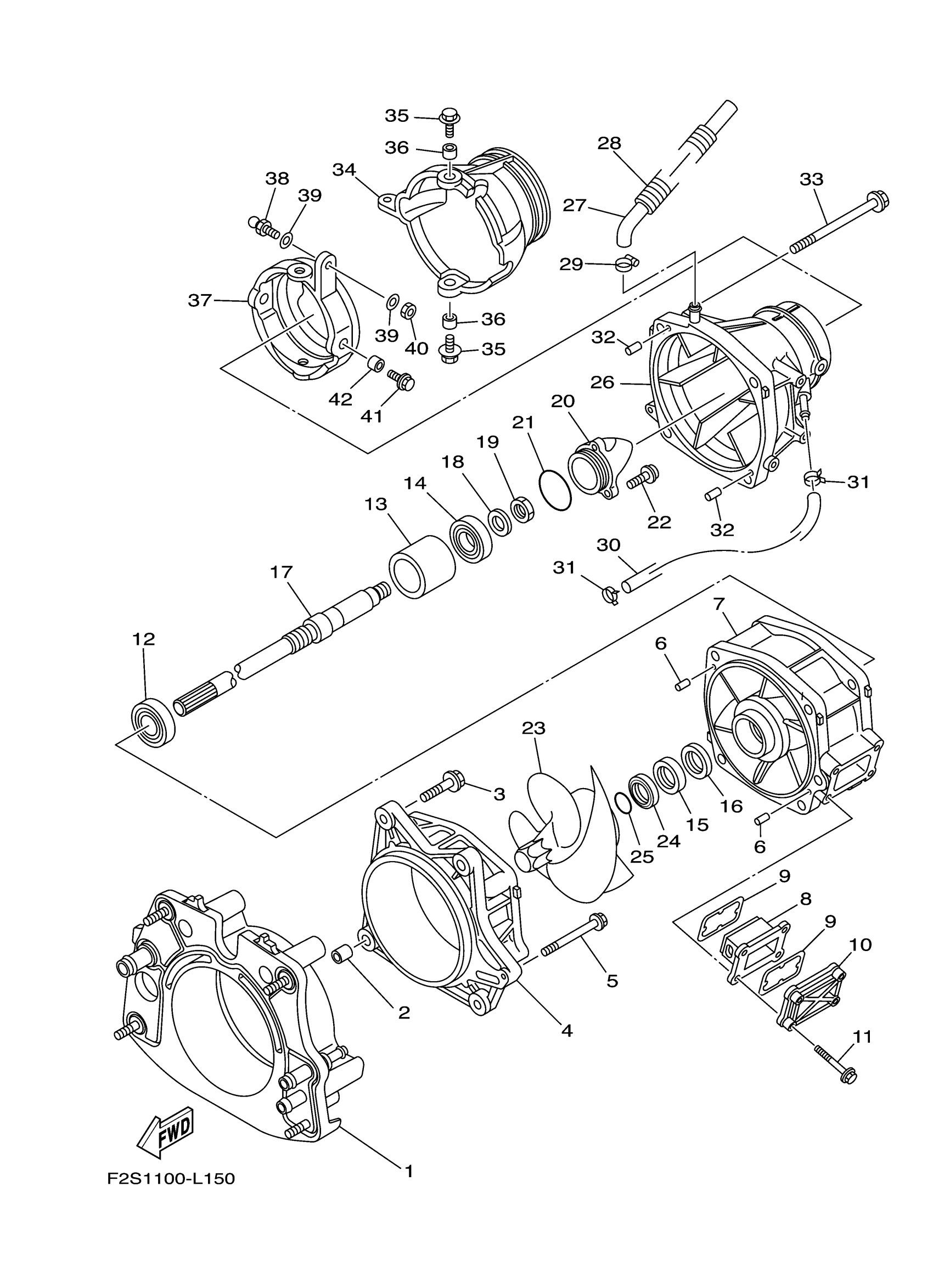

Yamaha FA1800L (FX SHO) F2S4 2012 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6CS-G5831-10-00

Unavailable

2

PIN, DOWEL(4JT)

99590-14016-00

$3.41

3

BOLT, WITH WASHER

90119-10811-00

$1.37

4

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

5

BOLT, WITH WASHER

90119-06894-00

$1.37

6

PIN, DOWEL (614)

93606-12019-00

$3.05

7

DUCT, IMPELLER

6CR-R1315-00-00

$93.30

8

FILTER

66V-46882-00-00

$5.91

9

. O-RING

66V-42414-00-00

$5.18

10

COVER, WATER INLET

6AN-G5214-00-00

$18.17

11

BOLT,WITH WASHER

90119-06898-00

$3.43

12

BEARING

93306-20654-00

$62.23

13

SPACER 1

6S5-45538-00-00

$28.52

14

BEARING

93306-30582-00

$48.16

15

. OIL SEAL

93102-31009-00

$80.29

16

. OIL SEAL

93101-31001-00

$32.99

17

SHAFT, DRIVE

6S5-G5511-00-00

$276.63

18

WASHER

9290P-20600-00

$0.57

19

NUT

90170-20802-00

$14.35

20

CAP

6AN-R1326-00-00

$17.94

21

O-RING

93210-54010-00

$2.64

22

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

23

IMPELLER

6CS-R1321-00-00

$190.43

24

SPACER

6BH-51348-01-00

$61.99

25

O-RING (30X)

93210-30611-00

Unavailable

26

NOZZLE

6BH-R1318-01-00

$274.23

27

HOSE 1

6CS-U72M2-00-00

$6.68

28

TUBE (L230)

90447-19015-00

$3.64

29

BAND, HOSE 18

90601-118UF-00

$2.07

30

HOSE (L330)

90445-14804-00

$1.52

31

CLIP

90467-14803-00

$2.58

32

PIN, DOWEL (614)

93606-12019-00

$3.05

33

BOLT, WITH WASHER

90119-10807-00

$5.44

34

NOZZLE, DEFLECTOR

6S5-R1313-01-00

$23.67

35

BOLT, WITH WASHER

90119-08852-00

$3.79

36

COLLAR(6R7)

90387-08M06-00

Unavailable

37

RING,TRIM

6AN-R1190-00-00

$21.53

38

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

39

WASHER,PLATE

90201-068M4-00

Unavailable

40

NUT

9538R-06700-00

$1.01

41

BOLT, WITH WASHER

90119-08852-00

$3.79

42

COLLAR(6R7)

90387-08M06-00

Unavailable
