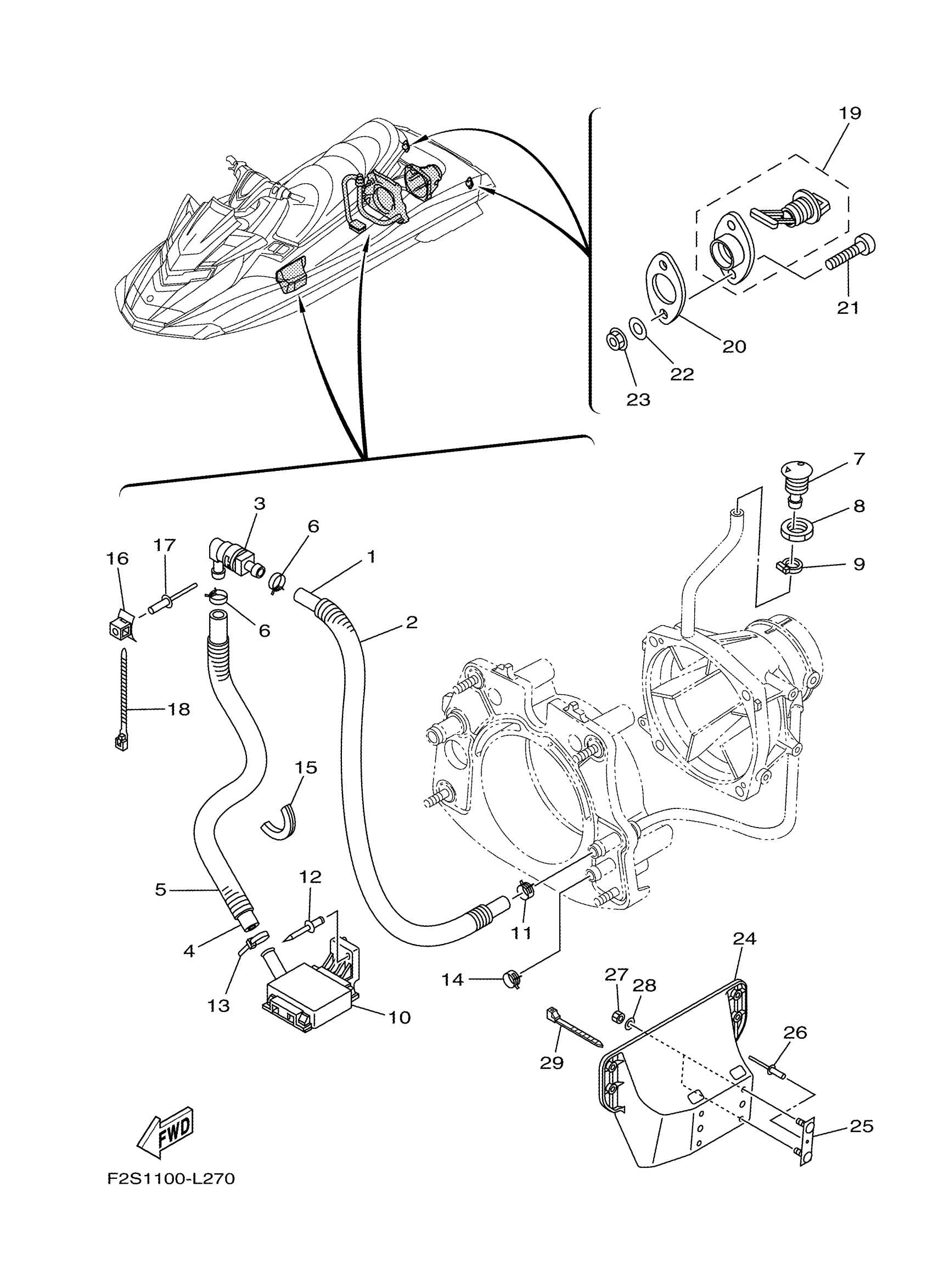

Yamaha FA1800L (FX SHO) F2S4 2012 HULL & DECK Diagram

#

Description
Price

1

HOSE (L860)

90445-20804-00

$12.86

2

HOSE

90446-27M73-00

$18.83

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

HOSE (L500)

90445-20800-00

$12.86

5

HOSE(63M)

90446-27M55-00

$14.36

6

CLIP

90467-18804-00

$2.72

7

SPOUT

F1W-U269B-00-00

$1.80

8

NUT

EU0-61652-00-00

$11.48

9

BAND, HOSE 18

90601-118UF-00

$2.07

10

STRAINER, BILGE

F1B-U761D-02-00

$5.15

11

CLIP

90467-21800-00

$2.87

12

RIVET, BLIND

90267-489U8-00

$0.99

13

BAND

90601-200U1-00

$2.77

14

CLIP

90467-200A0-00

$7.40

15

TRIM, 1

F1S-U828H-01-00

$6.52

16

BASE, CLAMP

F1W-U828M-00-00

$1.23

17

RIVET, BLIND

90267-48802-00

$1.98

18

CLAMP

90464-32801-00

$1.23

19

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

20

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

21

SCREW, PAN HEAD

9788R-05025-00

$2.52

22

WASHER

9299R-05200-00

$3.16

23

NUT, FLANGE

9572R-05300-00

$1.43

24

BRACKET 2

F1W-U8572-01-00

$48.47

25

BRACKET

F1K-U826C-03-00

$12.86

26

RIVET (EU0)

90267-48938-00

$5.00

27

NUT, NYLON (6J8)

95780-08300-00

$10.55

28

WASHER

9299R-08200-00

Unavailable

29

CLAMP

90464-32801-00

$1.23
