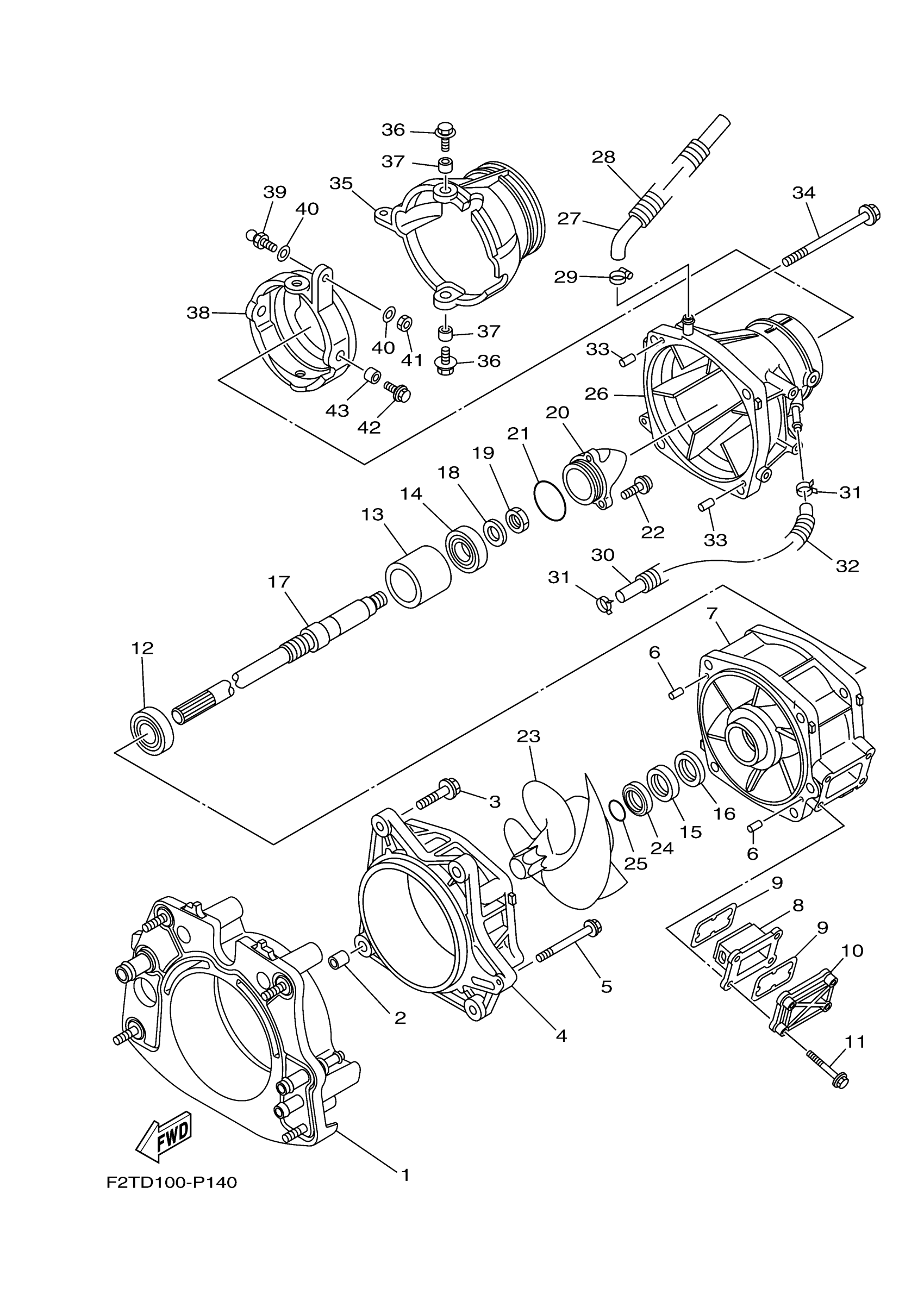

Yamaha FA1800AR (FX CRUISER SHO) F2SS 2016 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6CS-G5831-10-00

Unavailable

2

PIN, DOWEL(4JT)

99590-14016-00

$3.50

3

BOLT, WITH WASHER

90119-10811-00

$1.43

4

HOUSING, IMPELLER

6CR-R1312-00-00

$131.73

5

BOLT, WITH WASHER

90119-06894-00

$1.43

6

PIN, DOWEL (614)

93606-12019-00

$3.50

7

DUCT, IMPELLER

6CR-R1315-00-00

$97.42

8

FILTER

66V-46882-00-00

$5.59

9

. O-RING

66V-42414-00-00

$5.31

10

COVER, WATER INLET

6AN-G5214-00-00

$17.90

11

BOLT,WITH WASHER

90119-06898-00

$3.59

12

BEARING

93306-20654-00

$63.83

13

SPACER 1

6CS-G5538-00-00

$34.45

14

BEARING(3RR)

93306-30560-00

Unavailable

15

. OIL SEAL

93102-31009-00

$76.11

16

. OIL SEAL

93101-31001-00

$31.57

17

SHAFT, DRIVE

6S5-G5511-00-00

$286.55

18

WASHER

9290P-20600-00

$0.65

19

NUT

90170-20802-00

$15.07

20

CAP

6AN-R1326-00-00

$18.66

21

O-RING

93210-54010-00

$2.58

22

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.30

23

IMPELLER

6CS-R1321-00-00

$199.22

24

SPACER

6BH-51348-01-00

$58.88

25

O-RING (30X)

93210-30611-00

Unavailable

26

NOZZLE

6BH-R1318-01-00

$270.13

27

HOSE 1

6CS-U72M2-00-00

$6.95

28

TUBE

6CN-U773D-01-00

$2.91

29

BAND, HOSE 18

90601-118UF-00

$2.22

30

HOSE

6ET-U215E-00-00

$5.15

31

CLIP

90467-14803-00

$2.72

32

TUBE

6ET-U773D-00-00

$2.46

33

PIN, DOWEL (614)

93606-12019-00

$3.50

34

BOLT, WITH WASHER

90119-10807-00

$5.75

35

NOZZLE, DEFLECTOR

6S5-R1313-01-00

$25.11

36

BOLT, WITH WASHER

90119-08852-00

$4.01

37

COLLAR(6R7)

90387-08M06-00

Unavailable

38

RING,TRIM

6AN-R1190-00-00

$22.97

39

STUD, JOINT BALL

GH3-U146E-00-00

$7.53

40

WASHER,PLATE

90201-068M4-00

Unavailable

41

NUT

9538R-06700-00

$1.07

42

BOLT, WITH WASHER

90119-08852-00

$4.01

43

COLLAR(6R7)

90387-08M06-00

Unavailable
