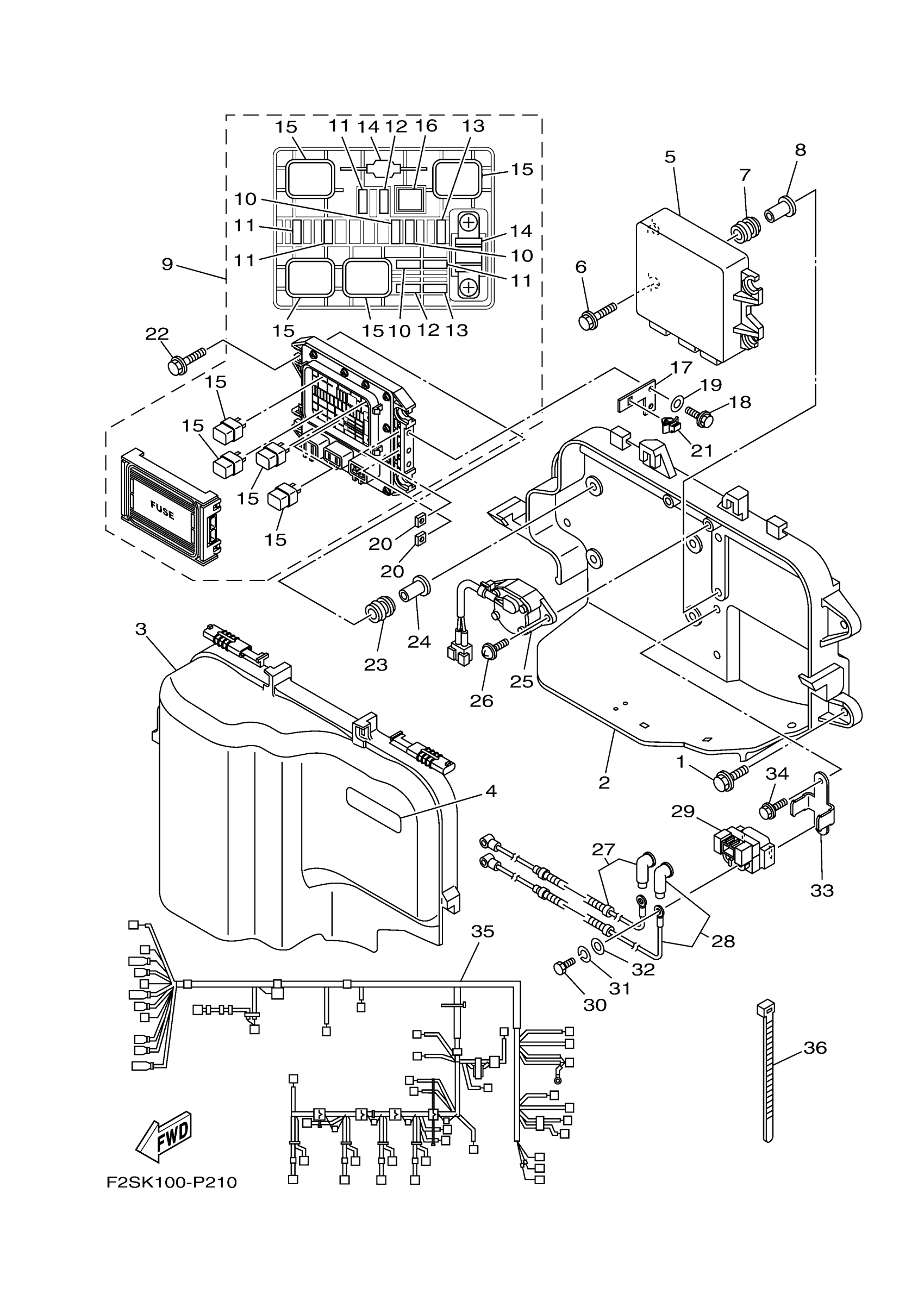

Yamaha FA1800AR (FX CRUISER SHO) F2SS 2016 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-089UT-00

Unavailable

2

PLATE

6CS-81845-00-00

Unavailable

3

COVER

6S5-81942-11-00

Unavailable

4

LABEL, CAUTION 7

60E-83627-00-00

Unavailable

5

ENGINE CONTROL UNIT ASSY

6CS-8591A-41-00

Unavailable

6

BOLT, WITH WASHER

90119-06311-00

Unavailable

7

DAMPER, IGNITION C

6A0-82317-01-00

Unavailable

8

. COLLAR

90387-06119-00

Unavailable

9

FUSE BOX ASSY

6EX-82170-02-00

Unavailable

10

. FUSE (3A)

67F-82151-30-00

Unavailable

11

. FUSE (10A)

67F-82151-40-00

Unavailable

12

FUSE

5JJ-82151-20-00

$7.99

13

FUSE

5JJ-82151-60-00

$7.99

14

. FUSE (50A)

6EX-82151-00-00

Unavailable

15

. RELAY ASSY

6EX-8195A-00-00

Unavailable

16

. PULLER, FUSE

6EX-2812A-00-00

Unavailable

17

PLATE

6CS-82588-00-00

Unavailable

18

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

NUT, SQUARE(1HV)

90173-06015-00

Unavailable

21

CLAMP

90464-09M47-00

Unavailable

22

BOLT, WITH WASHER

90119-06311-00

Unavailable

23

DAMPER, IGNITION C

6A0-82317-01-00

Unavailable

24

. COLLAR

90387-06119-00

Unavailable

25

SWITCH ASSY

6S5-8259E-00-00

Unavailable

26

SCREW, TAPPING

97780-60520-00

Unavailable

27

WIRE, PLUS LEAD

6JP-82115-00-00

Unavailable

28

WIRE, LEAD

6CS-82117-00-00

Unavailable

29

STARTER RELAY ASSY (2768102-A)

1B7-81940-00-00

Unavailable

30

BOLT(GH1)

97080-06012-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

WASHER, PLAIN (646)

92990-06600-00

Unavailable

33

STAY, RELAY

6CS-81953-00-00

Unavailable

34

BOLT, FLANGE

95814-06012-00

Unavailable

35

WIRE HARNESS ASSY 1

6CS-8259L-20-00

Unavailable

36

CLAMP

90465-14M66-00

Unavailable
