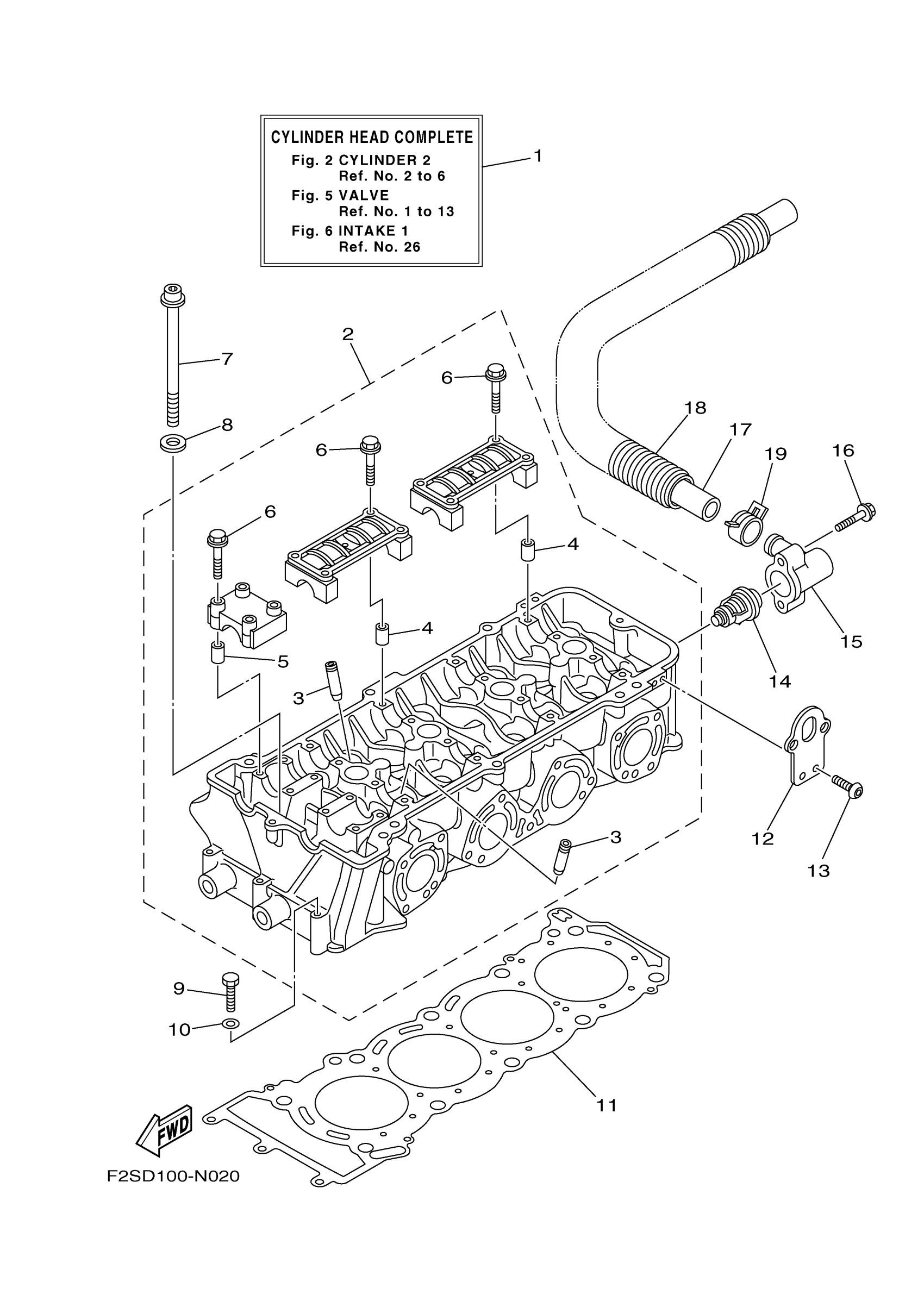

Yamaha FA1800AP (FX CRUISER SHO) F2SK 2015 CYLINDER 2 Diagram

#

Description
Price

1

CYLINDER HEAD COMPLETE (6S5_02

99999-04246-00

$5,973.51

2

CYLINDER HEAD ASSY

6S5-11102-20-00

$2,148.49

3

. GUIDE, VALVE 1

6S5-11133-10-00

$44.45

4

. PIN, DOWEL

91809-16002-00

$2.16

5

. PIN, DOWEL

91809-16002-00

$2.16

6

. BOLT, FLANGE

90105-07009-00

$3.03

7

BOLT

6S5-12228-01-00

$16.66

8

WASHER, PLATE

90201-12039-00

$3.03

9

BOLT(64D)

97013-06055-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.38

11

GASKET, CYLINDER HEAD 1

6JC-11181-00-00

$119.63

12

HANGER, ENGINE 2

6BH-1111E-00-00

$22.78

13

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$2.31

14

THERMOSTAT

60E-12411-01-00

$100.65

15

COVER, THERMOSTAT

6BH-12413-00-00

$34.19

16

BOLT, FLANGE

90105-06035-00

$2.01

17

HOSE 3

6S5-12578-00-00

$60.28

18

TUBE (L850)

90447-28008-00

$18.37

19

CLIP

90467-240A0-00

$5.69
