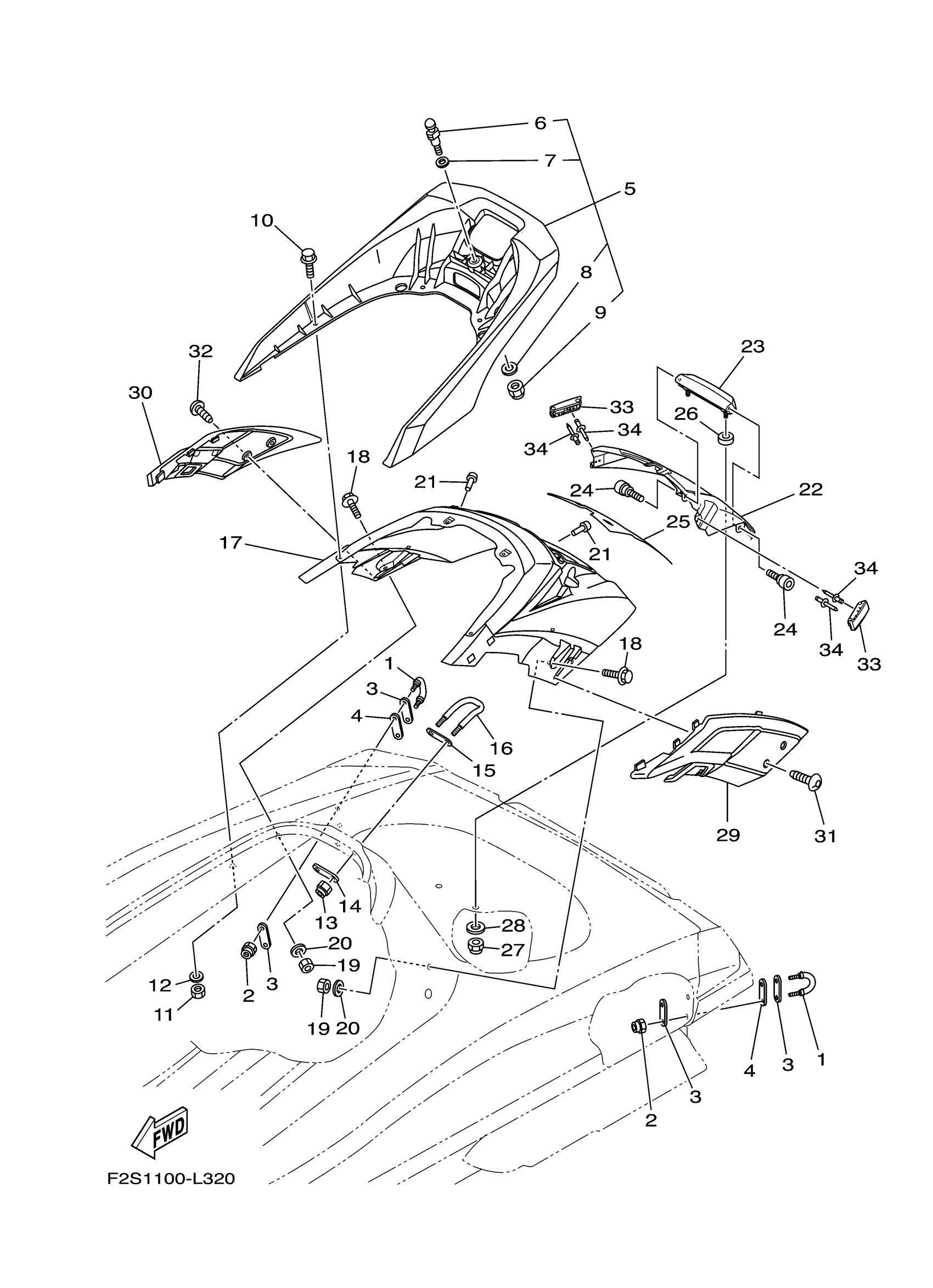

Yamaha FA1800AN (FX CRUISER SHO) F2SD 2014 SEAT & UNDER LOCKER 2 Diagram

#

Description
Price

1

STERN EYE

F2N-U1628-02-00

Unavailable

2

NUT, NYLON (6J8)

95780-08300-00

Unavailable

3

PLATE A

GP7-U4953-10-00

Unavailable

4

PACKING

F1B-U1653-03-00

$4.99

5

GRIP ASSY

F2S-U270B-10-00

Unavailable

6

PIN

GH1-U3774-00-00

Unavailable

7

WASHER, PLATE

90201-109U6-00

Unavailable

8

WASHER

9299R-10200-00

Unavailable

9

NUT, NYLON

9572R-10300-00

Unavailable

10

BOLT, WITH WASHER

90119-08829-00

Unavailable

11

NUT, NYLON (6J8)

95780-08300-00

Unavailable

12

WASHER

9299R-08200-00

$2.29

13

NUT, NYLON (6J8)

95780-08300-00

Unavailable

14

PLATE A

GP7-U4953-10-00

Unavailable

15

PLATE A

GP7-U4953-10-00

Unavailable

16

SKI TOWS

F1B-U1629-00-00

Unavailable

17

STORAGE, STERN (DNMC)

F2S-U89A1-01-P1

Unavailable

18

BOLT, WITH WASHER

90119-08832-00

Unavailable

19

NUT, NYLON (6J8)

95780-08300-00

Unavailable

20

WASHER

9299R-08200-00

$2.29

21

. CUSHION, RUBBER

F1W-U3768-01-00

Unavailable

22

LID LOCKER STERN (DNMC)

F2S-U518M-01-P1

Unavailable

23

GRIP, LOWER

F2S-U271F-01-00

Unavailable

24

BOLT

F2S-U2624-00-00

Unavailable

25

PACKING CASE

F2S-U519D-20-00

Unavailable

26

PACKING

F2S-U2284-01-00

Unavailable

27

NUT, NYLON (6J8)

95780-08300-00

Unavailable

28

WASHER

9299R-08200-00

$2.29

29

STERN COVER ASSY 1

F2S-U890M-11-00

Unavailable

30

STERN COVER ASSY 2

F2S-U890N-11-00

Unavailable

31

SCREW

F2S-U13C1-00-00

Unavailable

32

SCREW

F2S-U13C1-00-00

Unavailable

33

LOCK 1

F2S-U264L-01-00

Unavailable

34

RIVET, BLIND

90267-409U3-00

Unavailable
