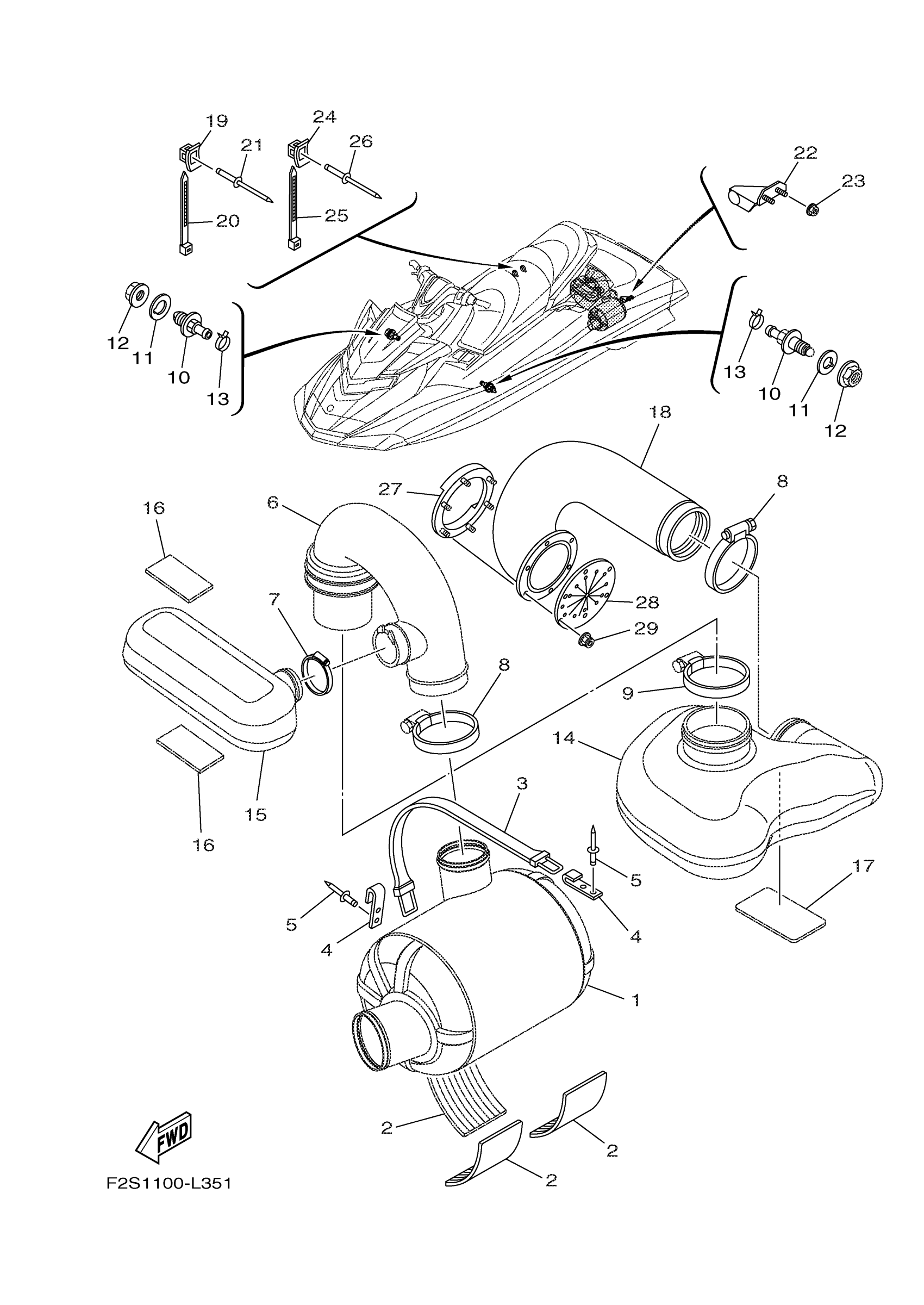

Yamaha FA1800AN (FX CRUISER SHO) F2SD 2014 EXHAUST 3 Diagram
#
1
WATER LOCK COMP.
F4P-U7550-00-00
Unavailable
2
PAD, BATTERY
F1S-U8221-00-00
Unavailable
3
BAND, FUEL TANK
EW2-67821-00-00
Unavailable
4
HOOK A
GA7-65772-00-00
Unavailable
5
RIVET (EU0)
90267-48938-00
Unavailable
6
HOSE, EXHAUST
F2S-U7555-01-00
Unavailable
7
BAND, HOSE 70
90601-170UG-00
Unavailable
8
HOSE CLAMP ASSY
90450-99801-00
Unavailable
9
HOSE CLAMP ASSY
90450-99804-00
Unavailable
10
PILOT, WATER
F2C-U753B-01-00
Unavailable
11
GASKET
F2C-U7564-02-00
Unavailable
12
NUT
F2C-U2733-00-00
Unavailable
13
CLIP
90467-17802-00
Unavailable
14
TANK, WATER
F2N-U4261-00-00
Unavailable
15
RESONATOR 1
F2S-U753C-00-00
Unavailable
16
MAT 2
F1K-U759C-00-00
Unavailable
17
PAD, BATTERY
F1S-U8221-00-00
Unavailable
18
HOSE,EXHAUST 3
F2N-U758D-00-00
Unavailable
19
BASE, CLAMP
F1W-U828M-00-00
Unavailable
20
CLAMP
90464-32801-00
Unavailable
21
RIVET, BLIND
90267-489U6-00
Unavailable
22
BRKT., WATER LOCK
F2C-U755G-00-00
Unavailable
23
NUT, LOCK
F2N-U142L-00-00
Unavailable
24
BASE, CLAMP
F1W-U828M-00-00
Unavailable
25
CLAMP
90464-32801-00
Unavailable
26
RIVET, BLIND
90267-48802-00
Unavailable
27
PLATE
F1S-U757B-01-00
Unavailable
28
VALVE, EXHAUST
F1B-U751G-10-00
Unavailable
29
NUT, LOCK
F2N-U142L-00-00
Unavailable
