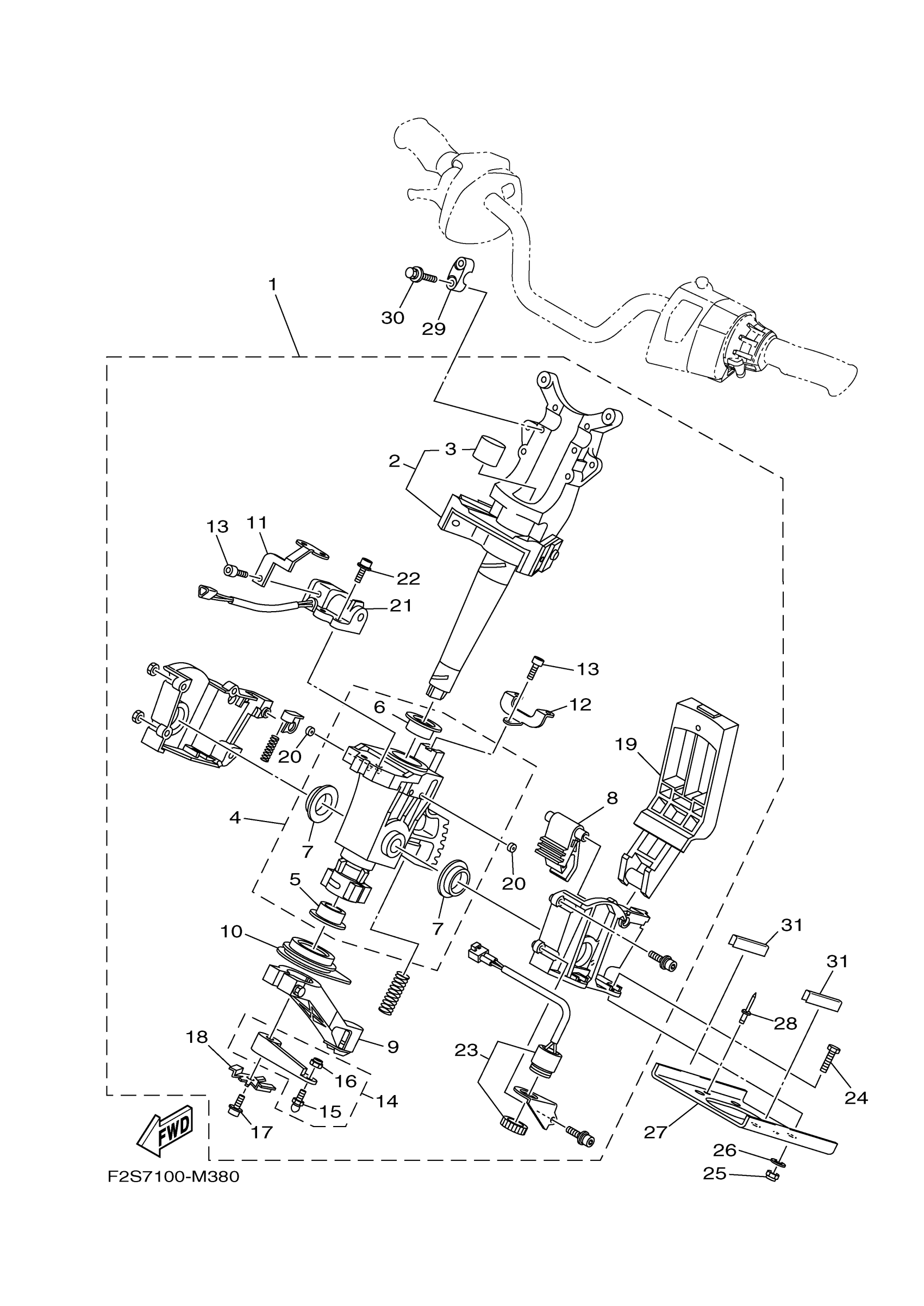

Yamaha FA1800AM (FX CRUISER SHO) F2S7 2013 STEERING 2 Diagram

#

Description
Price

1

STEERING MASTER ASSY

F3J-61400-02-00

Unavailable

2

. SHAFT ASSY

F1W-67410-11-00

$367.63

3

.. PIPE, SEAL

F1W-61435-00-00

$15.43

4

. TUBE & BUSHING SET

F1W-6773D-00-00

$294.10

5

.. BUSH

F1S-6134M-00-00

$10.28

6

. BUSH

F2C-6134M-00-00

$10.99

7

.. BUSH

F1S-6134M-10-00

$10.28

8

. LOCK 1

F1S-61782-00-00

Unavailable

9

. CABLE STOPPER ASSY

F1S-6146A-00-00

$126.46

10

. SEAL, RUBBER

F1S-6143C-00-00

$33.81

11

. STAY 1

F1W-65938-00-00

$22.78

12

. STAY 2

F2S-65939-00-00

$19.10

13

SCREW

F1B-613C1-10-00

Unavailable

14

ARM ASSY.

F1S-6153R-02-00

$88.22

15

STUD, JOINT BALL

EU0-61461-02-00

$11.01

16

NUT, SELF-LOCKING

95720-06300-00

$1.76

17

BOLT

F1W-61355-10-00

Unavailable

18

. PLATE, RETAINING

F1W-6142B-00-00

$18.37

19

. LEVER ASSY

F2S-6151M-00-00

Unavailable

20

. PLUG

F1W-6358B-00-00

$19.10

21

. SENSOR ASSY

F1W-68303-00-00

$585.28

22

. BOLT

F1S-61355-00-00

$10.99

23

BUZZER

F1S-68341-00-00

$110.28

24

BOLT (62K)

97095-08035-00

Unavailable

25

NUT, NYLON (6J8)

95780-08300-00

$10.09

26

WASHER

F1W-U725E-00-00

$11.01

27

PLATE, RETAINING

F1X-U1554-00-00

$52.93

28

RIVET, BLIND

90267-489U6-00

Unavailable

29

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.09

30

BOLT, WITH WASHER

90119-089U1-00

$3.37

31

TRIM

F2S-U5162-00-00

$1.47
