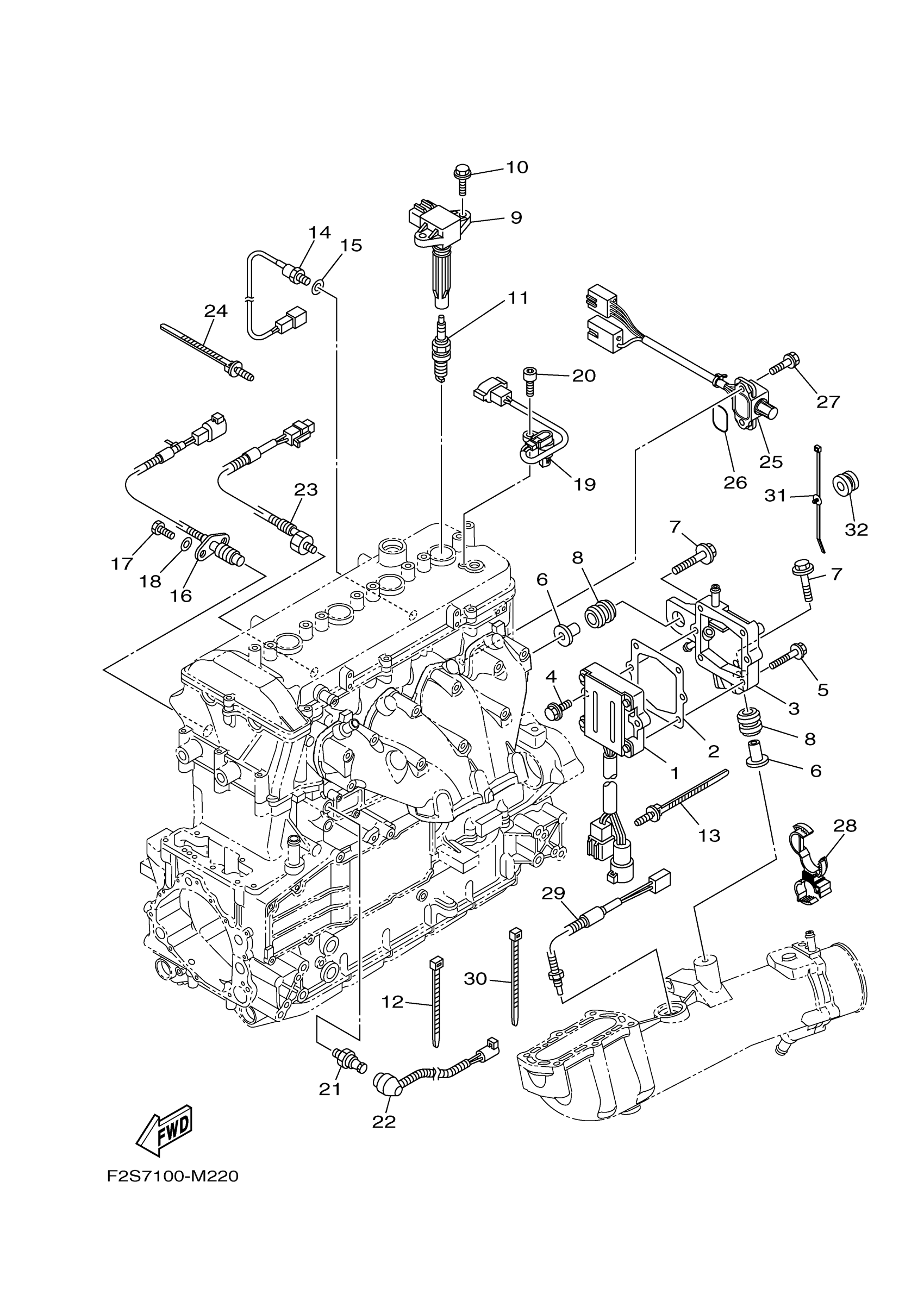

Yamaha FA1800AM (FX CRUISER SHO) F2S7 2013 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

6S5-81960-11-00

$403.02

2

PLATE, RECTIFIER FITTING

6S5-81975-00-00

$11.99

3

COVER, RECTIFIER

6S5-81972-01-94

$148.47

4

BOLT, WITH WASHER

90119-06MA3-00

$2.80

5

BOLT, WITH WASHER

90119-06048-00

$2.27

6

COLLAR

90387-08M37-00

$9.81

7

BOLT, WITH WASHER

90119-08187-00

$3.17

8

GROMMET

90480-22M15-00

$10.18

9

IGNITION COIL ASSY

6S5-82310-10-00

$263.06

10

BOLT,FLANGE (EW2)

90105-06903-00

$5.00

11

PLUG, SPARK (NGK LFR6A-00)

LFR-6A000-00-00

$7.43

12

CLAMP

90465-13M18-00

$1.71

13

CLAMP

90464-20005-00

$2.11

14

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

15

WASHER, PLATE

92990-10600-00

$2.57

16

THERMO SWITCH ASSY

60E-82560-01-00

$104.53

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable

19

SENSOR, CAM POSITION

60E-85896-02-00

$159.08

20

BOLT,SOCKET

91380-06016-00

Unavailable

21

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$62.91

22

LEAD WIRE ASSY

6S5-81315-01-00

$51.50

23

SENSOR, KNOCK

6AN-85780-01-00

$255.95

24

CLAMP

90464-20005-00

$2.11

25

EARTH PLATE COMP.

6CS-8273J-11-00

$180.29

26

O-RING (341)

93210-32172-00

Unavailable

27

BOLT, WITH WASHER

90119-06MA3-00

$2.80

28

CLAMP

90464-20008-00

Unavailable

29

THERMOSENSOR ASSY

6AA-85790-00-00

$104.60

30

CLAMP

90464-20005-00

$2.11

31

CLAMP

90464-31002-00

Unavailable

32

GROMMET 437147470000

90480-20132-00

Unavailable
