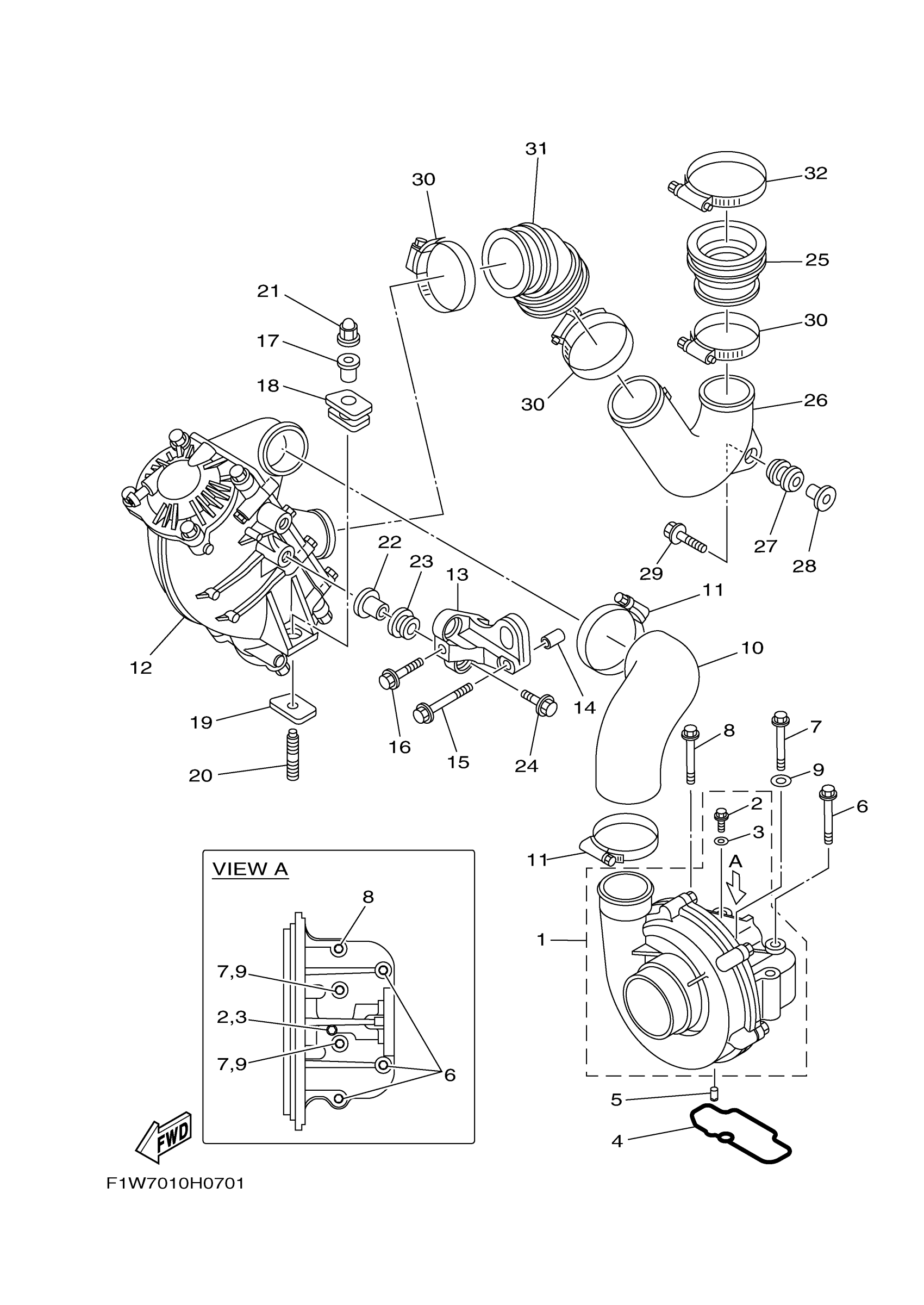

Yamaha FA1800AL (FX CRUISER SHO) F2S1 2012 INTAKE 2 Diagram

#

Description
Price

1

SUPER CHARGER ASSY

6S5-141A0-08-00

Unavailable

2

. BOLT, FLANGE

90105-05020-00

$1.32

3

. GASKET

6S5-14199-00-00

$1.70

4

. O-RING

6S5-1416A-00-00

$11.01

5

PIN, DOWEL

93604-10M03-00

$4.17

6

BOLT, FLANGE

95814-08065-00

$3.29

7

BOLT, FLANGE

95814-06065-00

$1.70

8

BOLT, FLANGE

90105-08188-00

$5.31

9

WASHER, PLATE

90201-06028-00

$2.39

10

PIPE

6S5-14349-00-00

$369.10

11

HOSE CLAMP ASSY

90450-75003-00

$29.40

12

AIR COOLER ASSY.

6S5-13670-10-00

Unavailable

13

BRACKET, AIR COOLE

6S5-13691-12-00

$108.81

14

PIN, DOWEL(4JT)

99590-14016-00

$3.69

15

BOLT, WITH WASHER

90119-10047-00

$7.06

16

BOLT, WITH WASHER

90119-10046-00

$6.18

17

COLLAR

90387-11007-00

$8.07

18

GROMMET

6S5-14435-01-00

$4.41

19

PLATE

6S5-14243-01-00

$8.07

20

BOLT, STUD

90116-10044-00

$11.01

21

NUT, CAP

90176-10001-00

$3.41

22

COLLAR

90387-11008-00

$19.10

23

GROMMET(62L)

90480-21M63-00

Unavailable

24

BOLT, WITH WASHER

90119-10011-00

$5.74

25

PIPE, INTAKE

6S5-13652-00-00

$122.04

26

PIPE, BOOST

6S5-13651-00-00

$155.87

27

GROMMET

90480-22M15-00

$11.01

28

COLLAR

90387-08M37-00

$9.68

29

BOLT, WITH WASHER

90119-08187-00

$2.82

30

HOSE CLAMP ASSY

90450-70005-00

$39.69

31

PIPE

6S5-14148-00-00

$108.81

32

HOSE CLAMP ASSY

90450-70M13-00

$45.57
