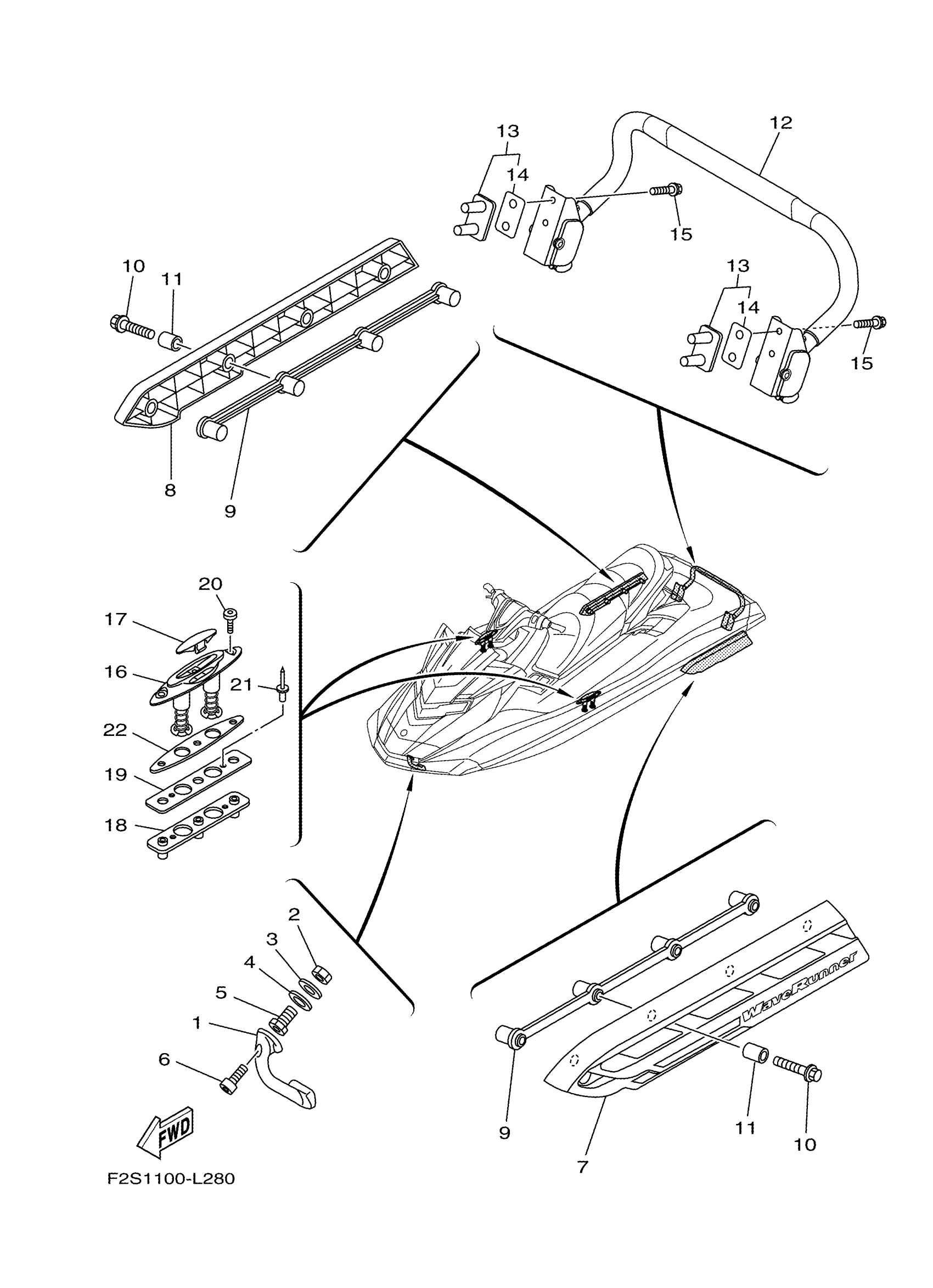

Yamaha FA1800AL (FX CRUISER SHO) F2S1 2012 HULL & DECK 2 Diagram

#

Description
Price

1

BOW EYE 1

F1K-61624-00-00

$42.60

2

NUT.HEX.(COARS)

99780-12600-00

$2.80

3

YBS66-12 WASHER,PLAIN

92990-12200-00

$5.75

4

WASHER

F0X-61637-00-00

$1.29

5

NUT

F0X-61652-01-00

$11.84

6

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

7

SPONSON LH

F2S-U883N-02-00

$50.26

8

SPONSON RH

F2S-U883P-02-00

$37.32

9

BRACKET,STABILIZER

F2S-U883T-00-00

$28.02

10

BOLT,WASHER BASED

90105-088F9-00

$2.91

11

SPACER

F2N-U8169-10-00

$1.15

12

LADDER, STEP ASSY

F2S-U278A-01-00

$218.25

13

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

14

PACKING, BRKT. 1

F2S-U278H-01-00

$4.87

15

BOLT, WITH WASHER

90119-08844-00

$1.29

16

CLEAT ASSY.

F4G-U163A-02-00

Unavailable

17

COVER

F1X-U826D-01-00

$1.87

18

BRACKET

F1X-U826C-10-00

$11.48

19

PACKING

F1X-U2157-00-00

$1.63

20

BOLT

F1W-U2624-00-00

$2.30

21

RIVET, BLIND

90267-489U6-00

$1.37

22

PACKING

F4G-U2284-10-00

$2.87
