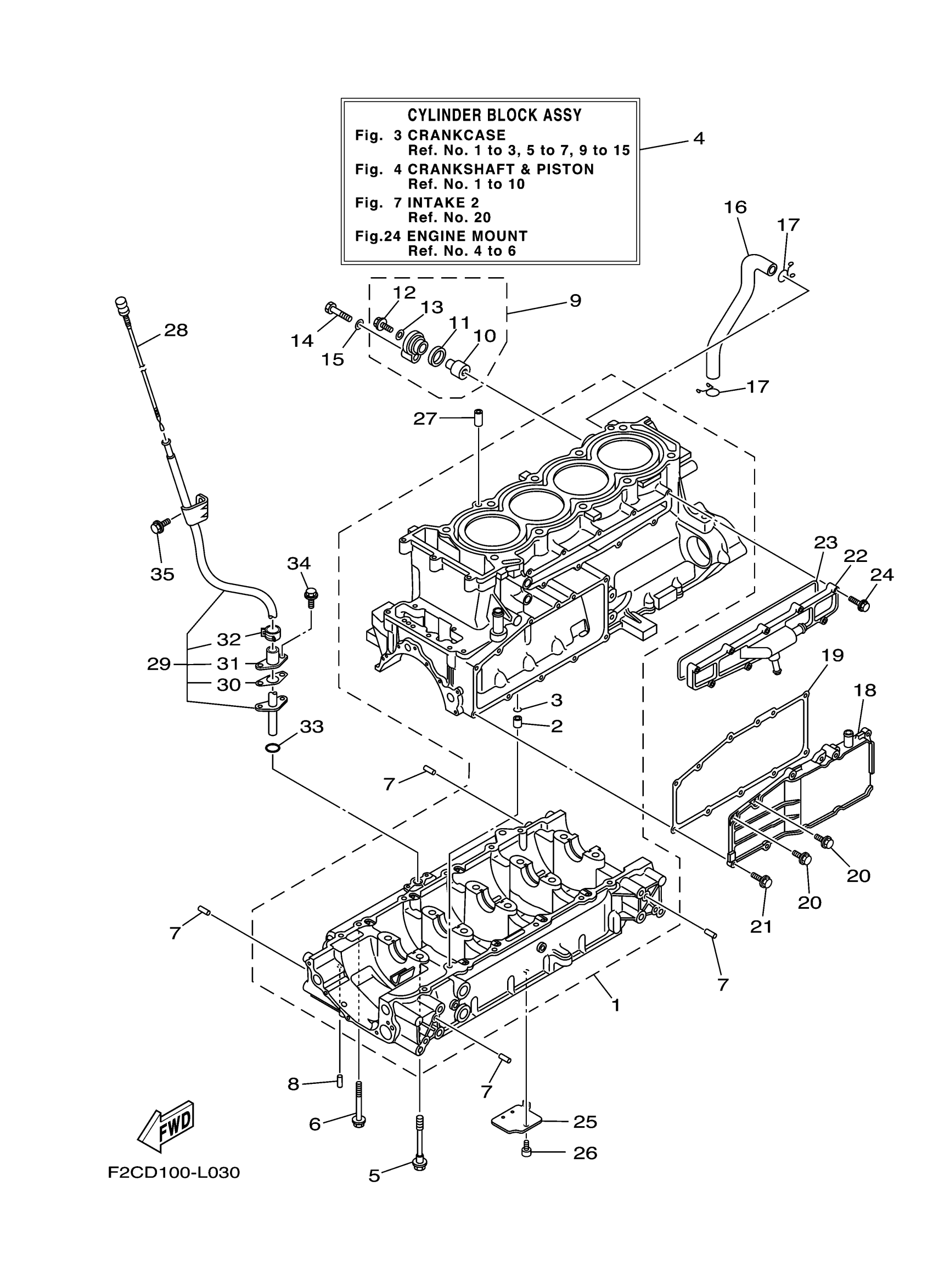

Yamaha FA1800AL (FX CRUISER SHO) F2S1 2012 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

6CS-15100-20-00

$3,910.43

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

O-RING (4G0)

93210-11453-00

$5.47

4

CYLINDER BLOCK ASSY

6CS-W009B-28-94

Unavailable

5

. BOLT, FLANGE

90105-10071-00

$11.01

6

BOLT, FLANGE(3JP)

95814-06070-00

$5.75

7

PIN, DOWEL (614)

93606-12019-00

$3.50

8

PIN, DOWEL

93604-10M03-00

$4.17

9

ANODE COVER ASSY

69J-11301-11-00

$18.49

10

. ANODE

68V-11325-02-00

$16.68

11

GROMMET, ANODE

67F-11328-01-00

$3.66

12

BOLT (689)

90105-06M07-00

$1.82

13

. GASKET

90430-06M03-00

$2.85

14

BOLT, HEXAGON

97095-08040-00

$3.46

15

.. WASHER, PLATE

92990-08600-00

$2.41

16

HOSE

6S5-11377-00-00

$40.28

17

CLIP

90467-190A0-00

$2.16

18

COVER

6S5-1131M-10-8P

$140.28

19

. GASKET

6BH-13557-00-00

$28.49

20

BOLT, FLANGE

95024-06014-00

Unavailable

21

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

22

JOINT, 1 SET

99999-04467-00

Unavailable

23

. GASKET, WATER INLET

6S5-12517-01-00

$20.81

24

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable

25

PLATE, BAFFLE LOWER

6S5-13337-10-00

$3.58

26

BOLT,SOCKET

91317-06012-00

Unavailable

27

PIN, DOWEL(3VD)

99530-10114-00

$2.13

28

PLUG, OIL LEVEL

6S5-15362-01-00

$47.75

29

PIPE, OIL LEVEL

6S5-8572F-10-00

$98.49

30

. PLATE

6BH-1319K-00-00

$7.97

31

SPACER

6CS-85516-00-00

$22.97

32

. CLIP

90467-150A1-00

$3.41

33

O-RING(3LD)

93210-12790-00

Unavailable

34

BOLT

90109-06268-00

$2.80

35

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable
