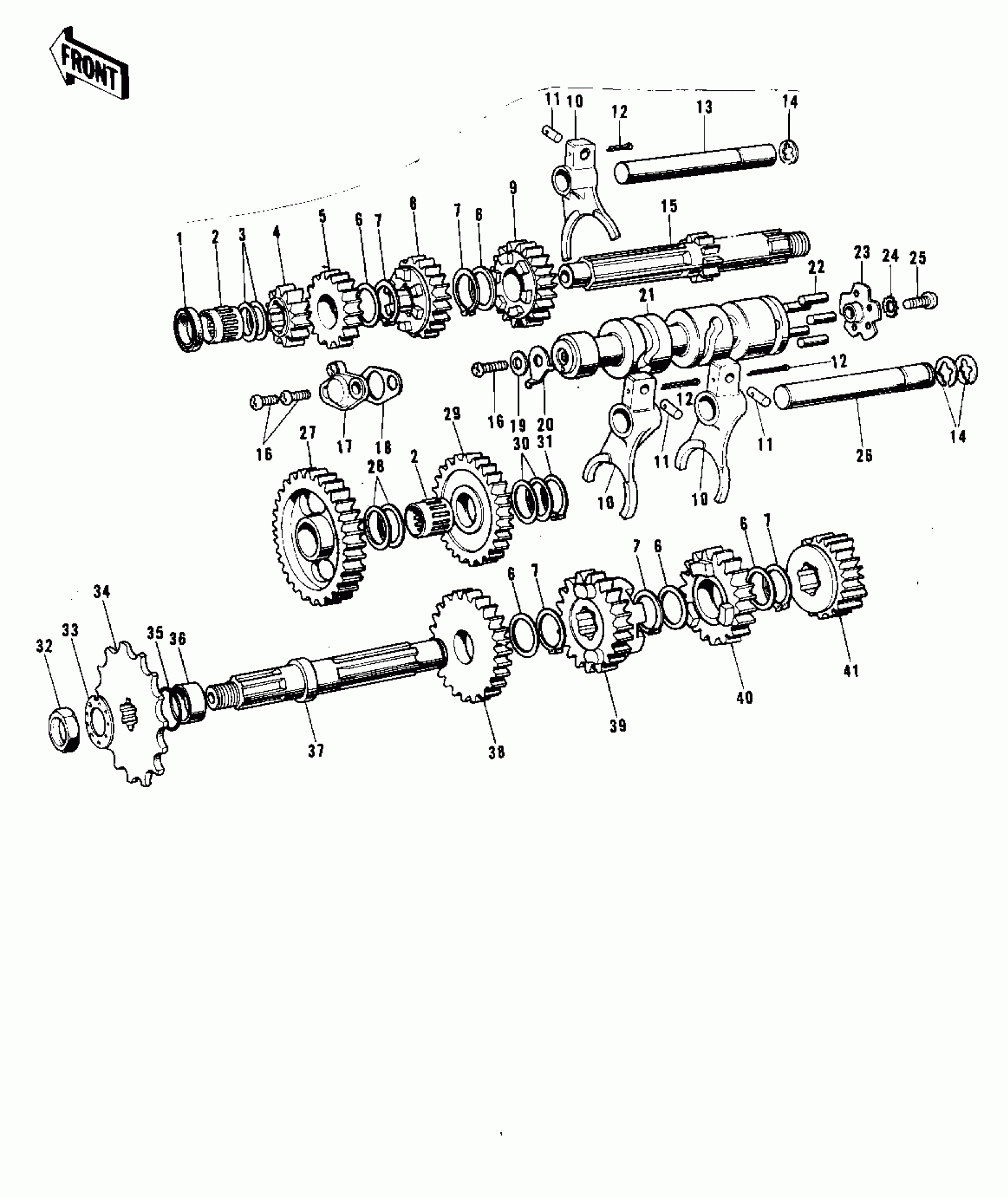

Kawasaki F9-C TRANSMISSION Diagram
#
1
OIL SEAL-CLTH PSH RO
92050-034
Unavailable
2
BEARING-NEEDLE
92046-025
Unavailable
3
WASHER,20.5X30X1,STEEL
92022-112
Unavailable
3
WASHER,20.5X30X1.4
92022-223
Unavailable
4
2ND GEAR-DRIVE SHAFT
13130-021
Unavailable
5
4TH GEAR-DRIVE SHAFT
13134-005
Unavailable
6
WASHER 25MM
92022-076
Unavailable
6
WASHER, SPARK ADVANCER
92022-224
Unavailable
7
RING-SNAP,24MM
92033-026
Unavailable
8
3RD GEAR-DRIVE SHAFT
13132-020
Unavailable
9
TOP GEAR,DRIVE SHAFT
13136-047
Unavailable
10
FORK-SELECTOR
13140-052
Unavailable
10
FORK-SELECTOR
13140-052
Unavailable
11
PIN SELECT FORK GUIDE
92043-005
Unavailable
12
PIN COTTER 3.0X18
550D3018
Unavailable
13
ROD-SHIFT
13209-009
Unavailable
14
CIRCLIP-TYPE-E,10MM
482J0100
Unavailable
15
SHAFT-DRIVE
13127-025
Unavailable
16
SCREW-PAN-CROS,6X16
220B0616
Unavailable
17
SWITCH-NEUTRAL INDICATOR
13151-004
Unavailable
18
GASKET,NEUTRAL SWITCH
13146-002
Unavailable
19
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
20
ROTOR,TOP & NEUTRAL
21007-1003
Unavailable
20~25
DRUM ASSY-GEAR CHANGE
13239-006
Unavailable
21
DRUM ASSY-GEAR CHANGE
13239-006
Unavailable
22
PIN,DOWEL,4X17.8
92042-020
Unavailable
23
PLATE-CHANGE DRUM PI
13142-010
Unavailable
24
WASHER LOCK 6MM
464H0600
Unavailable
25
SCREW-CSK-CROS,6X20
221B0620
Unavailable
26
ROD-SHIFT
13209-010
Unavailable
27
LOW GEAR-OUTPUT SHAF
13129-042
Unavailable
28
WASHER THRUST
92022-113
Unavailable
29
IDLE GEAR-KICKSTARTE
13073-005
Unavailable
30
WASHER,20.5X30X1,STEEL
92022-112
Unavailable
30
WASHER,20.5X30X0.5,STEEL
92022-144
Unavailable
31
CIRCLIP-TYPE-C,19MM
480J1900
Unavailable
32
NUT,18MM
92015-019
Unavailable
33
WASHER,LOCK,18MM
92024-067
Unavailable
33
WASHER,LOCK,18MM
92024-067
Unavailable
34
ENGINE SPROCKET 14T
13144-017
Unavailable
34
ENG SPROCKET 13T (OP
13144-043
Unavailable
34
ENGINE SPROCKET 15T
13144-025
Unavailable
35
RING-O
92055-035
Unavailable
36
COLLAR-ENG SPROKET
92027-163
Unavailable
37
SHAFT-OUTPUT
13128-027
Unavailable
38
2ND GEAR-OUTPUT SHAF
13131-024
Unavailable
39
4TH GEAR-OUTPUT SHAF
13135-009
Unavailable
40
3RD GEAR-OUTPUT SHAF
13133-019
Unavailable
41
TOP GEAR-OUTPUT SHAF
13137-013
Unavailable
