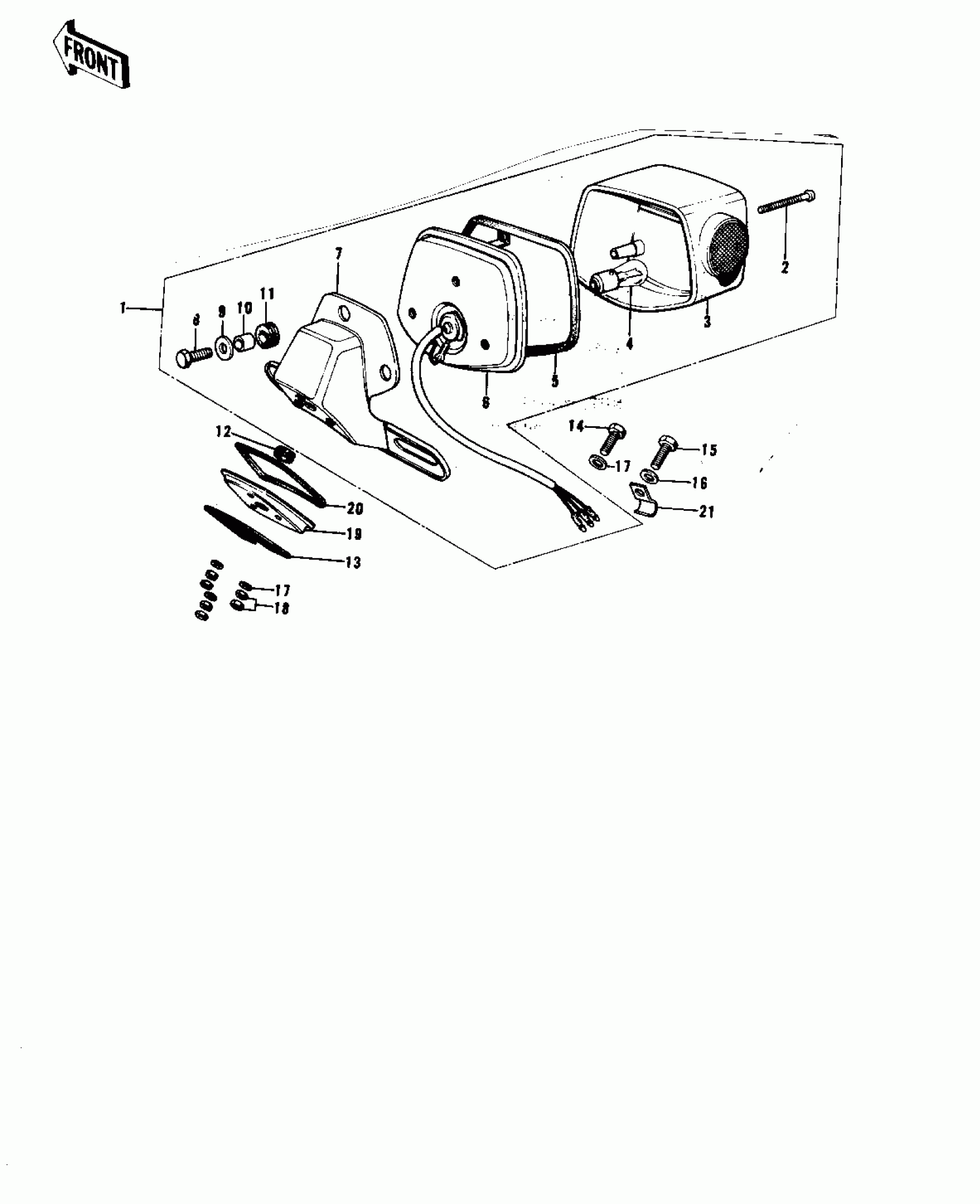

Kawasaki F9-C TAILLIGHT Diagram

#

Description
Price

1

LAMP ASSY,TAIL,F.BLK

23024-046-21

$94.49

2

SCREW

220R0455

$4.44

2

SCREW

220R0455

$4.44

2

SCREW PAN HEAD 4X50

220E0450

Unavailable

3

LENS,TAIL LAMP

23026-028

Unavailable

4

BULB,6V 32/3CP

92069-074

Unavailable

5

GASKET,TAIL LAMP LENS

23028-019

Unavailable

6

BODY COMP TAIL LAMP

23027-1018

Unavailable

7

BKT,LICENSE PIT,BLACK

23036-036-21

$28.59

8

BOLT-UPSET,6X20

112G0620

Unavailable

8

BOLT-UPSET,6X20

112G0620

Unavailable

9

WASHER,6.5X20X1.6

92022-125

$1.25

10

COLLAR,6.8X10X8.5

92027-129

$3.97

11

DAMPER RUBBER

92075-076

$3.97

12

GROMMET,10MM

92071-019

$3.10

13

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable

14

BOLT-HEX HEAD,6X32

110N0632

Unavailable

14

BOLT-HEX HEAD,6X32

110N0632

Unavailable

14

BOLT-UPSET

112G0645

Unavailable

15

BOLT,HEX HEAD,6X50

110G0650

Unavailable

16

WASHER PLAIN

92022-024

$2.92

17

WASHER,6.5X20X1.6

92022-125

$1.25

18

NUT 6MM

312B0600

Unavailable

18

NUT 6MM

311B0600

Unavailable

19

STAY, TAIL LAMP

35031-007

Unavailable

20

DAMPER RUBBER,TAIL

35016-006

Unavailable

21

CLIP WIRING HARNESS

35024-002

Unavailable
