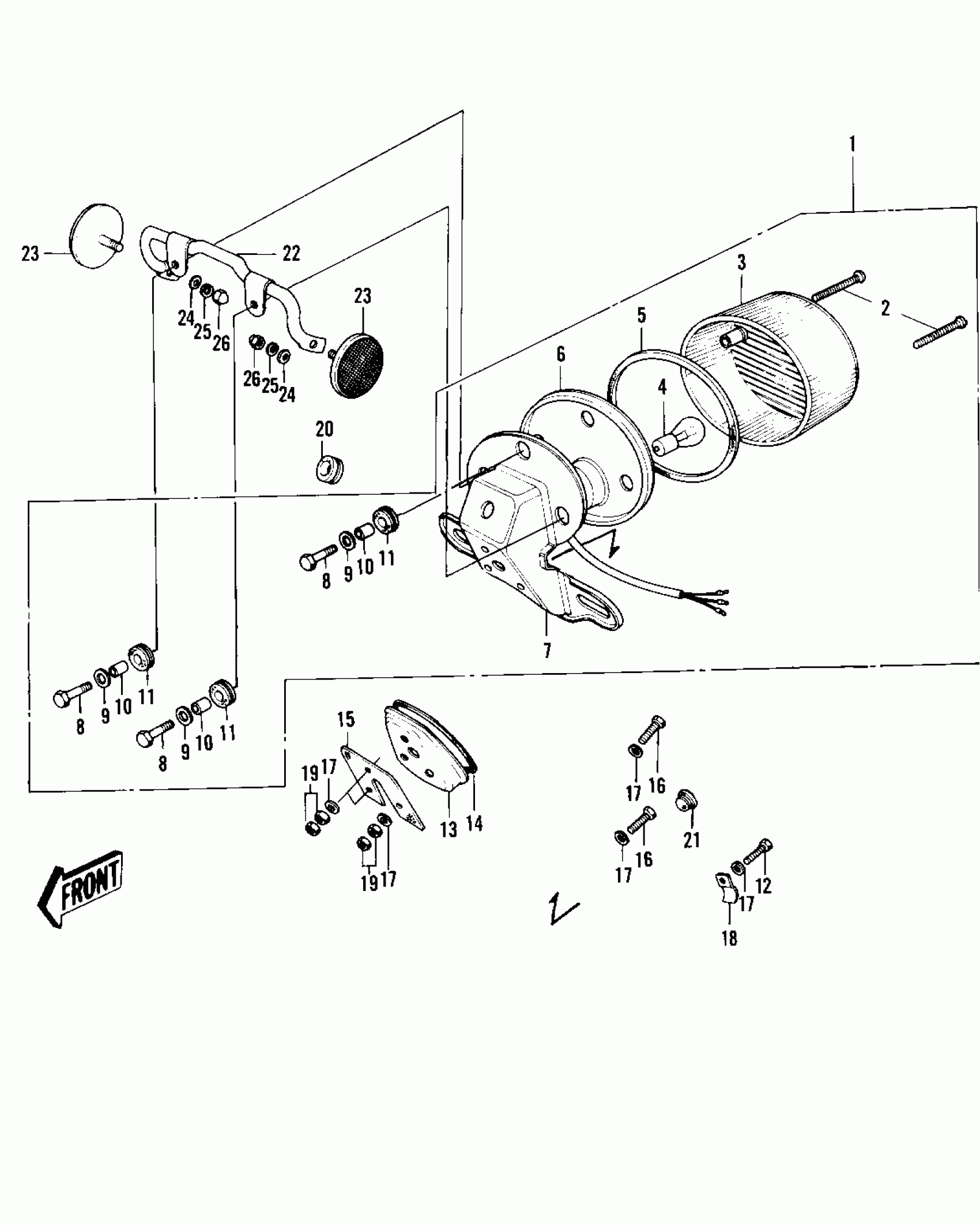

Kawasaki F9-C TAILLIGHT (F9-A) Diagram

#

Description
Price

1

LAMP ASSY,TAIL,BLACK

23024-035-21

$97.68

2

SCREW-PAN HEAD,4X35

220E0435A

Unavailable

3

LENS-TAIL LAMP

23026-023

Unavailable

4

BULB,6V 17/5.3W

92069-028

Unavailable

5

GASKET-TAIL LAMP LENS

23028-018

Unavailable

6

CASE,TAIL LAMP

23027-030

Unavailable

6

CASE,TAIL LAMP

23027-030

Unavailable

7

BKT-LICENSE PLT.BLACK

23036-019-21

$91.59

8

BOLT 6X22

112B0622

Unavailable

9

WASHER,6.5X20X1.6

92022-125

$1.25

10

COLLAR,6.8X10X8.5

92027-129

$3.97

11

DAMPER RUBBER

92075-076

$3.97

12

BOLT,EXCLUSIVE

92001-1456

Unavailable

13

STAY,TAIL LAMP

35031-006

$7.41

14

DAMPER RUBBER,TAIL

35016-006

Unavailable

15

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable

16

BOLT-UPSET,6X40

112G0640

Unavailable

17

WASHER,6.5X20X1.6

92022-125

$1.25

18

CLIP WIRING HARNESS

35024-002

Unavailable

19

NUT 6MM

312B0600

Unavailable

20

GROMMET,10MM

92071-019

$3.10

21

PLUG,RUBBER

92074-025

$1.29

22

BRACKET-REFLECTOR

28013-005

$18.64

23

REFLECTOR-REFLEX,REAR

28012-008

Unavailable

24

WASHER-PLAIN,5MM

411B0500

Unavailable

25

WASHER SPRING 5MM

461F0500

Unavailable

26

NUT-CAP,5MM

322N0500

Unavailable
