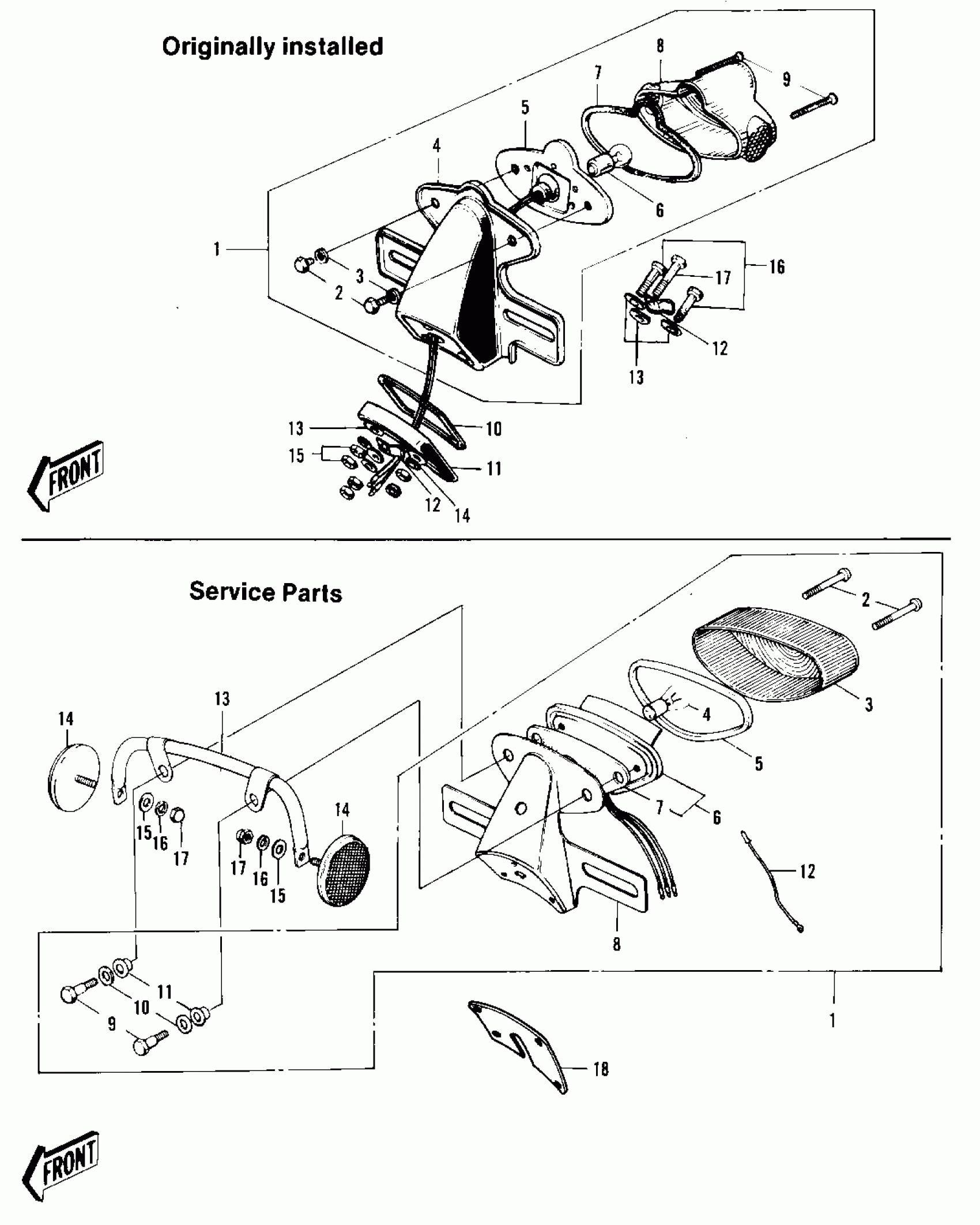

Kawasaki F9-C TAILLIGHT (F9) Diagram
#
1
LAMP ASSY-TAIL,BLACK
23024-019-21
Unavailable
2
.BOLT HEX HEAD 5X10
110N0510A
Unavailable
3
WASHER SPRING 5MM
461F0500
Unavailable
4
BKT LICENSE PLT BLACK
23036-007-10
Unavailable
5
SOCKET TAIL LAMP
23027-009
Unavailable
6
BULB 6V 3/21CP
92069-023
Unavailable
7
GASKET TAIL LAMP
23028-008
Unavailable
8
LENS TAIL LAMP
23026-010
Unavailable
9
SCREW PAN HEAD 4X50
220E0450
Unavailable
10
STAY-TAIL LAMP
35031-005
Unavailable
11
DAMPER RUBBER
35016-004
Unavailable
12
CLIP WIRING HARNESS
35024-002
Unavailable
13
WASHER,6.5X20X1.6
92022-125
Unavailable
14
WASHER SPRING 6MM
461F0600
Unavailable
15
NUT 6MM
312B0600
Unavailable
16
BOLT-HEX HEAD,6X32
110N0632
Unavailable
17
BOLT-UPSET,6X40
112G0640
Unavailable
1
LAMP ASSY-TAIL,BLACK
23024-019-21
Unavailable
2
SCREW
220R0455
Unavailable
2
SCREW
220R0455
Unavailable
3
LENS-TAIL LAMP
23026-022
Unavailable
4
BULB 6V 3/21CP
92069-023
Unavailable
5
GASKET-TAIL LAMP LENS
23028-016
Unavailable
6
CASE-TAIL LAMP
23027-029
Unavailable
7
GASKET-TAIL LAMP CASE
23028-015
Unavailable
8
BKT-LICENSE PLT,BLACK
23036-014-21
Unavailable
9
BOLT
92001-111
Unavailable
10
WASHER,8.5X20X1.6
92022-1561
Unavailable
11
DAMPER RUBBER
92075-091
Unavailable
12
WIRE IGNITION LEAD
26011-014
Unavailable
13
BRACKET-REFLECTOR
28013-002
Unavailable
14
REFLECTOR-REFLEX,REAR
28012-008
Unavailable
15
WASHER-PLAIN,5MM
411B0500
Unavailable
16
WASHER SPRING 5MM
461F0500
Unavailable
17
NUT-CAP,5MM
322N0500
Unavailable
18
DAMPER-TAIL LAMP SHCK
35039-005
Unavailable
18
DAMPER-TAIL LAMP SHCK
35039-005
Unavailable
