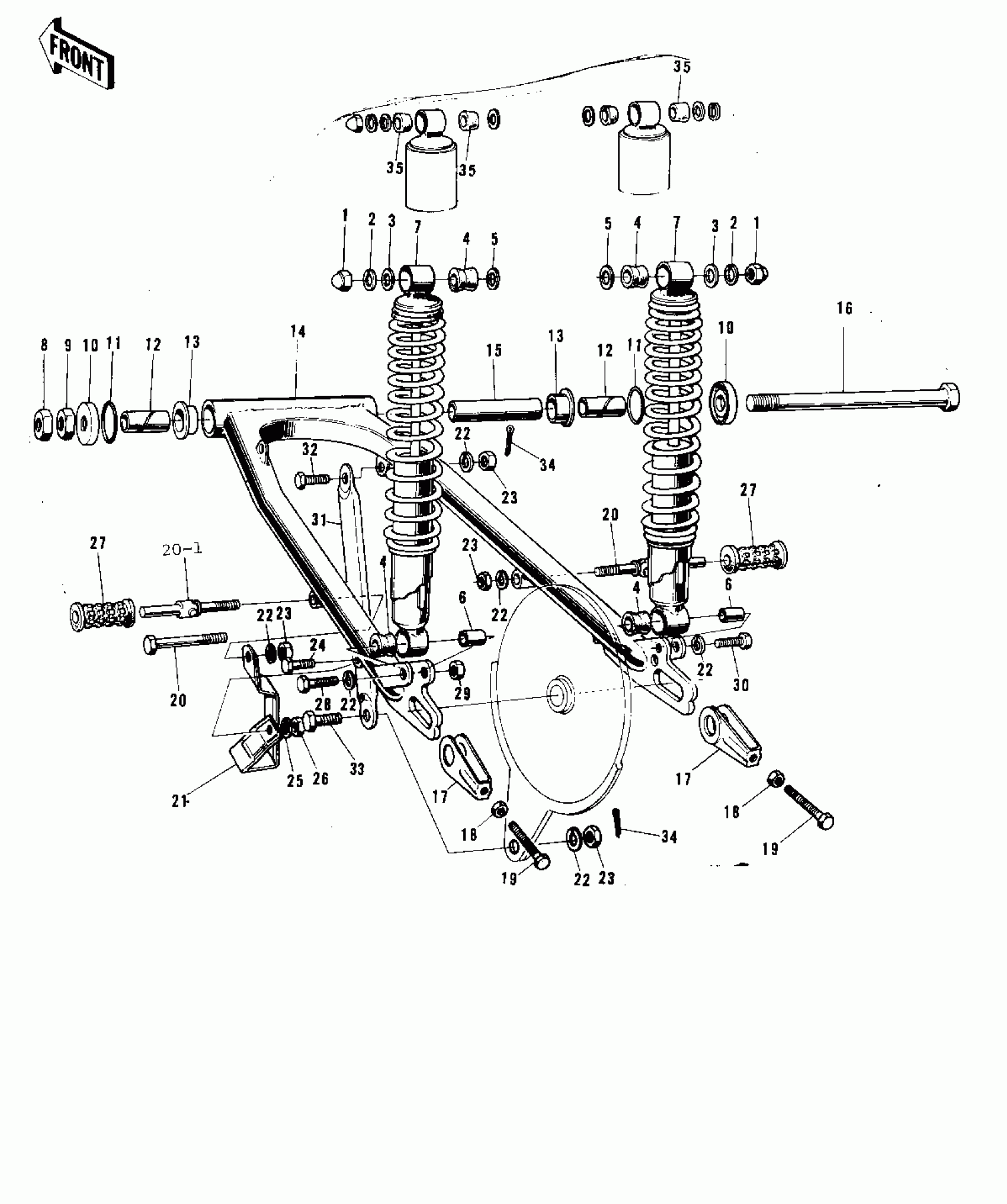

Kawasaki F9-C SWING ARM/SHOCK ABSORBERS ('72-'73 F9/F9 Diagram
#
1
NUT,CAP,10MM
92020-003
Unavailable
2
WASHER SPRING 10MM
461F1000
Unavailable
3
WASHER,10.5X26X2.3
92022-044
Unavailable
4
BUSH-SHOCK ABSORBER
45017-005
Unavailable
4
DAMPER,SHOCKABSORBER
92075-1020
Unavailable
5
WASHER-PLAIN-SMALL,14MM
410B1400
Unavailable
6
COLLAR,SHOCKABSORBER
45016-003
Unavailable
4,6,7
SHOCK ABSBR RR
45014-069
Unavailable
4,6,7,
SHOCK ABSBR RR
45014-076
Unavailable
8
NUT-HEX-FINE,14MM
315B1400
Unavailable
9
NUT,14MM
314B1400
Unavailable
10
CAP-SWING ARM
33035-004
Unavailable
11
"0" RING,30MM
671B2530
Unavailable
12
SLEEVE-SWING ARM,SHRT
33034-013
Unavailable
13
BUSHING-SWING ARM
33033-009
Unavailable
14
ARM-SWING
33001-028
Unavailable
15
SLEEVE-SWING ARM,LONG
33034-012
Unavailable
16
SHAFT-SWING ARM PIVO
33032-025
Unavailable
17
ADJUSTER-CHAIN
33040-043
Unavailable
18
NUT 8MM
312B0800
Unavailable
19
BOLT,8X50
92001-1399
Unavailable
20
BOLT,HEX HEAD,10X50
92001-1254
Unavailable
20-1,2
BAR SET-REAR FOOTREST
34030-001
Unavailable
20-1
FOOTREST BAR REAR
34027-013
Unavailable
21
GUARD-CHAIN
55020-009
Unavailable
23
NUT-HEX-FINE,10MM
314B1000
Unavailable
24
BOLT-SMALL-UPSET
115B0832
Unavailable
25
WASHER SPRING 8MM
461F0800
Unavailable
26
NUT,8MM
311B0800
Unavailable
27
RUBBER REAR FOOTREST
92076-008
Unavailable
28
BOLT HEX HEAD 10X45
113N1045
Unavailable
29
NUT-HEX-FINE,10MM
315B1000
Unavailable
30
BOLT HEX HEAD 10X35
113N1035
Unavailable
31
TORQUE LINK REAR BRK
43007-018
Unavailable
32
BOLT,10X25
92003-017
Unavailable
33
BOLT,10X32
92003-003
Unavailable
34
PIN COTTER 2.0X15
550D2015
Unavailable
35
BUSH SHCK ABS RUBBER
45017-001
Unavailable
