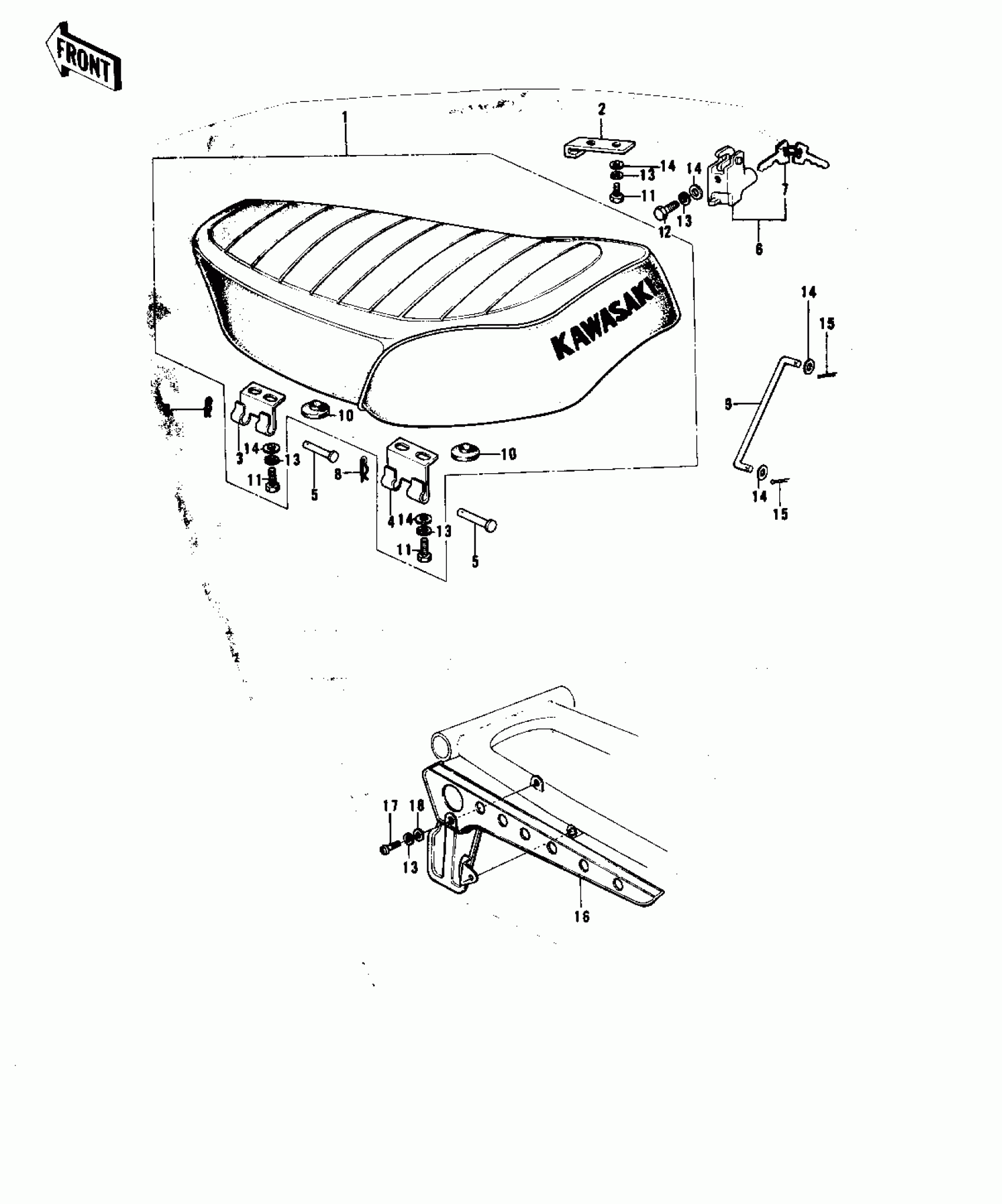

Kawasaki F9-C SEAT/CHAIN COVER ('74-'75 F9-B/F9-C 350) Diagram
#
Description
Price
1
SEAT ASSY,DUAL
53002-055
Unavailable
2
HOOK,SEAT
53008-022
Unavailable
3
HINGE
53009-015
Unavailable
4
HINGE
53009-016
Unavailable
5
PIN,6X48
53011-002
Unavailable
6
HOOK ASSY,SEAT LOCK
53045-016
Unavailable
7
KEY SET,#411
27008-063-11
Unavailable
7
KEY SET,#412
27008-063-12
Unavailable
7
KEY SET,#413
27008-063-13
Unavailable
7
KEY SET,#414
27008-063-14
Unavailable
7
KEY SET,#415
27008-063-15
Unavailable
7
KEY SET,#416
27008-063-16
Unavailable
7
KEY SET,#417
27008-063-17
Unavailable
7
KEY SET,#418
27008-063-18
Unavailable
7
KEY SET,#419
27008-063-19
Unavailable
7
KEY SET,#420
27008-063-20
Unavailable
8
COTTER PIN
92041-003
Unavailable
9
STOPPER,SEAT
53054-006
Unavailable
10
DAMPER,DUAL SEAT
92075-023
Unavailable
11
BOLT-UPSET 6X14
112B0614
Unavailable
11
BOLT-UPSET 6X14
112B0614
Unavailable
12
BOLT-UPSET,6X12
112G0612
Unavailable
12
BOLT-UPSET,6X12
112G0612
Unavailable
12
BOLT-UPSET 6X14
112B0614
Unavailable
13
WASHER SPRING 6MM
461F0600
Unavailable
14
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
15
PIN-COTTER,1.6X15
550D1615
Unavailable
16
CASE-CHAIN
36014-030-21
Unavailable
17
SCREW-PAN-CROS,6X14
220B0614
Unavailable
18
WASHER,6.5X20X1.6
92022-125
Unavailable
