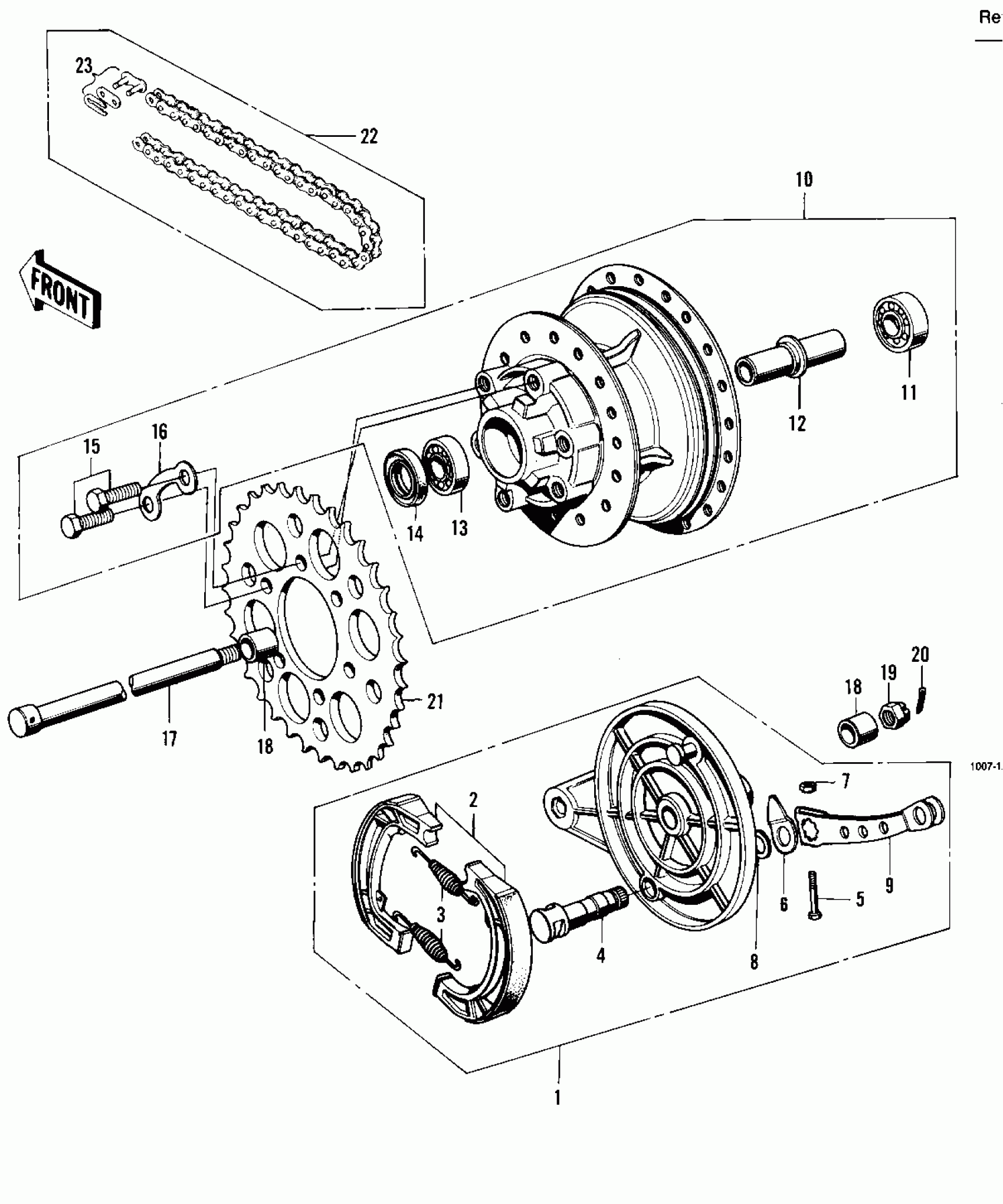

Kawasaki F9-C REAR HUB/BRAKE/CHAIN ('74-'75 F9-B/F9-C Diagram

#

Description
Price

1

PANEL-ASY,RR BRK,BUF

42006-042-80

$158.31

2

SHOE,BRAKE

42019-011

$38.11

2

SHOE,BRAKE

42019-011

$38.11

3

SPRING,BRAKE SHOE

42020-004

$6.75

4

CAM SHAFT,RR BRK PNL

42026-016

$13.07

5

BOLT-UPSET,6X40

112G0640

Unavailable

6

INDICATOR,RR BRK PNL

41085-006

$4.31

7

NUT,6MM

41072-007

$3.12

8

SEAL,BRAKE CAM

41051-001

$3.39

9

LEVER,REAR BRAKE CAM

42029-037

Unavailable

9

LEVER,REAR BRAKE CAM

42029-037

Unavailable

10

DRUM ASSY,RR BRK,BUF

42005-039-80

$300.59

11

BEARING BALL #6303Z

601B6303Z

Unavailable

12

.SPACER-RR HUB BEARIN

42010-015

$11.86

13

BEARING-BALL,#6303C3

601B6303

$6.58

14

OIL SEAL FRONT AXLE

654A254708

$29.84

15

BOLT-HEX HEAD,10X25

92001-087

Unavailable

16

WASHER LOCK

92088-007

$12.61

17

AXLE-REAR

42031-036

$25.12

18

COLLAR-REAR AXLE

42032-031

$7.42

19

NUT,CASTLE,16MM

42045-014

$7.86

20

PIN-COTTER,4.0X35

550D4035

$1.81

21

REAR SPROCKET,41T

42041-111

$107.61

21

REAR SPROCKET,43T

42041-112

$107.83

21

REAR SPROCKET,45T

42041-113

$129.08

21

REAR SPROCKET,47T

42041-114

$117.32

22

DR CHAIN 525X92H

695X5292

Unavailable

23

CHAIN JOINT 525

92058-006

Unavailable
