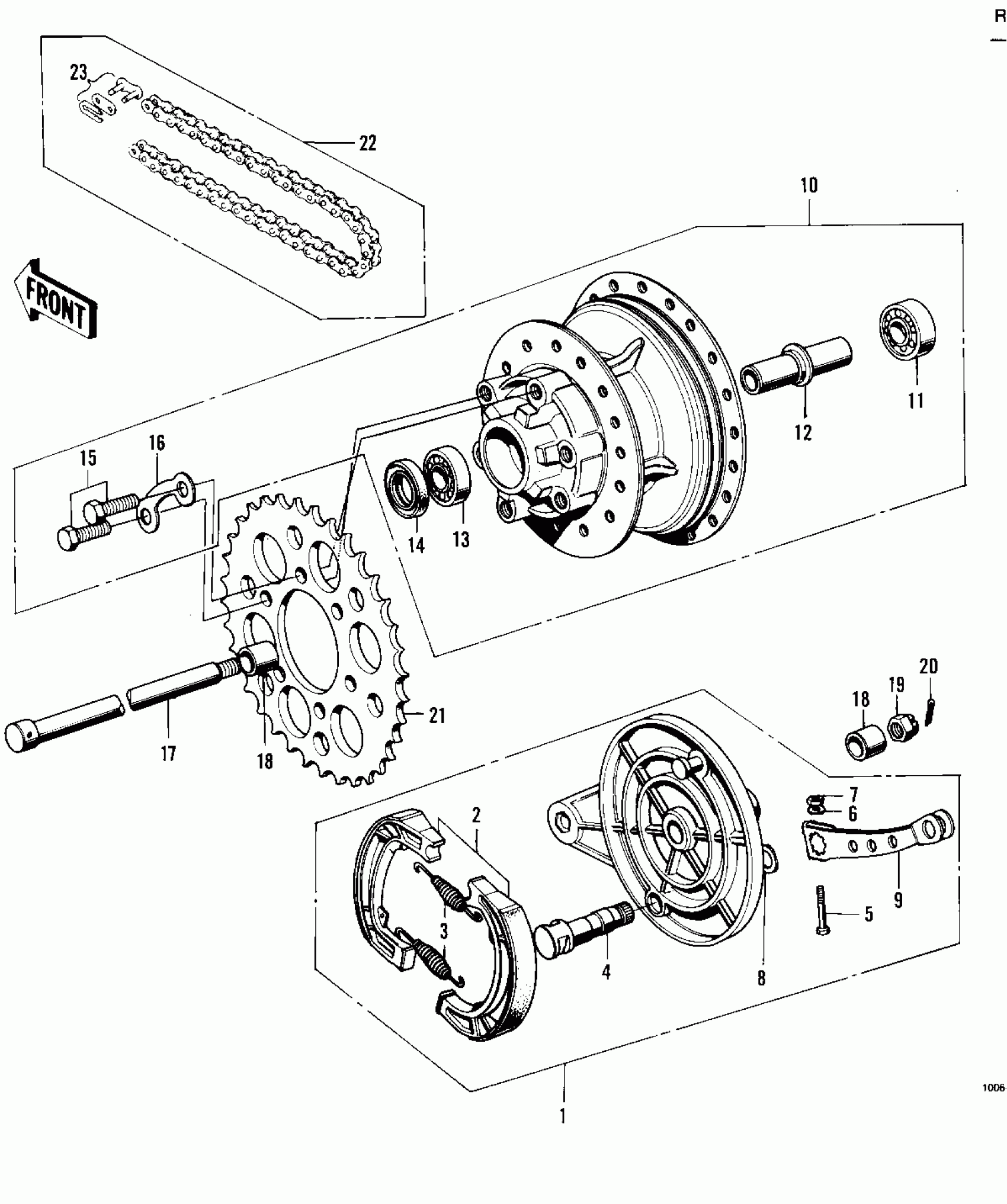

Kawasaki F9-C REAR HUB/BRAKE/CHAIN ('72-'73 F9/F9-A 35 Diagram
#
1
PANEL-ASY,RR BRK,BLK
42006-016-21
Unavailable
1
PANEL-ASY,RR BRK,BLK
42006-016-21
Unavailable
2
SHOE,BRAKE
42019-011
Unavailable
2
SHOE,BRAKE
42019-011
Unavailable
3
SPRING,BRAKE SHOE
42020-004
Unavailable
4
CAM SHAFT,REAR BRAKE
42026-021
Unavailable
4
CAM SHAFT,REAR BRAKE
42026-021
Unavailable
5
BOLT-UPSET,6X40
112G0640
Unavailable
6
WASHER PLAIN 6MM
411B0600
Unavailable
7
NUT 6MM
311B0600
Unavailable
8
SEAL,BRAKE CAM
41051-001
Unavailable
9
LEVER,REAR BRAKE CAM
42029-037
Unavailable
9
LEVER,REAR BRAKE CAM
42029-037
Unavailable
10
DRUM ASSY-REAR BRAKE
42005-028
Unavailable
10
DRUM ASSY,RR BRK,BUF
42005-039-80
Unavailable
11
BEARING BALL #6303Z
601B6303Z
Unavailable
12
.SPACER-RR HUB BEARIN
42010-015
Unavailable
13
BEARING-BALL,#6303C3
601B6303
Unavailable
14
OIL SEAL FRONT AXLE
654A254708
Unavailable
15
BOLT-HEX HEAD,10X25
92001-087
Unavailable
16
WASHER LOCK
92088-007
Unavailable
17
AXLE-REAR
42031-030
Unavailable
17
AXLE-REAR
42031-036
Unavailable
18
COLLAR-REAR AXLE
42032-031
Unavailable
19
NUT,CASTLE,16MM
42045-014
Unavailable
20
PIN-COTTER,4.0X35
550D4035
Unavailable
21
REAR SPROCKET 41T
42041-080
Unavailable
21
REAR SPROCKET,41T
42041-111
Unavailable
21
RR SPROCKET 43T (OPT
42041-089
Unavailable
21
REAR SPROCKET,43T
42041-112
Unavailable
21
REAR SPROCKET,45T
42041-088
Unavailable
21
REAR SPROCKET,45T
42041-113
Unavailable
21
RR SPROCKET 47T (OPT
42041-090
Unavailable
21
REAR SPROCKET,47T
42041-114
Unavailable
22
UNAVAILABLE IN PRICE BOOK
695Z5294
Unavailable
22
CHAIN,525X94 SH
92057-029
Unavailable
22
DR CHAIN 525X92H
695X5292
Unavailable
23
CHAIN JOINT 525
92058-006
Unavailable
