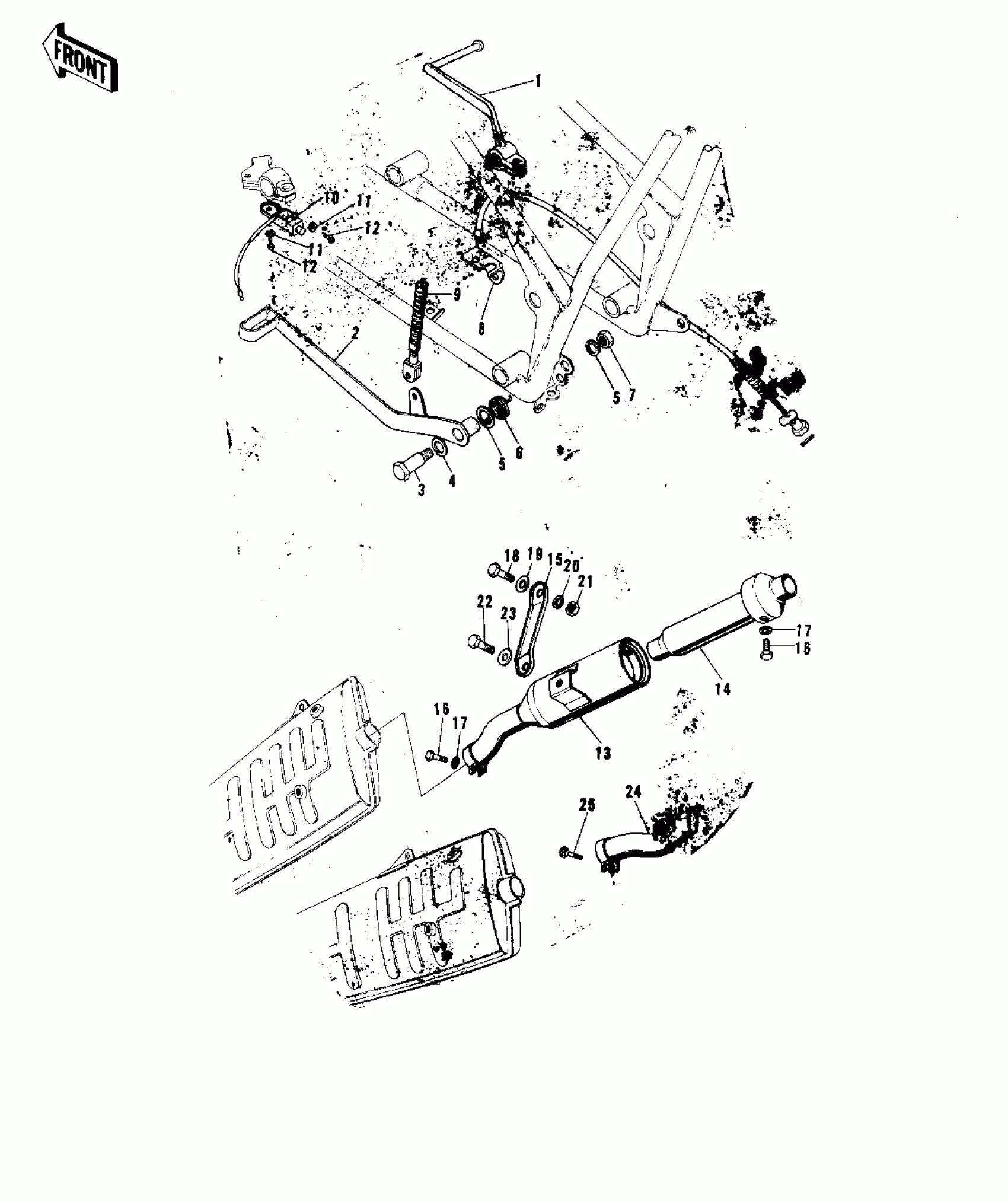

Kawasaki F9-C OPTIONAL PARTS Diagram

#

Description

Price

1

PEDAL GR CHG RH OPT

13156-037

Unavailable

2

PEDAL-BRAKE (OPT)

43001-040

Unavailable

3

BOLT-BRAKE PEDAL

92001-092

Unavailable

4

WASHER BRAKE PEDAL

92022-085

Unavailable

5

WASHER-PLAIN,10MM

411B1000

Unavailable

6

SPRING-BRAKE PEDAL

43005-014

Unavailable

7

NUT-HEX-FINE,10MM

315B1000

Unavailable

8

BRACKET-REAR BRAKE CABLE

32087-012

Unavailable

9

CABLE-REAR BRAKE

54022-019

Unavailable

10~12

SWITCH ASSY-ENG STOP

46027-006

Unavailable

11

WASHER SPRING 3MM

461F0300

Unavailable

12

SCREW-PAN-CROS,3X6

220B0306

Unavailable

13

TAIL PIECE

18048-013

Unavailable

14

SPARK ARRESTER COMP

18033-044

Unavailable

15

BRACKET-MUFFLER

18024-016

Unavailable

16

BOLT,6X10

112G0610

Unavailable

16

BOLT,6X10

112G0610

Unavailable

17

WASHER LOCK 6MM

464H0600

Unavailable

18

BOLT-HEX HEAD,10X35

110B1035

Unavailable

19

WASHER PLAIN 10MM

410B1000

Unavailable

20

WASHER SPRING 10MM

461F1000

Unavailable

21

NUT 10MM

312B1000

Unavailable

22

BOLT-SMALL-UPSET,8X14

115B0814

Unavailable

23

WASHER SPRING 8MM

461F0800

Unavailable

24

TAIL PIECE

18048-016

Unavailable

25

SCREW-PAN-CROS,6X20,WHITE

220B0620

Unavailable
