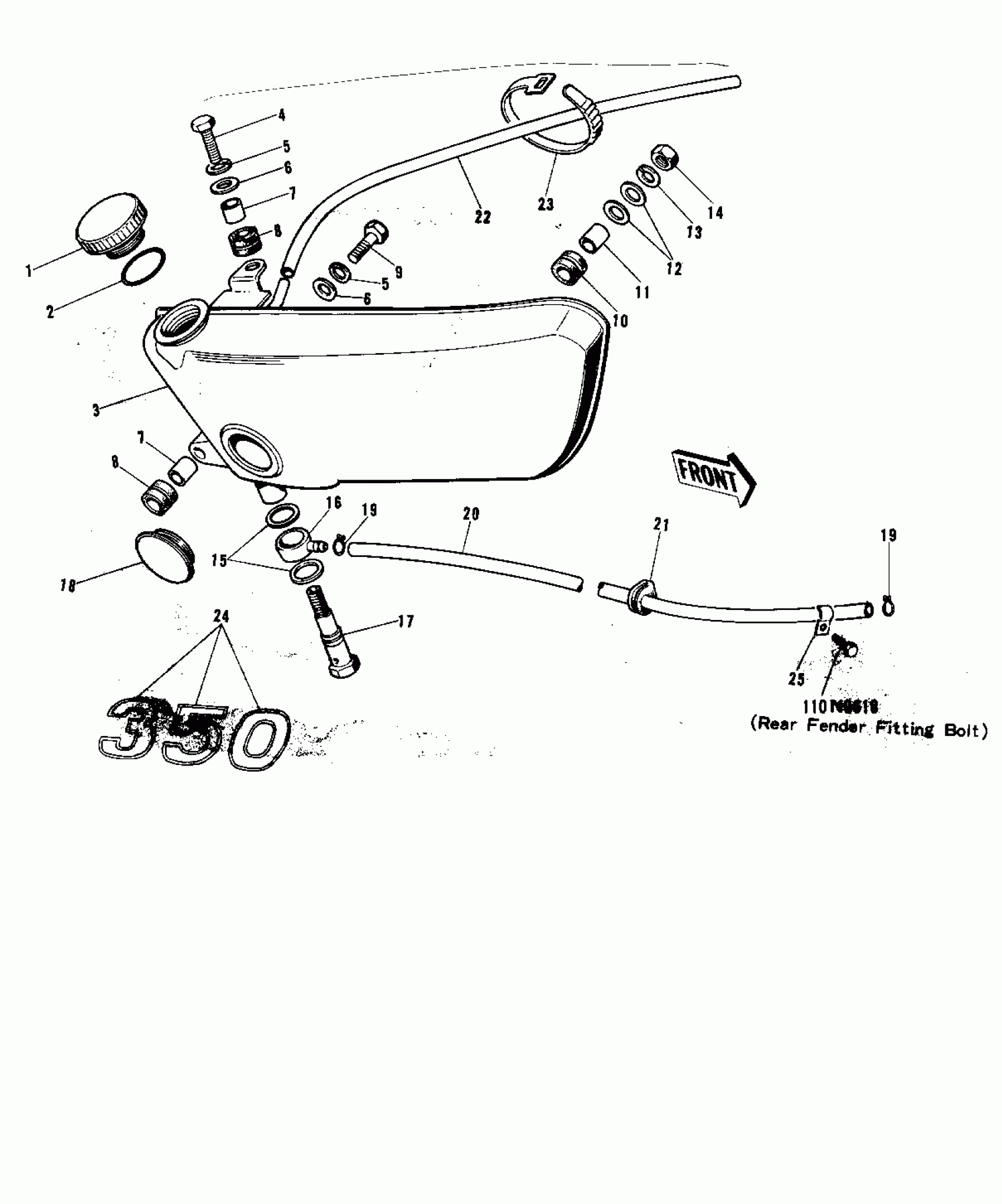

Kawasaki F9-C OIL TANK ('74-'75 F9-B/F9-C 350) Diagram
#
Description
Price
1
CAP OIL TANK
52003-009
Unavailable
2
"0" RING,36MM
670B3036
Unavailable
3
TANK,OIL,F.BLACK
52001-020-21
Unavailable
4
BOLT-UPSET
112G0625
Unavailable
5
WASHER SPRING 6MM
461F0600
Unavailable
6
WASHER,6.5X20X1.6
92022-125
Unavailable
7
COLLAR
92027-103
Unavailable
8
DAMPER RUBBER
92075-051
Unavailable
9
BOLT-UPSET
112G0618
Unavailable
10
DAMPER RUBBER-MUFFLER
18063-005
Unavailable
11
COLLAR
92027-102
Unavailable
12
WASHER FUEL TANK FIT
92022-035
Unavailable
13
WASHER SPRING 8MM
461F0800
Unavailable
14
NUT,8MM
311B0800
Unavailable
15
GASKET,10,2X15X1.5T
11009-1146
Unavailable
16
CONNECTOR BANJO
92061-003
Unavailable
17
BOLT OIL TANK BANJO
92060-001
Unavailable
18
GAUGE OIL LEVEL
52015-001
Unavailable
19
CLAMP,TUBE
92037-010
Unavailable
20
PIPE
92059-064
Unavailable
21
GROMMET-OIL PIPE
92071-041
Unavailable
22
TUBE-VINYL,5X540
700Q05540
Unavailable
23
BAND,L=123
92072-030
Unavailable
24
EMBLEM,OIL TANK
56018-132
Unavailable
24
EMBLEM,OIL TANK
56018-188
Unavailable
25
CLAMP CABLE
92037-020
Unavailable
