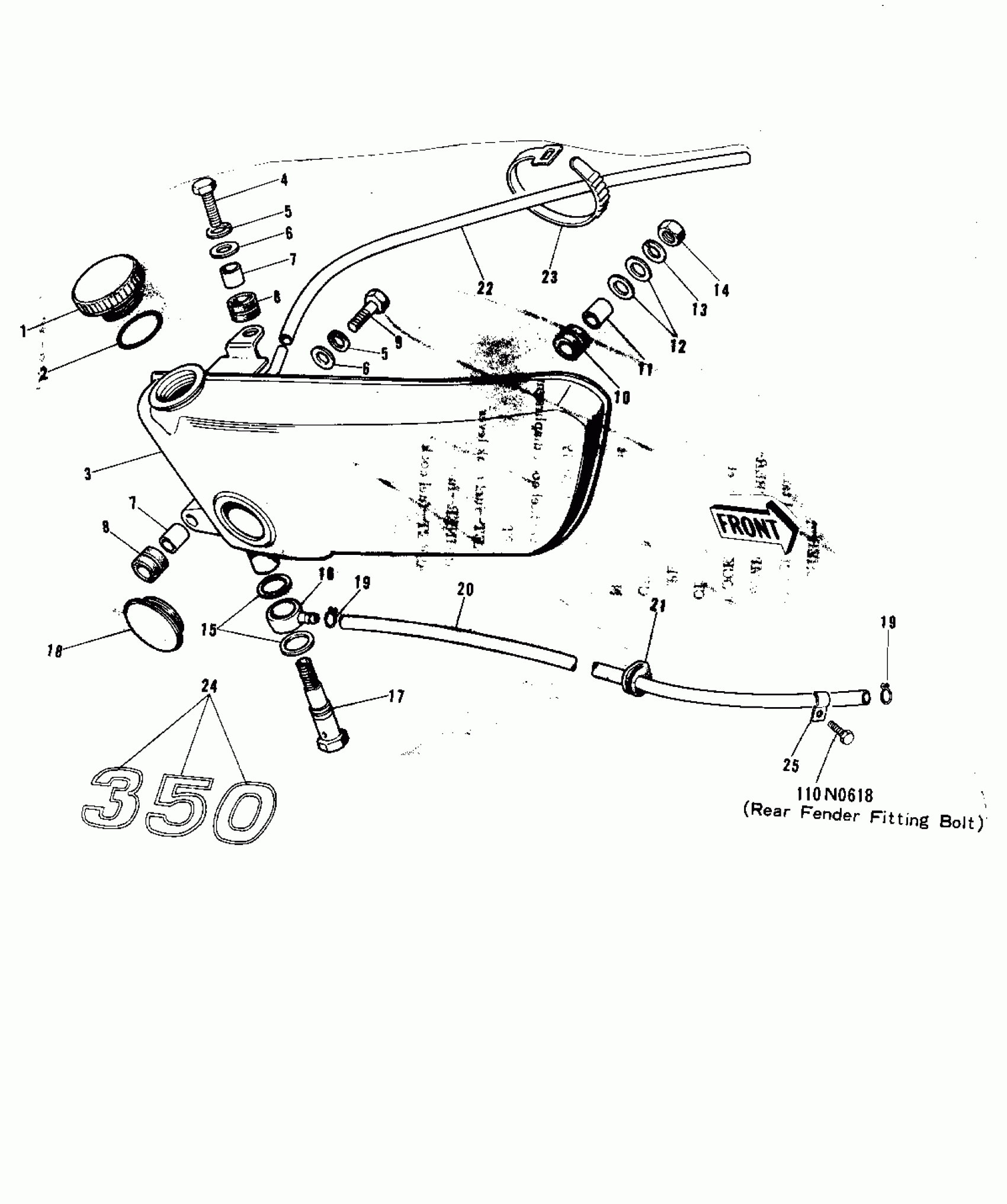

Kawasaki F9-C OIL TANK ('72-'73 F9/F9-A 350) Diagram

#

Description
Price

1

CAP OIL TANK

52003-009

Unavailable

2

"0" RING,36MM

670B3036

$0.97

3

TANK-OIL,L.GREEN

52001-020-70

$97.68

3

TANK,OIL,F.BLACK

52001-020-21

$111.37

4

BOLT-UPSET

112G0625

Unavailable

5

WASHER SPRING 6MM

461F0600

Unavailable

6

WASHER,6.5X20X1.6

92022-125

$1.25

7

COLLAR

92027-103

$2.78

8

DAMPER RUBBER

92075-051

$2.34

9

BOLT-UPSET

112G0618

Unavailable

10

DAMPER RUBBER-MUFFLER

18063-005

Unavailable

11

COLLAR

92027-102

$1.00

13

WASHER SPRING 8MM

461F0800

Unavailable

14

NUT,8MM

311B0800

Unavailable

15

GASKET,10,2X15X1.5T

11009-1146

Unavailable

16

CONNECTOR BANJO

92061-003

Unavailable

17

BOLT OIL TANK BANJO

92060-001

Unavailable

18

GAUGE OIL LEVEL

52015-001

Unavailable

19

CLAMP,TUBE

92037-010

$3.12

20

PIPE

92059-064

Unavailable

21

GROMMET-OIL PIPE

92071-041

Unavailable

22

TUBE-VINYL,5X540

700Q05540

Unavailable

23

BAND,L=123

92072-030

$3.97

24

EMBLEM-OIL TANK

56018-106

Unavailable

24

EMBLEM,OIL TANK

56018-132

Unavailable

25

CLAMP CABLE

92037-020

Unavailable
