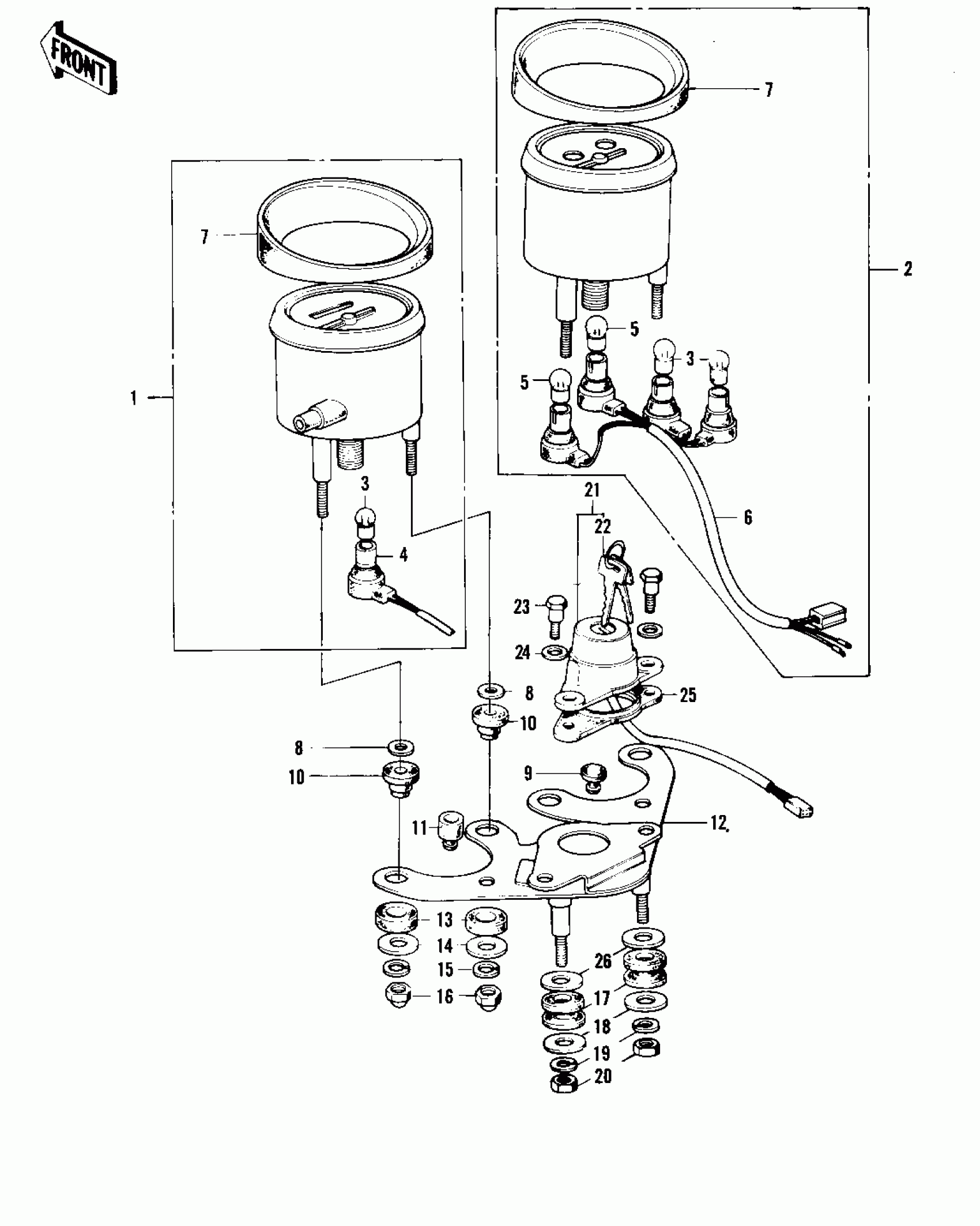

Kawasaki F9-C METERS/IGNITION SWITCH (F9-A) Diagram

#

Description
Price

1

SPEEDOMETER ASSY,MPH

25001-045

$224.63

1

UNAVAILABLE IN PRICE BOOK

25001-053

Unavailable

2

TACHOMETER ASSY

25015-020

$93.81

3

BULB,6V 3W,CLEAR

92069-053

$3.33

4

SOCKET-SPEEDOMETER

25011-015

Unavailable

5

BULB,6V 1.7W

92069-024

$3.80

6

SOCKET-TACHOMETER

25011-028

Unavailable

7

COVER-SPEEDOMETER

25012-003

$21.14

8

WASHER,8.5X20X1.6

92022-1561

$3.43

9

DAMPER RUBBER

92075-155

Unavailable

10

DAMPER RUBBER

92075-143

Unavailable

11

DAMPER

92075-035

$3.65

12

BRACKET METER

25008-015

$21.98

13

DAMPER RUBBER

92075-066

Unavailable

14

WASHER,5.2X18X1.2

92022-285

$7.75

14

WASHER,5.2X18X1.2

92022-285

$7.75

15

WASHER SPRING 5MM

461F0500

Unavailable

16

NUT-CAP,5MM

322N0500

Unavailable

17

DAMPER

92075-024

$3.49

18

WASHER,6.5X20X1.6

92022-125

$1.25

19

WASHER SPRING 6MM

461F0600

Unavailable

20

NUT 6MM

311B0600

Unavailable

21

SWITCH ASSY,IGNITION

27005-068

Unavailable

21

SWITCH ASSY,IGNITION

27005-068

Unavailable

22

KEY SET,#155

27008-042-55

$9.19

22

KEY SET,#156

27008-042-56

$9.14

22

KEY SET,#157

27008-042-57

$9.19

22

KEY SET,#158

27008-042-58

$9.49

22

KEY SET,#159

27008-042-59

$8.36

22

KEY SET,#160

27008-042-60

$8.03

22

KEY SET,#161

27008-042-61

$8.03

22

KEY SET,#162

27008-042-62

$8.54

22

KEY SET,#163

27008-042-63

$7.05

22

KEY SET,#164

27008-042-64

$8.54

23

BOLT-HEX HEAD,6MM

92007-026

Unavailable

24

WASHER PLAIN 8MM

410B0800

Unavailable

25

DAMPER RUBBER

92075-077

$8.83

26

WASHER PLAIN 8MM

411B0800

Unavailable
