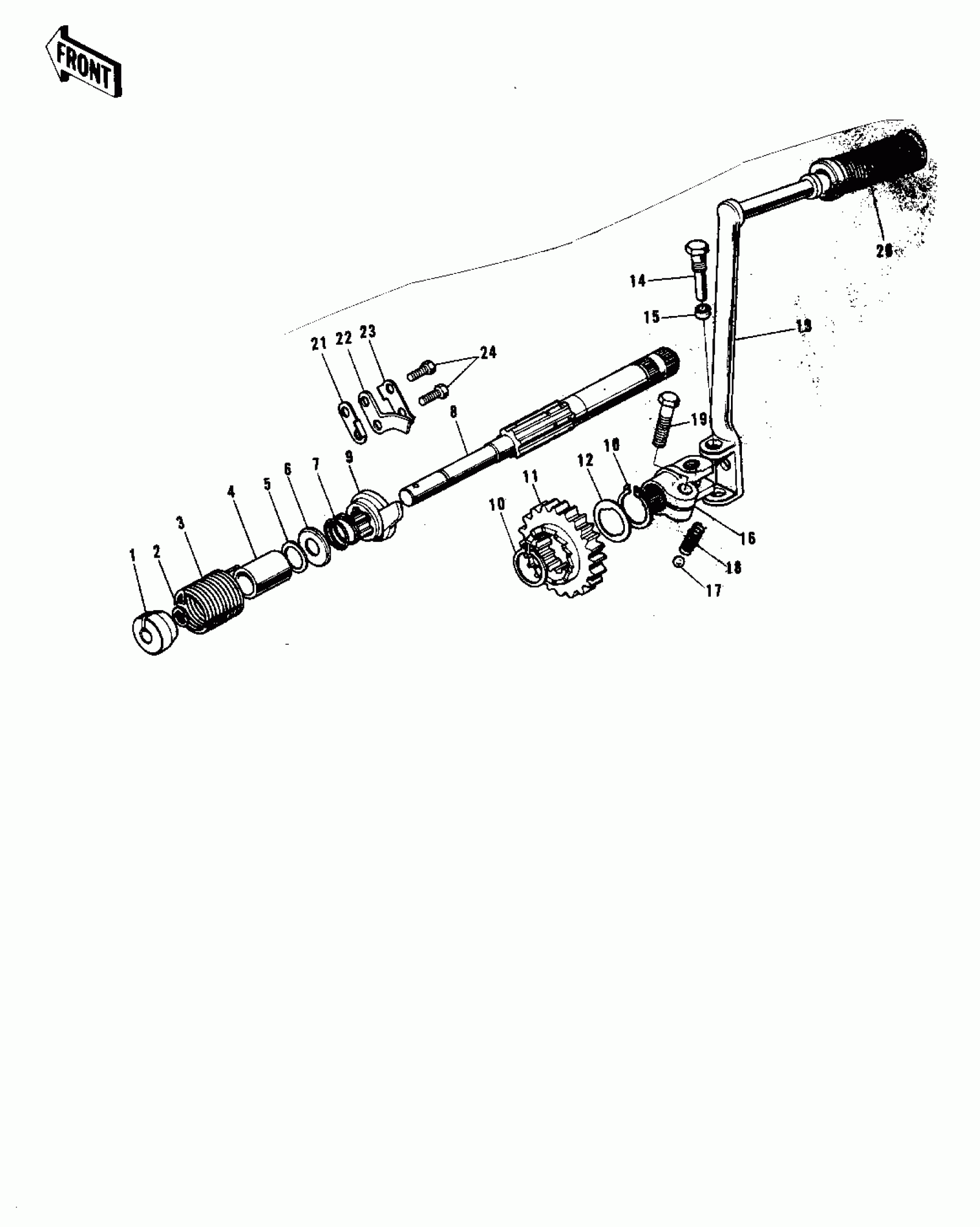

Kawasaki F9-C KICKSTARTER MECHANISM ('74-'75 F9-B/F9-C Diagram
#
Description
Price
1
GUIDE KICK SPRING
13070-001
Unavailable
2
CIRCLIP-TYPE-E,10MM
482J0100
Unavailable
3
SPRING KICKSTARTER
92082-002
Unavailable
4
COLLAR
92027-126
Unavailable
5
SHIM-KICK SHAFT,0.3T
92022-149
Unavailable
5
SHIM-KICK SHAFT,0.5T
92022-150
Unavailable
5
SHIM-KICK SHAFT,0.7T
92022-151
Unavailable
6
HOLDER-KICK GEAR
13077-003
Unavailable
7
SPRING
92081-093
Unavailable
8
SHAFT-KICKSTARTER
13066-026
Unavailable
9
RATCHET
13078-004
Unavailable
10
RING-SNAP,24MM
92033-026
Unavailable
11
GEAR-KICKSTARTER
13068-022
Unavailable
12
WASHER,TOOTHED,25.5X32X1
92024-033
Unavailable
13~18
PEDAL-KICKSTARTER
13058-027
Unavailable
14
BOLT-HEX HEAD,10MM
92001-085
Unavailable
15
COLLAR
92027-101
Unavailable
16
BOSS-KICK PEDAL
13061-008
Unavailable
17
BALL-STEEL,1/4
600A0800
Unavailable
18
SPRING,KICK PEDAL
92081-020
Unavailable
19
BOLT-HEX HEAD,10X25
114B1025
Unavailable
20
DAMPER,KICK PEDAL
13063-004
Unavailable
21
STOPPER-KICKSTARTER
13072-010
Unavailable
22
GUIDE-KICKSTARTER
13206-006
Unavailable
23
WASHER-KICK STOPPER
92031-006
Unavailable
24
BOLT-UPSET,6X16
112G0616
Unavailable
24
BOLT-UPSET,6X16
112G0616
Unavailable
