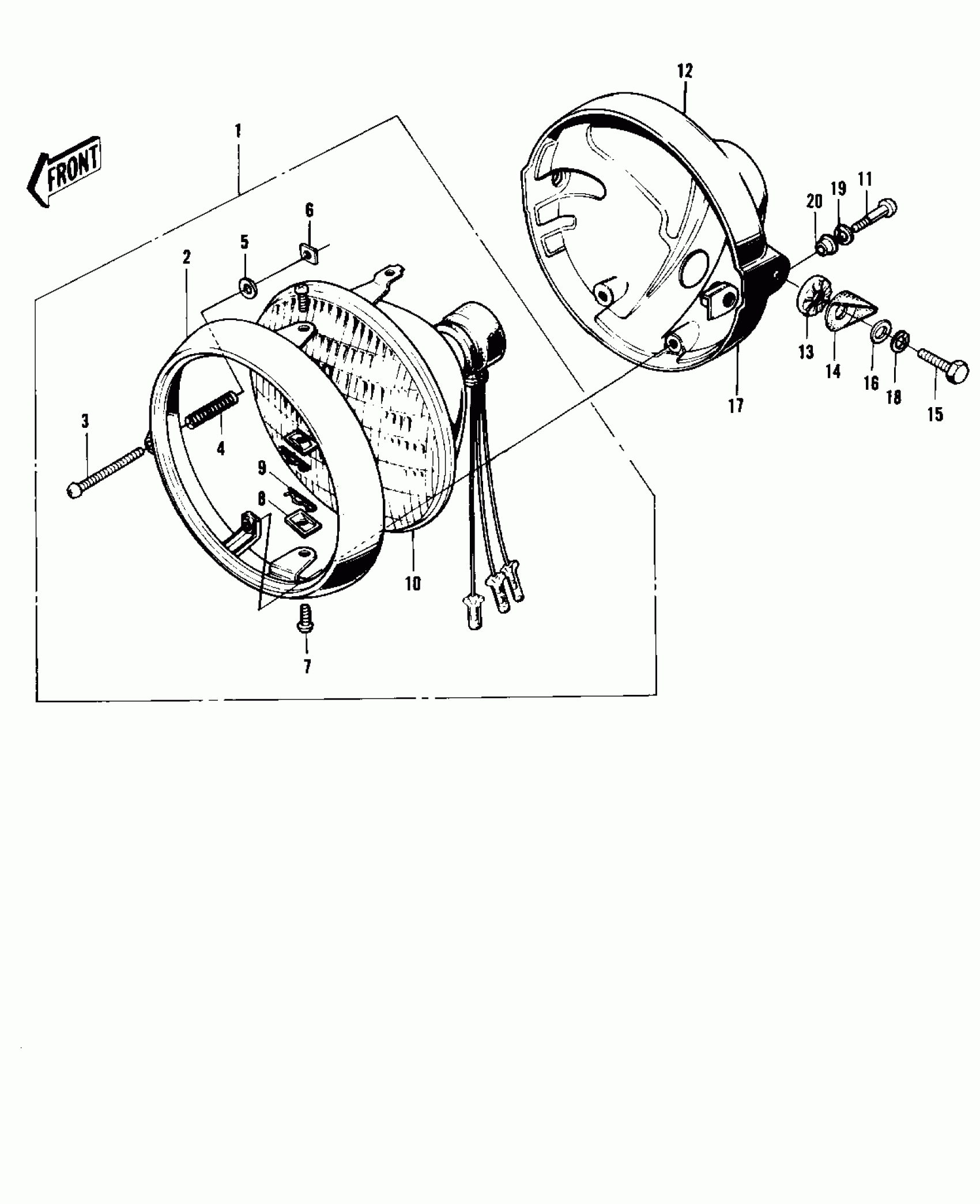

Kawasaki F9-C HEADLIGHT ('74-'75 F9-B/F9-C 350) Diagram

#

Description

Price

1

LAMP UNIT-HEAD

23003-015

Unavailable

2

RIM-HEAD LAMP

23006-028

Unavailable

3

SCREW,FOCUS ADJUSTING

23019-021

Unavailable

4

SPRING,FOCUS ADJUSTING

23014-005

Unavailable

5

WASHER,4.1X8X0.8

23021-004

Unavailable

6

NUT

23020-016

Unavailable

7

SCREW LENS UNIT FITT

23019-018

Unavailable

8

NUT LENS UNIT FITTING

23020-009

Unavailable

9

PIN LENS UNIT FITTING

23022-001

Unavailable

10

LENS UNIT-HEAD LAMP

23007-032

Unavailable

11

SCREW,5MM

92011-024

Unavailable

12

BODY-HEAD LAMP,BLACK

23005-034-10

Unavailable

13

WASHER-LOCK

23021-011

Unavailable

14

UNAVAILABLE IN PRICE BOOK

91075-134

Unavailable

15

BOLT,10X35

92007-024

Unavailable

16

WASHER-PLAIN,10MM

411D1000

Unavailable

17

NUT

23020-017

Unavailable

18

WASHER SPRING 10MM

461F1000

Unavailable

19

WASHER SPRING 5MM

461F0500

Unavailable

20

WASHER

23021-010

Unavailable
