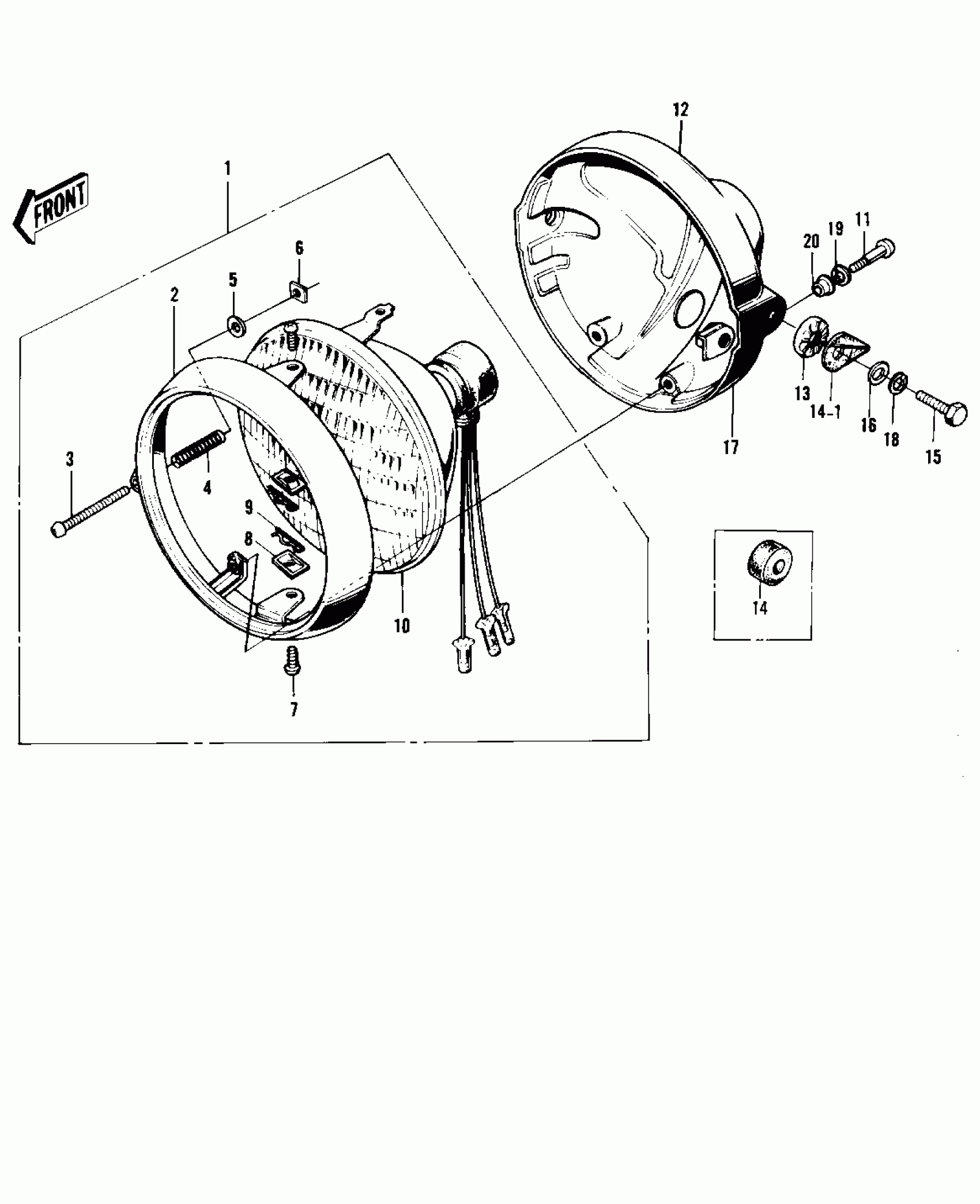

Kawasaki F9-C HEADLIGHT ('72-'73 F9/F9-A 350) Diagram
#
Description
Price
1
LAMP UNIT-HEAD
23003-015
Unavailable
2
RIM-HEAD LAMP
23006-028
Unavailable
3
SCREW,FOCUS ADJUSTING
23019-021
Unavailable
4
SPRING,FOCUS ADJUSTING
23014-005
Unavailable
5
WASHER,4.1X8X0.8
23021-004
Unavailable
6
NUT
23020-016
Unavailable
7
SCREW LENS UNIT FITT
23019-018
Unavailable
8
NUT LENS UNIT FITTING
23020-009
Unavailable
9
PIN LENS UNIT FITTING
23022-001
Unavailable
10
LENS UNIT-HEAD LAMP
23007-032
Unavailable
11
SCREW,5MM
92011-024
Unavailable
12
BODY-HEAD LAMP,BLACK
23005-034-10
Unavailable
13
WASHER-LOCK
23021-011
Unavailable
14
DAMPER RUBBER
92075-079
Unavailable
14-1
DAMPER RUBBER
92075-134
Unavailable
15
BOLT,10X35
92007-024
Unavailable
16
WASHER-PLAIN,10MM
411D1000
Unavailable
17
NUT
23020-017
Unavailable
18
WASHER SPRING 10MM
461F1000
Unavailable
19
WASHER SPRING 5MM
461F0500
Unavailable
20
WASHER
23021-010
Unavailable
