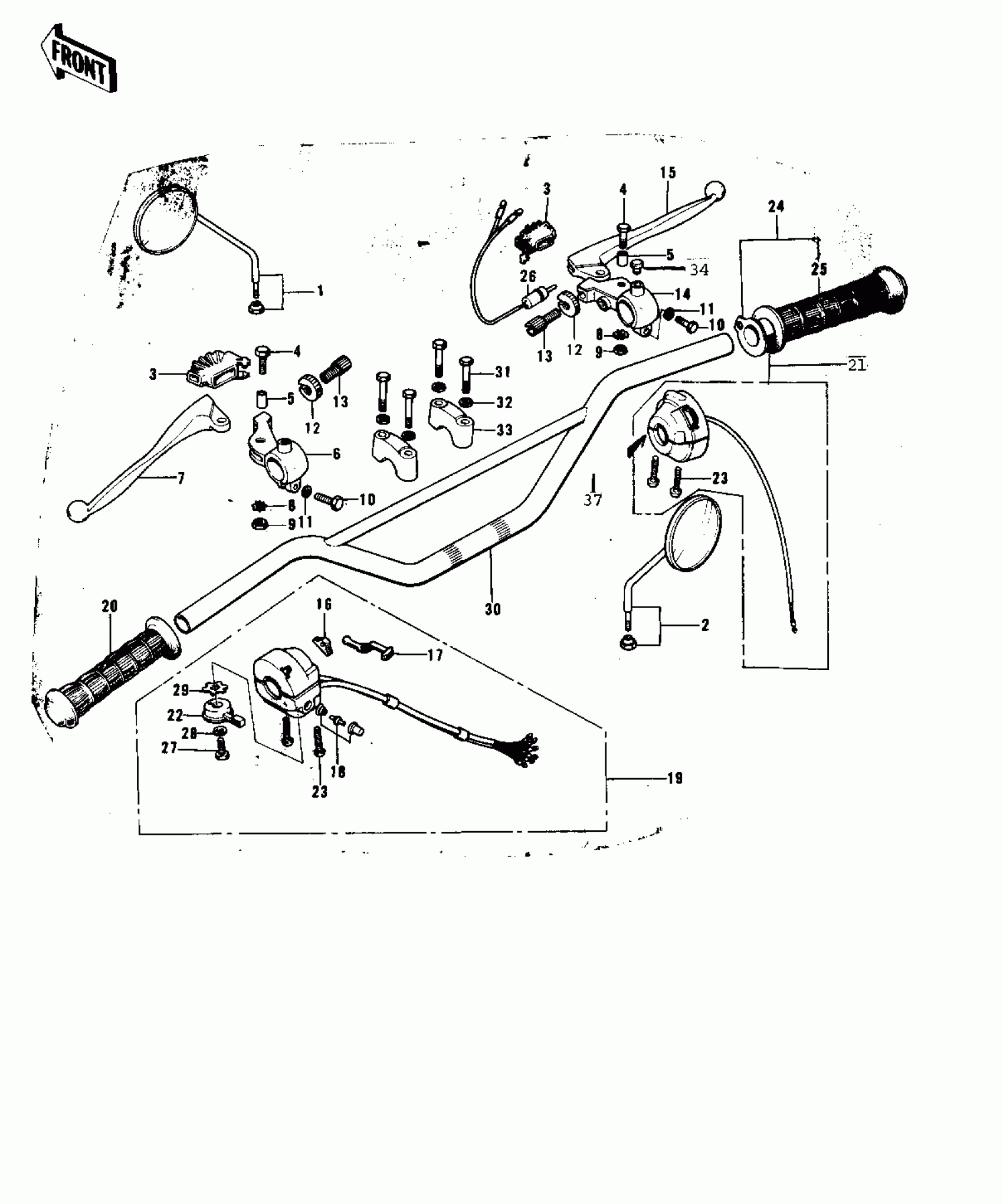

Kawasaki F9-C HANDLEBAR ('74-'75 F9-B/F9-C 350) Diagram
#
1
MIRROR-ASSY,LH
56003-009
Unavailable
1
MIRROR-ASSY,LH
56003-009
Unavailable
2
MIRROR-ASSY,RH
56002-020
Unavailable
2
MIRROR-ASSY,RH
56002-020
Unavailable
3
DUST COVER
46071-002
Unavailable
3
BOOT,LEVER HOLDER
49006-1017
Unavailable
3
BOOT,LEVER HOLDER
49006-1017
Unavailable
4
BOLT HEX HEAD 5X20
92007-020
Unavailable
4
BOLT,5X22
92007-046
Unavailable
5
COLLAR LEVER
46059-011
Unavailable
6
HOLDER,F.BLACK
46094-011-21
Unavailable
7
LEVER-GRIP,CLUTCH
46092-015
Unavailable
8
WASHER LOCK 5MM
464H0500
Unavailable
9
NUT-HEX,5MM
312B0500
Unavailable
9
NUT,LOCK,5MM
92019-014
Unavailable
10
BOLT-UPSET
112N0620
Unavailable
10
BOLT HEX HEAD 6X25
110N0625
Unavailable
11
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
12
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
13
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
14
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
Unavailable
15
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
16,35,
L.H GRIP SWITCH KIT
99990-531
Unavailable
16
KNOB-L.H SWITCH
46044-011
Unavailable
17
KNOB-SWITCH
46044-012
Unavailable
18
SWITCH ASSY LH BUTTON
46078-003
Unavailable
19
CASE ASSY,L.H F.BLAC
46091-036-21
Unavailable
19
CASE ASSY,L.H,BLACK
46091-037-21
Unavailable
20
RUBBER-L.H GRIP
46075-019
Unavailable
21
CASE ASSY-R.H,F.BLAC
46018-023-21
Unavailable
21
CASE ASSY,R.H,F.BLAC
46018-038-21
Unavailable
22
LEVER STARTER
46096-008-10
Unavailable
22
LEVER STARTER
46096-008-10
Unavailable
23
SCREW-PAN-CROS,5X25
220B0525
Unavailable
24
GRIP ASSY-THROTTLE
46019-022
Unavailable
25
RUBBER-R.H. GRIP
46061-013
Unavailable
26
SWITCH,FR BRAKE LAMP
27021-004
Unavailable
27
BOLT,6X10
112G0610
Unavailable
27
BOLT,6X10
112G0610
Unavailable
28
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
29
WASHER LOCK
92095-012
Unavailable
30
HANDLEBAR
46004-016
Unavailable
31
BOLT 8X38
92001-1405
Unavailable
32
WASHER SPRING 8MM
461F0800
Unavailable
33
HOLDER-HANDLE,UPP
46012-008
Unavailable
34
CAP-RR VIEW MIRROR
92102-009
Unavailable
35
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
36
SWITCH ASSY,L.H
46089-015
Unavailable
37
HOLDER,CONTROL CABLE
46037-023
Unavailable
