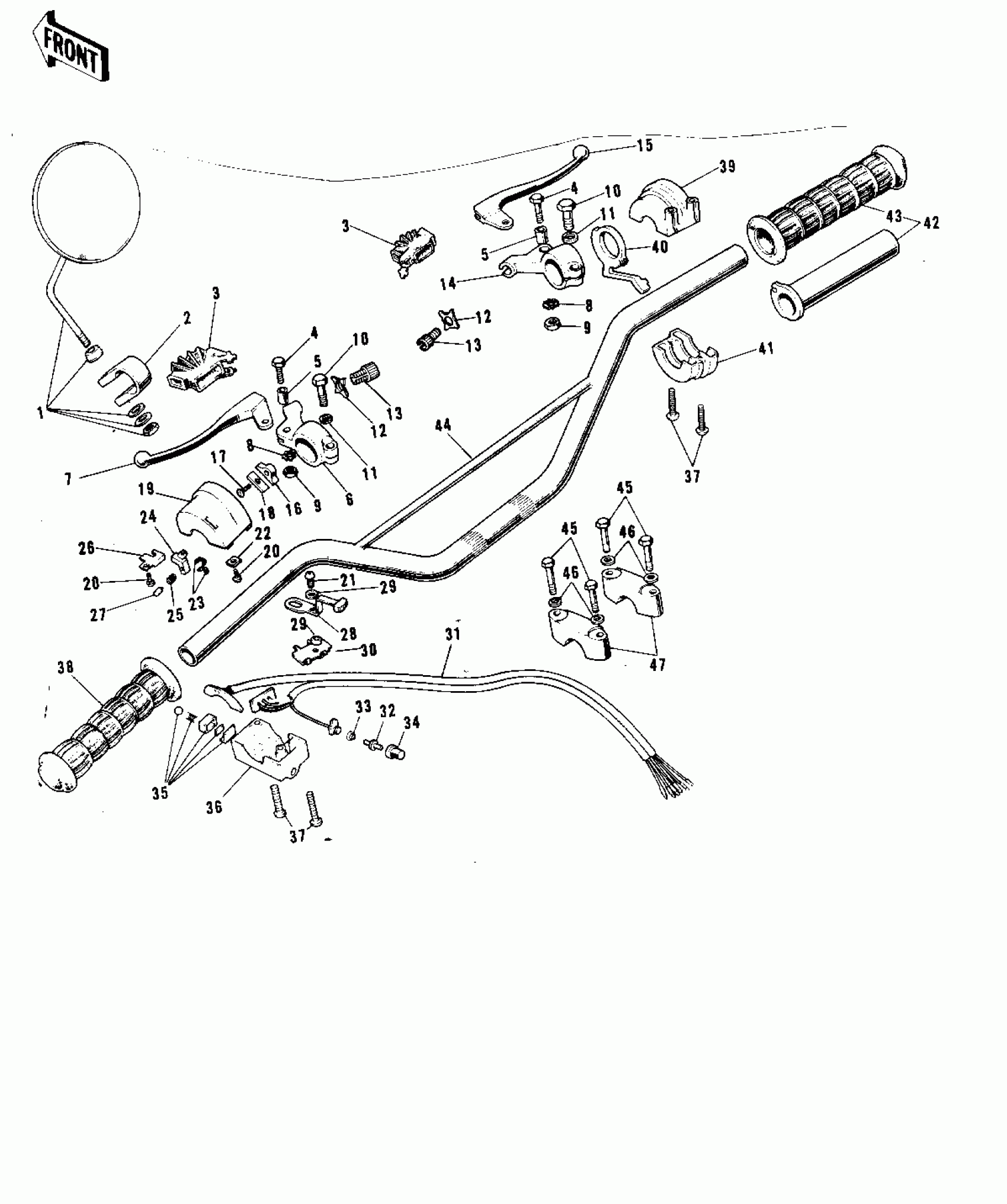

Kawasaki F9-C HANDLEBAR ('72-'73 F9/F9-A 350) Diagram
#
1
REAR VIEW MIRROR
56001-005
Unavailable
2
BRACKET
56006-001
Unavailable
3~13
LEVER ASSY-CLUTCH
46076-014
Unavailable
3~13
LEVER ASSY,CLUTCH
46076-024
Unavailable
3
DUST COVER
46071-001
Unavailable
4
BOLT HEX HEAD 5X20
92007-020
Unavailable
5
COLLAR LEVER
46059-011
Unavailable
6
HOLDER,CLUTCH LEVER
46094-010
Unavailable
6
HOLDER,CLUTCH LEVER
46094-010
Unavailable
7
LEVER-GRIP,CLUTCH
46092-015
Unavailable
7
LEVER-GRIP,CLUTCH
46092-015
Unavailable
8
WASHER LOCK 5MM
464H0500
Unavailable
9
NUT-HEX,5MM
312B0500
Unavailable
10
BOLT-UPSET
112N0620
Unavailable
11
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
12
NUT LOCK ADJUST SCREW
46056-001
Unavailable
13
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
3~6
LEVER ASSY-FRNT BRAKE
46021-010
Unavailable
8~15
LEVER ASSY,FRNT BRAK
46021-016
Unavailable
14
HOLDER-FR BRAKE LEVER
46060-006
Unavailable
14
HOLDER,FR BRAKE LEVER
46060-008
Unavailable
15
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
15
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
16~37
CASE ASSY-L.H
46091-004
Unavailable
16~37
CASE ASSY,L.H
46091-016
Unavailable
16
KNOB-L.H SWITCH
46044-011
Unavailable
17
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
18
SPRING L.H SW KNOB
46031-003
Unavailable
19
CASE L.H SWITCH UPPER
46086-013
Unavailable
20
SCREW PAN HEAD 3X5
220B0305A
Unavailable
21
SCREW-PAN-CROS,3X8
220B0308
Unavailable
22
HOLDER L.H SW UPPER A
46085-013
Unavailable
23
PLATE L.H SW CONTACT
46080-002
Unavailable
24
SWITCH L.H
46089-003
Unavailable
25
SPRING L.H SWITCH
46031-004
Unavailable
26
HOLDER L.H SW LOWER B
46085-014
Unavailable
27
CONTACT L.H SWITCH
46079-002
Unavailable
28
KNOB-SWITCH
46044-006
Unavailable
29
WASHER
92095-010
Unavailable
30
HOLDER L.H SW LOWER
46085-015
Unavailable
31
WIRING HARNESS-L.H SW
46082-017
Unavailable
31
WIRING HARNESS,L.H S
46082-026
Unavailable
32
SWITCH,PUSH BUTTON
27010-1009
Unavailable
33
SWITCH,PUSH BUTTON
27010-1009
Unavailable
34
SWITCH,PUSH BUTTON
27010-1009
Unavailable
35
SLIDE BLOCK AY-L.H SW
46089-004
Unavailable
36
CASE L.H SWITCH LOWER
46077-015
Unavailable
37
SCREW PAN HEAD 5X22
220B0522
Unavailable
38
RUBBER-L.H GRIP
46075-017
Unavailable
37,39~
CASE ASSY-R.H
46018-019
Unavailable
39
CASE-R.H.UPPER
46041-005
Unavailable
40
LEVER-STARTER
46096-006
Unavailable
41
CASE-R.H LOWER
46023-005
Unavailable
42
GRIP ASSY-THROTTLE
46019-018
Unavailable
43
RUBBER-R.H GRIP
46061-012
Unavailable
44
HANDLEBAR
46004-016
Unavailable
45
BOLT 8X38
92001-1405
Unavailable
46
WASHER SPRING 8MM
461F0800
Unavailable
47
HOLDER-HANDLE,UPP
46012-008
Unavailable
