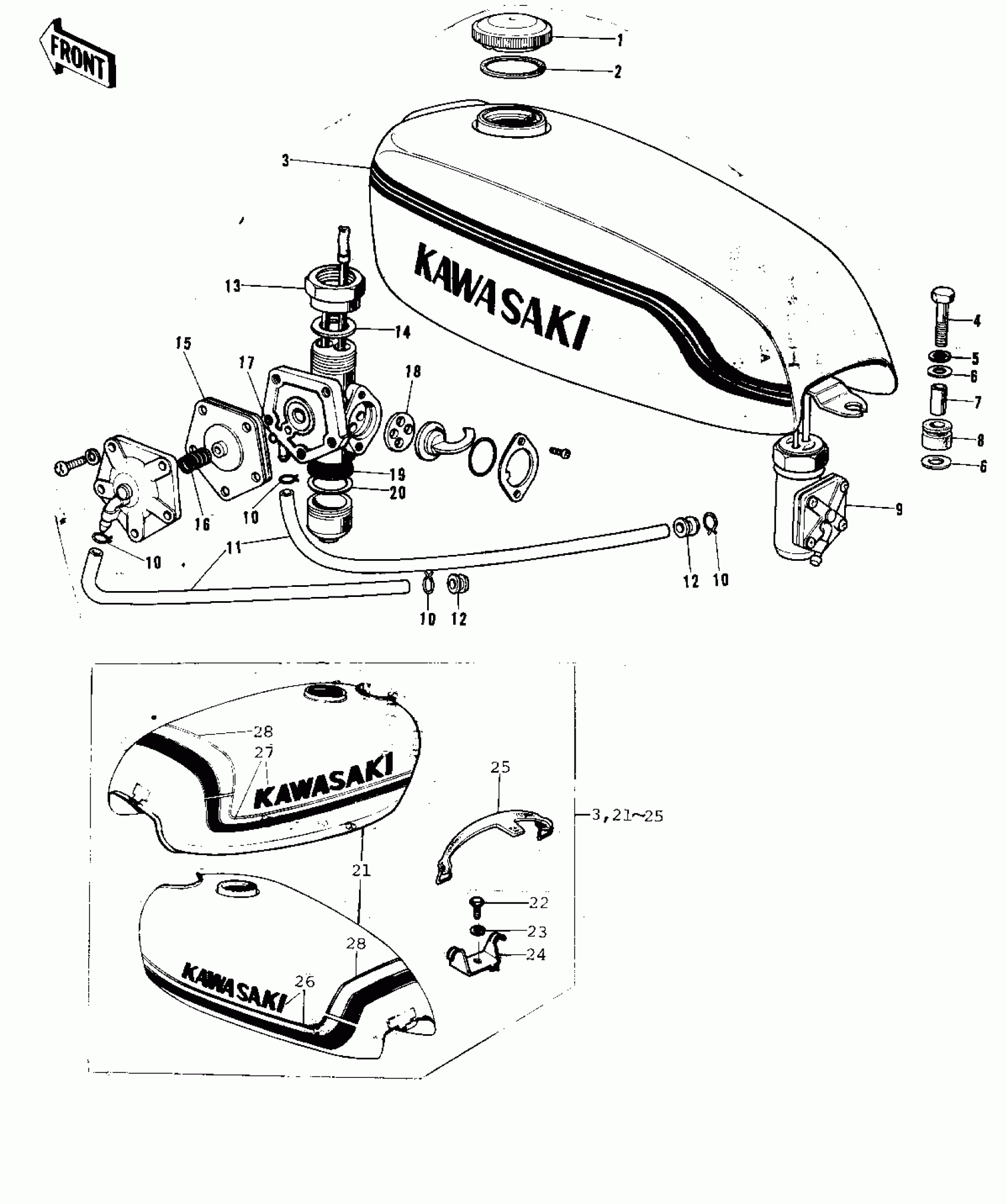

Kawasaki F9-C FUEL TANK (F9) Diagram
#
Description
Price
1
CAP FUEL TANK
51049-008
Unavailable
2
GASKET-FUEL TANK CAP
51059-007
Unavailable
3
FUEL TANK,L.GREEN
51001-055-70
Unavailable
3,21~2
TANK,FUEL,L.GREEN
51002-010-90
Unavailable
4
BOLT,FLANGED,8X35
92001-1577
Unavailable
5
WASHER SPRING 8MM
461F0800
Unavailable
6
WASHER FUEL TANK FIT
92022-035
Unavailable
7
COLLAR,8.8X12X17
92027-034
Unavailable
8
DAMPER RUBB TANK REAR
92075-030
Unavailable
9
COCK ASSY,FUEL
51023-048
Unavailable
10
CLAMP,TUBE
92037-010
Unavailable
11
PIPE-OIL
92059-072
Unavailable
12
GROMMET,PIPE
92071-038
Unavailable
13
FUEL COCK JOINT NUT
51035-008
Unavailable
14
GASKET-FUEL COCK JONT
92065-066
Unavailable
15
DIAPHRAGM ASSY
51069-002
Unavailable
16
SPRING-DIAPHRAGM
92081-072
Unavailable
17
GASKET
92065-052
Unavailable
18
GASKET-FUEL COCK LEV
92065-065
Unavailable
19
STRAINER FUEL
51038-006
Unavailable
20
GASKET FUEL COCK CUP
51037-009
Unavailable
21
TANK,FUEL,L.GREEN
51001-078-90
Unavailable
22
BOLT-SMALL-UPSET,8X18
115G0818
Unavailable
23
WASHER SPRING 8MM
461F0800
Unavailable
24
BRACKET,FUEL TANK
32052-046
Unavailable
25
BAND,FUEL TANK
92072-049
Unavailable
26
DECAL,L.H FUEL TANK
56013-050
Unavailable
27
DECAL,R.H FUEL TANK
56014-040
Unavailable
28
DECAL,TOP FUEL TANK
56027-120
Unavailable
