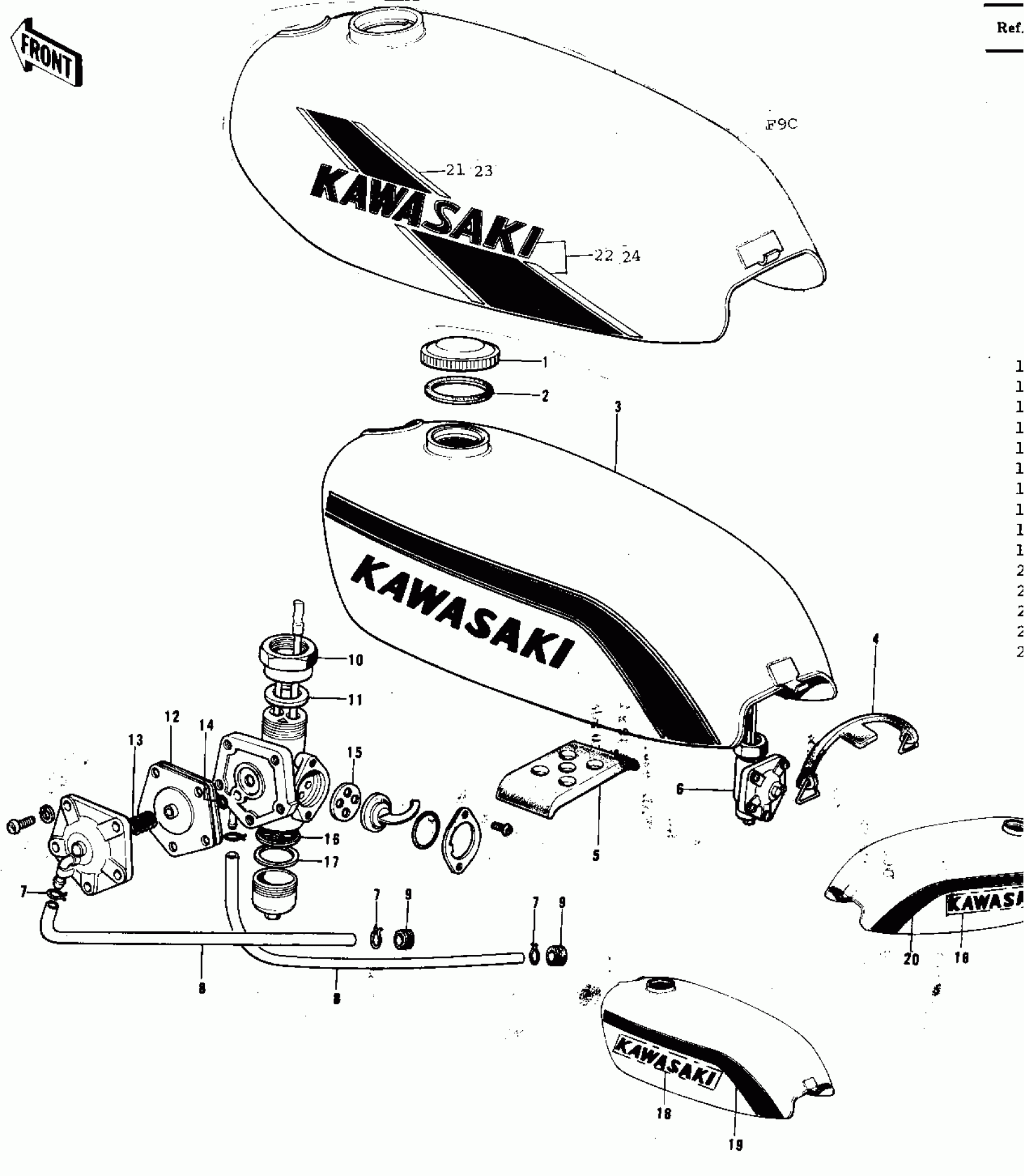

Kawasaki F9-C FUEL TANK Diagram
#
Description
Price
1
CAP,FUEL TANK
51048-1013
Unavailable
1
CAP,FUEL TANK
51048-1013
Unavailable
2
GASKET,FUEL TANK CAP
51059-011
Unavailable
3
TANK-FUEL,C.GOLD
51001-092-1V
Unavailable
3
TANK-FUEL,M.SILVER
51001-092-1W
Unavailable
4
BAND,FUEL TANK
92072-049
Unavailable
5
DAMPER RUBBER,FL TANK
92075-227
Unavailable
6
COCK ASSY,FUEL
51023-048
Unavailable
6
COCK ASSY,FUEL
51023-048
Unavailable
7
CLAMP,TUBE
92037-010
Unavailable
8
PIPE-OIL
92059-072
Unavailable
9
GROMMET,PIPE
92071-038
Unavailable
10
FUEL COCK JOINT NUT
51035-008
Unavailable
11
GASKET-FUEL COCK JONT
92065-066
Unavailable
12
DIAPHRAGM ASSY
51069-002
Unavailable
13
SPRING-DIAPHRAGM
92081-072
Unavailable
14
GASKET
92065-052
Unavailable
15
GASKET-FUEL COCK LEV
92065-065
Unavailable
16
STRAINER FUEL
51038-006
Unavailable
17
GASKET FUEL COCK CUP
51037-009
Unavailable
18
DECAL-FUEL TANK
56013-051
Unavailable
19
DECAL,FUEL TANK,L.H
56027-173
Unavailable
20
DECAL,FUEL TANK,R.H
56027-174
Unavailable
20
DECAL,FUEL TANK,R.H
56027-174
Unavailable
21
DECAL,L.H FL TK,UPPE
56027-286-SP
Unavailable
21
DECAL,L.H FL TK,UPPE
56027-286-SP
Unavailable
22
DECAL,L.H FL TK,LOWE
56027-287-SP
Unavailable
22
DECAL,L.H FL TK,LOWE
56027-287-SP
Unavailable
23
DECAL,R.H FL TK,UPPE
56027-288-SP
Unavailable
23
DECAL,R.H FL TK,UPPE
56027-288-SP
Unavailable
24
DECAL,R.H FL TK,LOWE
56027-289-SP
Unavailable
24
DECAL,R.H FL TK,LOWE
56027-289-SP
Unavailable
