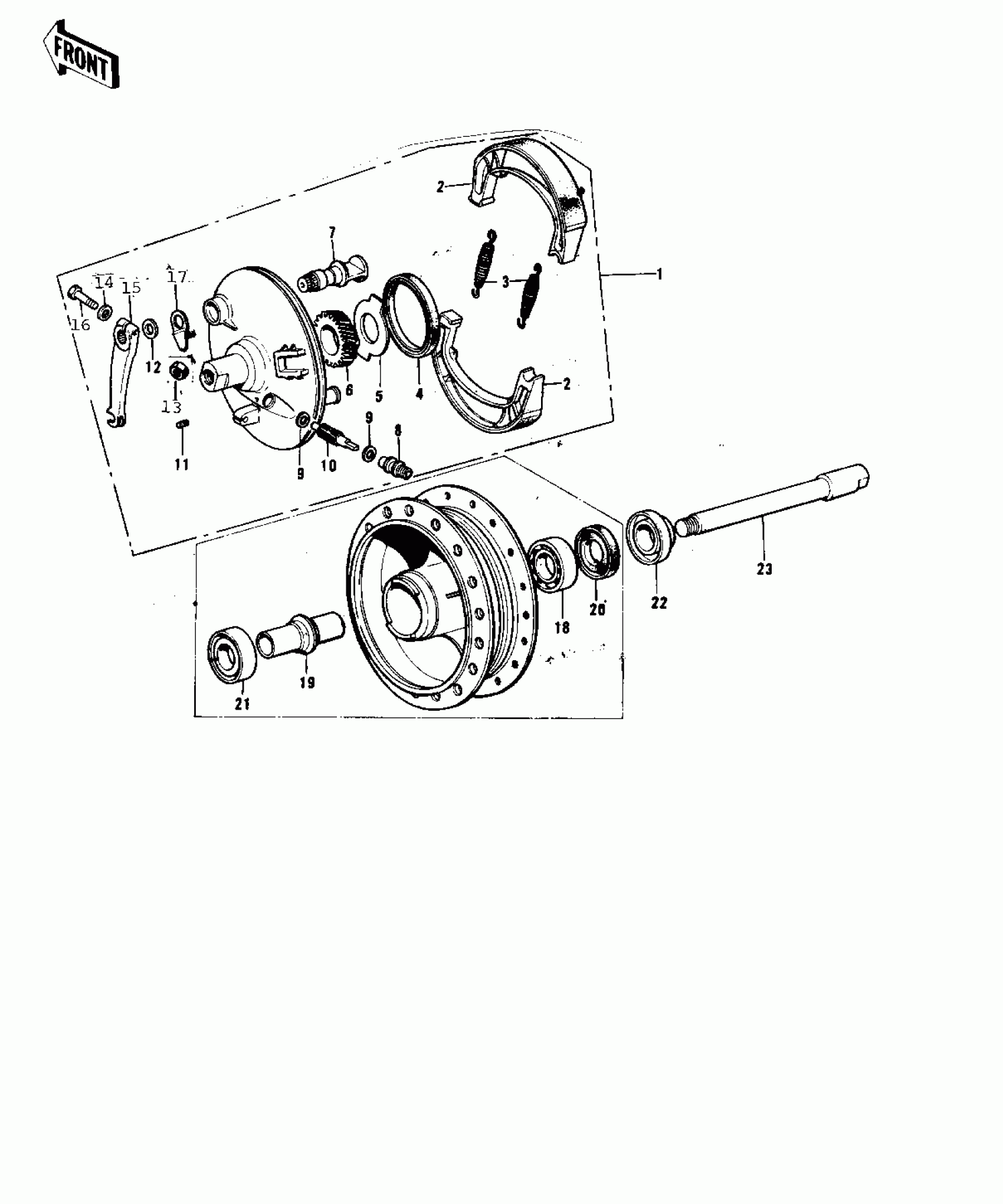

Kawasaki F9-C FRONT HUB/BRAKE ('74-'75 F9-B/F9-C 350) Diagram

#

Description
Price

1~16

PANEL-ASY,FR BRK BUF

41035-045-80

$231.38

2

SHOE,BRAKE

42019-011

$38.11

2

SHOE,BRAKE

42019-011

$38.11

3

SPRING,BRAKE SHOE

42020-004

$6.75

4

OIL SEAL F BRK PANEL

92050-010

$20.51

5

RECIEVER GEAR

41064-003

Unavailable

6

GEAR-SPEEDOMETER

41059-011

Unavailable

7

CAM SHAFT,REAR BRAKE

42026-021

Unavailable

7

CAM SHAFT,FRONT BRAK

41050-015

$13.81

8

BUSH SPEEDMETER CABLE

41062-001

$10.00

8

BUSHING,SPEEDOMETER CABLE

41062-005

$18.66

9

WASHER,5.1X9X0.4

41063-001

$4.17

10

PINION-SPEEDOMETER

41060-010

$15.15

11

SCREW-BUSHING NET

41070-004

$0.76

11

PIN,SPRING

41082-001

$3.53

12

SEAL,BRAKE CAM

41051-001

$3.39

13

NUT 6MM

311B0600

Unavailable

14

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

15

LEVER,REAR BRAKE CAM

42029-037

Unavailable

15

LEVER-BRAKE CAM

41053-017

$24.19

16

BOLT 6X35

110R0635

Unavailable

16

BOLT-UPSET,6X35

112G0635

Unavailable

16

BOLT-UPSET

112G0625

Unavailable

17

INDICATOR

41085-005

$12.36

18~21

DRUM-ASSY,FR BRK

41034-022

$182.93

18~21

DRUM-ASSY,FR BRK,BUF

41034-023-80

$162.64

18

BEARING BALL #6202Z

601B6202Z

Unavailable

19

SPACER FR HUB BEARING

41039-004

$9.29

19

SPACER-FRONT HUB BER

41039-020

$4.29

20

BEARING-BALL,#6202C3

601B6202

$6.86

21

OIL SEAL RR BRK DRUM

92050-008

Unavailable

22

COLLAR FRONT HUB R.H

41069-004

$5.37

22

COLLAR-FRONT AXLE

41069-019

$6.36

23

AXLE-FRONT

41068-029

$23.98

23

AXLE-FRONT

41068-037

$21.20

24

TORQUE LINK-FRNT BRK

43007-022

Unavailable

25

WASHER-LOCK

92088-012

Unavailable

26

BOLT-HEA HEAD,8X20

92001-086

Unavailable
