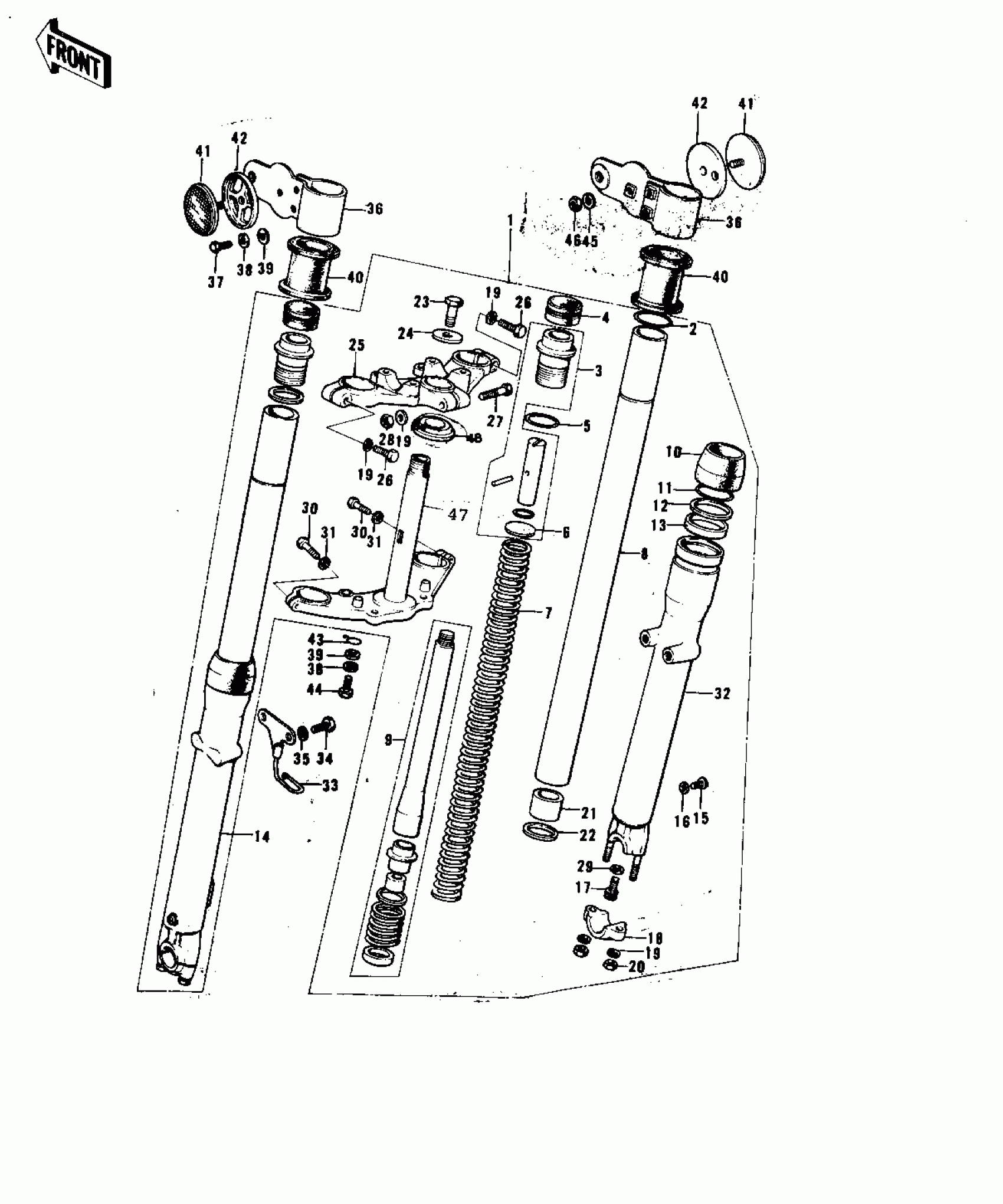

Kawasaki F9-C FRONT FORK ('74-'75 F9-B/F9-C 350) Diagram

#

Description
Price

1

FORK-FRONT

44001-127

$837.50

2

CIRCLIP

44044-009

Unavailable

3

BOLT,FORK TOP

44041-047

$36.07

4

CAP-FORK TOP BOLT

44062-004

Unavailable

5

'O' RING FORK TOP

44046-015

Unavailable

6

WASHER-FORK SPRG SEA

44029-015

$0.73

7

SPRING-FORK

44026-028

$28.59

8

TUBE-FORK INNER

44013-022

Unavailable

9

CYLINDER-FORK

44022-009

$96.97

10

DUST SHIELD-FORK

44010-019

Unavailable

11

CIRCLIP OIL SEAL FIT

44044-005

Unavailable

12

WASHER OIL SEAL FIT

44043-023

Unavailable

13

OIL SEAL,FORK

44009-011

$61.69

13

OIL SEAL,FORK

44009-020

$61.69

14

TUBE,LH,FORK OUTER

44005-053

$184.13

15

SCREW

44041-062

$2.75

16

GASKET,FORK DRAIN PLUG

44045-002

$4.12

17

BOLT,SOCKET,FORK CYLINDER

44041-040

$5.21

18

HOLDER,FRONT AXLE

44063-007

Unavailable

19

WASHER SPRING 8MM

461F0800

Unavailable

20

NUT,8MM

311B0800

Unavailable

21

PISTON FORK

44018-003

$13.81

22

CIRCLIP FORK PISTON

44044-008

$9.36

23

BOLT STRNG STEM HEAD

44041-007

Unavailable

24

WASHER STRNG STEM HD

44043-016

$10.56

25

HEAD,STEERING STEM

44039-060

$155.38

26

BOLT-STEERING STEM HD

44041-044

Unavailable

27

BOLT-STEERING STEM HD

44041-042

Unavailable

28

NUT,LOCK,8MM

92015-1124

$4.30

29

GASKET FORK CYL BOLT

44045-030

Unavailable

30

BOLT-HEX HEAD,12X36

92003-064

$24.03

31

WASHER-SPRING,12MM

461F1200

Unavailable

32

TUBE,RH,FORK OUTER

44006-051

$200.46

33

GUIDE-CABLE

54030-007

Unavailable

34

BOLT SMALL

114G0812

Unavailable

34

BOLT SMALL

114G0812

Unavailable

35

WASHER SPRING 8MM

461F0800

Unavailable

36

BRACKET-HEAD LAMP,BL

23064-010-21

$9.80

37

BOLT-HEX HEAD,6X18

92007-027

Unavailable

38

WASHER SPRING 6MM

461F0600

Unavailable

39

WASHER PLAIN 6MM

411B0600

Unavailable

40

DAMPER RUBBER

92075-059

Unavailable

41

REFLECTOR-REFLEX,FRNT

28012-006

Unavailable

42

DAMPER RUBBER

92075-137

Unavailable

43

CLAMP

92037-083

Unavailable

44

BOLT-UPSET 6X14

112B0614

Unavailable

45

WASHER SPRING 5MM

461F0500

Unavailable

46

NUT-HEX

311B0500

$0.51

47

STEM,STEERING

44037-055

$134.82

48

RACE,STEERING STEM BEARING

92047-010

Unavailable
